UHF Female to UHF Female Adapter
TECHNICAL DATA SHEET
UHF Female to UHF Female Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
UHF Female
50 Ohms
UHF Female
50 Ohms
Standard
Straight
PE9094
Electrical Specifications
Frequency Range, MHz
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 300
1.3:1
500
1,500
Mechanical Specifications
Temperature
Operating Range,deg C

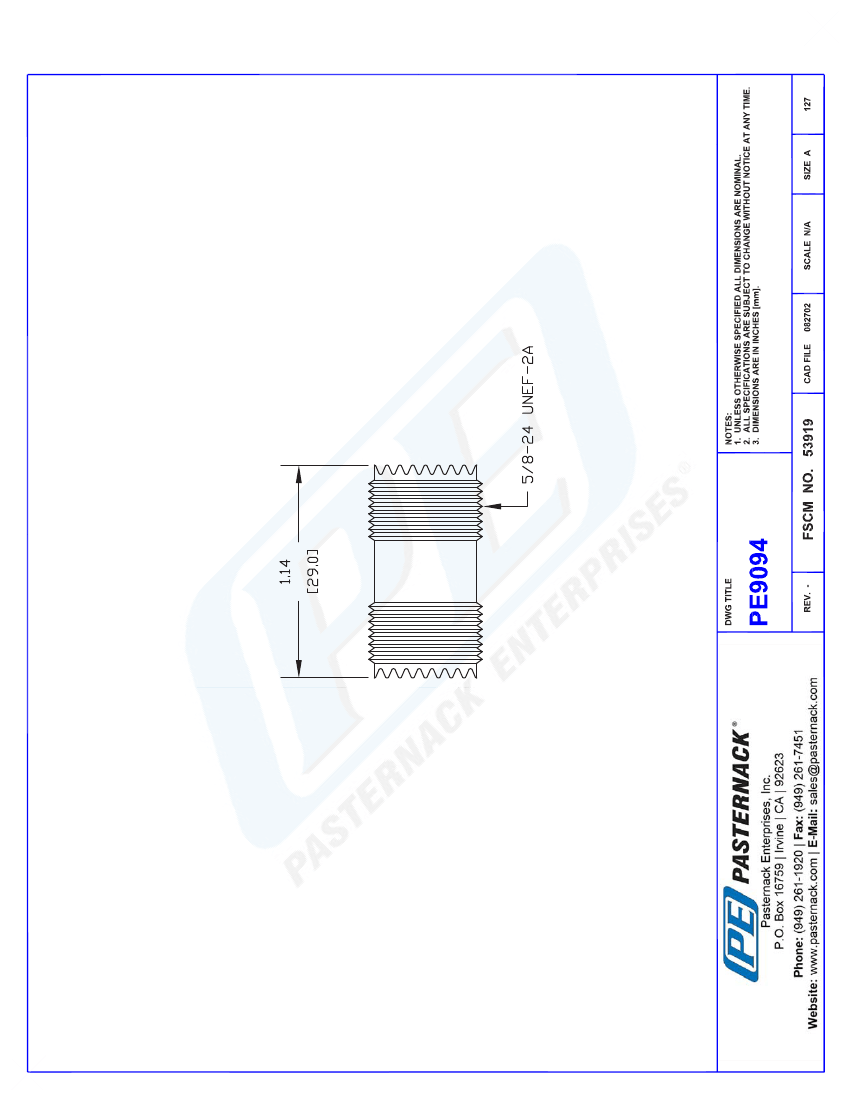

Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +85
1.14 [28.96]
0.625 [15.88]
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Body Plating Specification
Dielectric Type
UHF Female
Brass, Gold
Brass, Nickel
100µ in. minimum
Teflon
UHF Female
Brass, Gold
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
UHF Female to UHF Female Adapter PE9094
PE9094 REV
1
UHF Female to UHF Female Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/uhf-female-uhf-female-straight-adapter-pe9094-p.aspx
PE9094
UHF Female to UHF Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9094 REV
2
