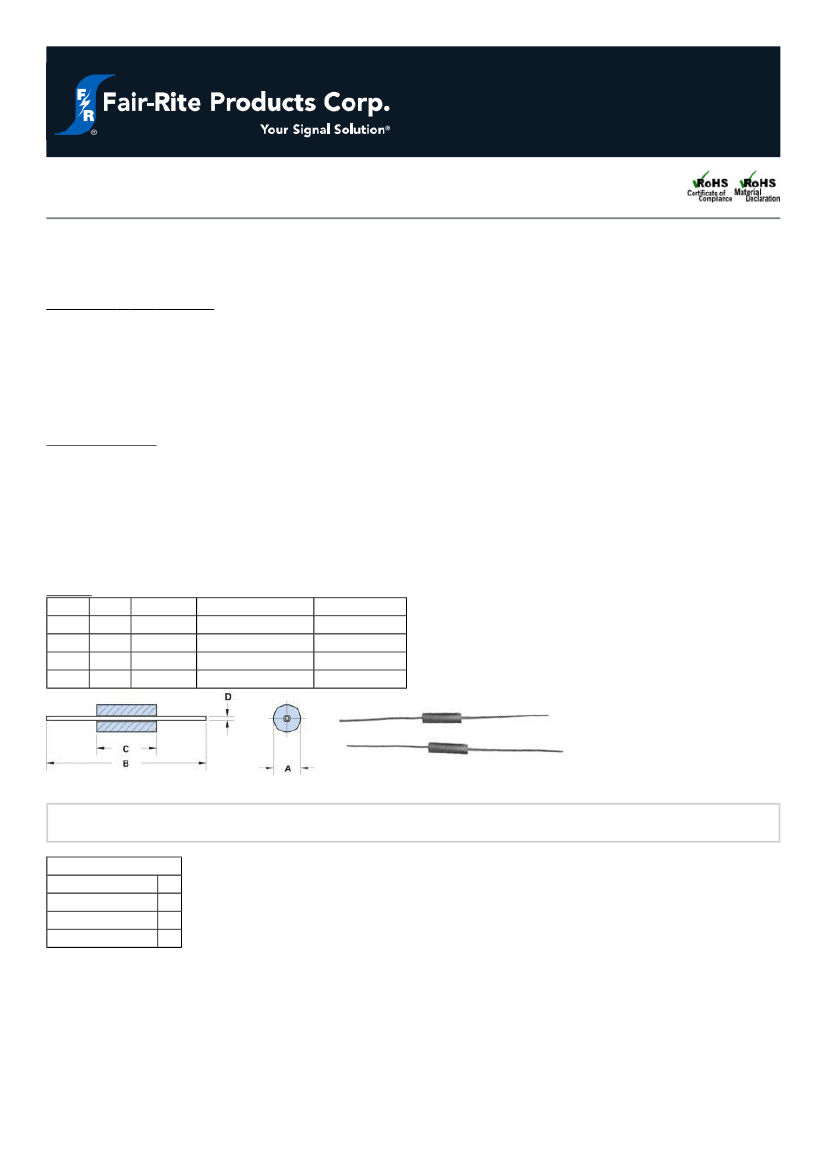

Beads- on- Leads (2773004111)
Part Number: 2773004111
73 BEAD ON LEAD
Explanation of Part Numbers:
– Digits 1 & 2 = Product Class
– Digits 3 & 4 = Material Grade
– Last digit 1 = Bulk Packed 2 = Taped and Reeled
Ferrite suppression beads are supplied assembled on tinned copper wire for automated circuit board assembly.
– Wires are oxygen free high conductivity copper with 100% matte tin plating over a nickel undercoating. The resistance of the
wire is 3.5 mOhm for the 22 AWG and 2.2 mOhm for the 20 AWG wire.
Packaging Options:
– Beads- on- leads can be supplied bulk packed. The last digit of bulk packed parts is a “1”. Parts with a “2” as the last digit of
the part number are supplied taped and reeled per IEC 60286-1 and EIA RS-296- F standards. Taped and reeled parts are supplied
4500 pieces on a 14″ reel. Taping details: Component pitch 5 mm. Inside tape spacing 52.5 mm. Tape width 6 mm.
– Our “Bead- on- Lead Suppression Kit” (part number 0199000028) is available for prototype evaluation.
For any bead- on lead requirement not listed here, feel free to contact our customer service group for availability and
pricing.
Weight: 0.5 (g)
Dim mm mm tol
A
3.5
±0.25
B
62
±1.50
C
7.6
±0.30
D
0.65 _
nominal inch
0.138
2.44
0.3
0
inch misc.
_
_
_
22 AWG

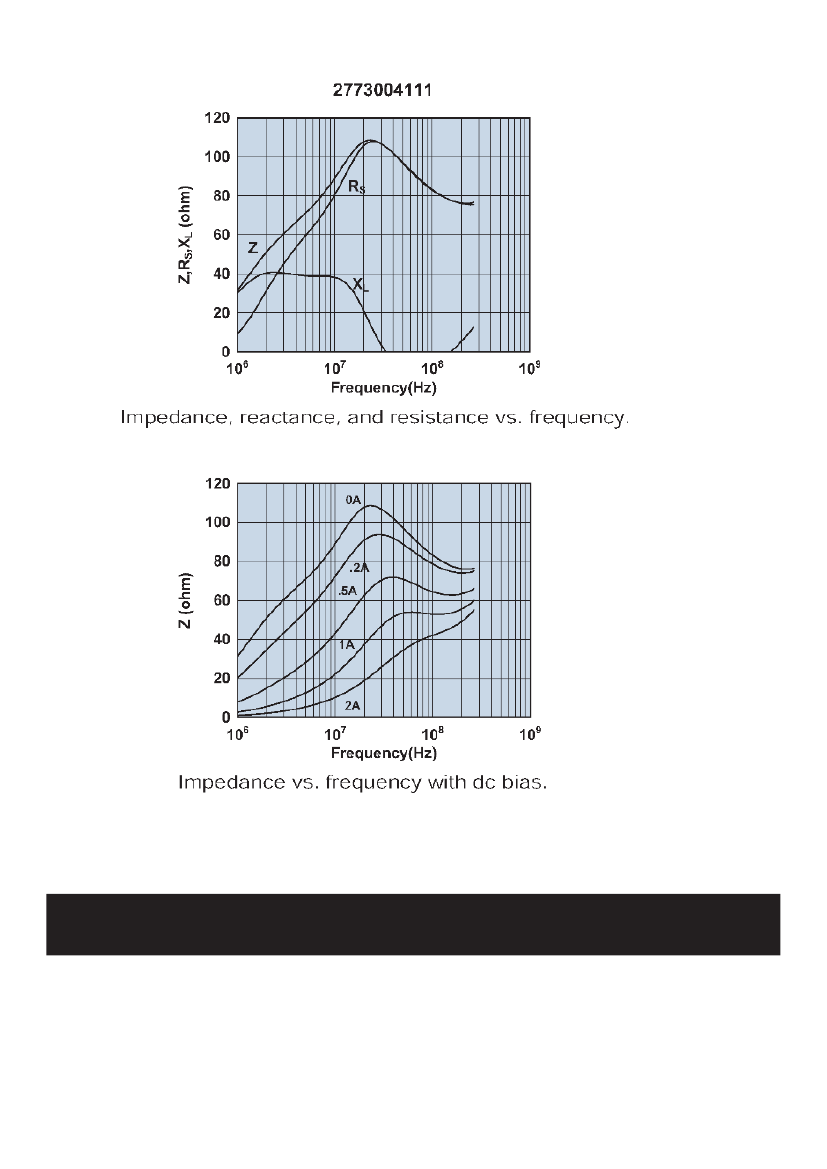

Chart Legend
+ Test frequency
Typical Impedance (Ω)
1 MHz
30
5 MHz
69
+
10 MHz
80
+
25 MHz
100
