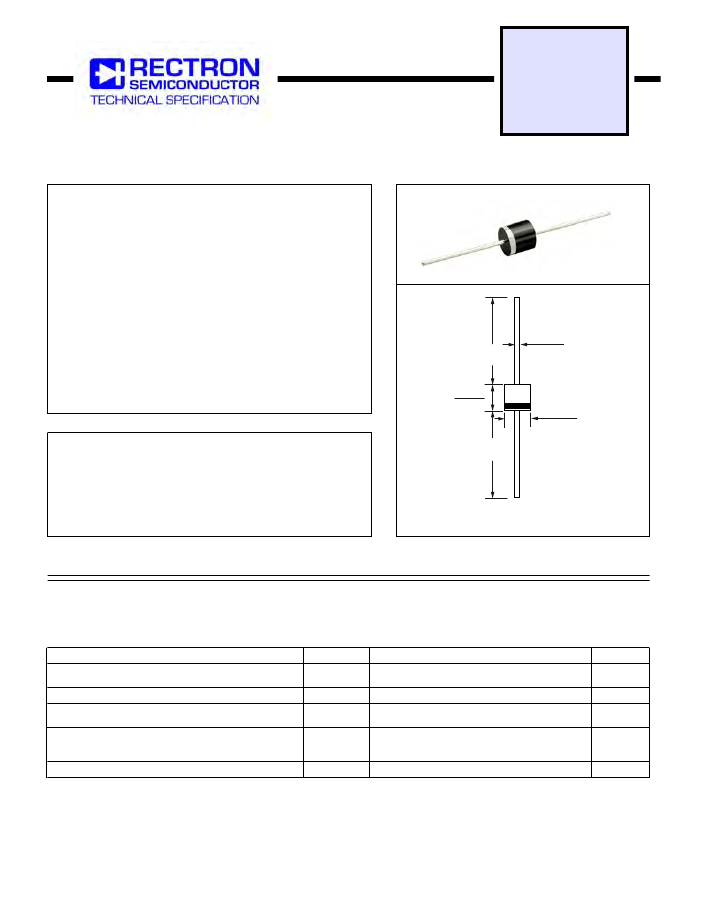

TVS
3KP
SERIES
GPP TRANSIENT VOLTAGE SUPPRESSOR
3000 WATT PEAK POWER 8.0 WATTS STEADY STATE
FEATURES
*
*
*
*
*
*
Plastic package has underwriters laboratory
Glass passivated chip construction
3000 watt surage capability at 1ms
Excellent clamping capability
Low zener impedance
Fast response time
R-6
1.0 (25.4)
MIN.
.052 (1.3)
DIA.
.048 (1.2)
.360 (9.1)
.340 (8.6)
.360 (9.1)
.340 (8.6)
DIA.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
1.0 (25.4)
MIN.
Dimensions in inches and (millimeters)
DEVICES
FOR
BIPOLAR
APPLICATIONS
For Bidirectional use C or CA suffix for types 3KP5.0 thru 3KP110
Electrical characteristics apply in both direction
MAXIMUM RATINGS
(At T
A
= 25 C unless otherwise noted)
RATINGS
Peak Pulse Power Dissipation with a 10/1000uS
waveform (Note 1, FIG.1)
Peak Pulse Current with a 10/1000uS waveform (Note 1, Fig. 3)
Steady State Power Dissipation at T
L
= 75 C lead lengths
0.375” (9.5mm) (Note 2)
Peak Forward Surge Current, 8.3ms single half sine wave-
superimposed on rated load( JEDEC METHOD ) (Note 3)
Operating and Storage Temperature Range
o
o
o
SYMBOL
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
, T
STG
VALUE
Minimum 3000
SEE TABLE 1
8.0
250
-55 to + 175
UNITS
Watts
Amps
Watts
Amps
0
C
2009-02
REV: O
NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25 C per Fig.2.
2. Mounted on copper pad area of 0.8 X 0.8” ( 20 X 20mm ) per Fig. 5
3. Measured on 8.3mS single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

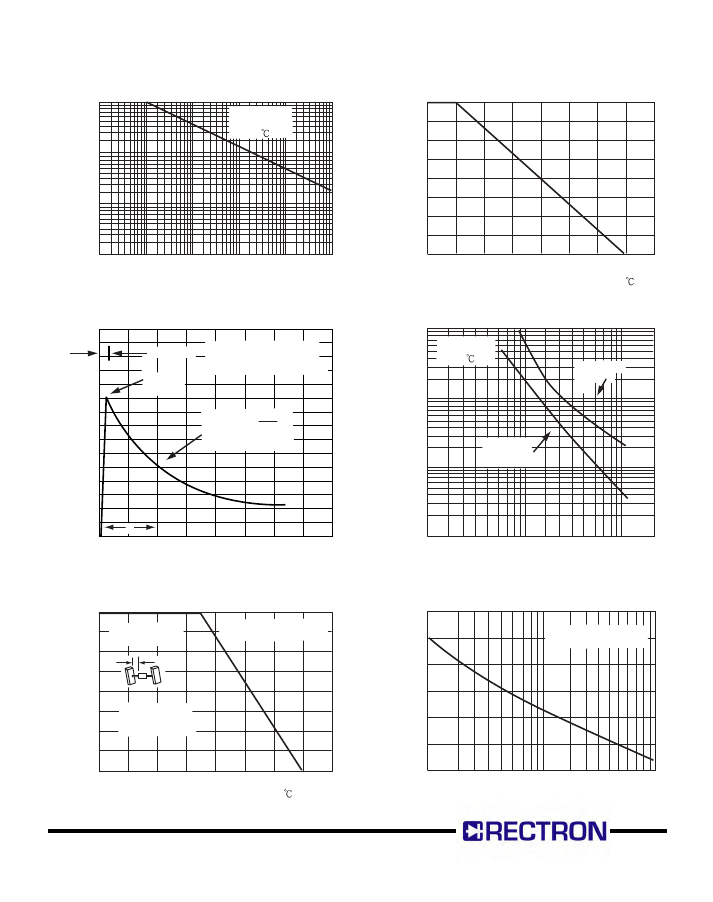

RATING AND CHARACTERISTIC CURVES( 3KP5.0 THRU 3KP110A )
FIG. 1 - PEAK PULSE POWER RATING CURVE
(IPP) DERATING IN PERCENTAGE,%
FIG. 2 - PULSE DERATING CURVE
PEAK PULSE POWER (PPP) OR CURRENT
P
PPM
, PEAK PULSE POWER, kW
100
Non-Repetitive
Pulse Waveform
Shown in Fig.3
TA = 25
100
75
50
25
0
10
1.0
0.1
0.1uS
1.0uS
10uS
100uS
1.0mS
10mS
02
5
50
75
100
125 150
175
)
200
T
P
, PULSE WIDTH, sec
FIG. 3 - PULSE WAVEFORM
150
I
PPM
, PEAK PULSE CURRENT,%
tr = 10usec.
Peak Value
IPPM
T
A
, AMBIENT TEMPERATURE,(
FIG. 4 - TYPICAL JUNCTION CAPACITANCE
100000
f = 1.0 MHz
Vsig = 50mVp-p
TJ = 25
Pulse Width (td) is Defined
as the Point Where the Peak
Current Decays to 50% of I
PPM
C
J
, CAPACITANCE, pF
Measured at
Zero Bias
100
10000
I
PPM
2
10/1000usec. Waveform
as Defined by R.E.A.
HALF VALUE -
50
1000
Measured at
Stand off
Voltage,V
WM
0
td
0
1.0
2.0
t, TIME,mS
3.0
4.0
100
1.0
10
100 200
V(
BR
), BREAKDOWN VOLTACE, VOLTS
FIG. 5 - STEADY STATE POWER DERATING CURVE
P
M
(AV), STEADY STATE POWER
DISSIATION, WATTS
L
= 0.375"(9.5mm)
Lead Lengths
60Hz
Resistive or Inductive Load
I
FSM
, PEAK FORWARD SURGE
CURRENT AMPERES
8
6
300
250
200
150
100
50
0
1
FIG. 6 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT UNIDIRECTIONAL
8.3ms Single Half Sine-Wave
(JEDED Method)
4
2
0
0.8X0.8X0.040"
(20X20mm)
Copper Heat Sinks
0
25
50
75 100 125 150
TL, LEAD TEMPERATURE (
175
)
200
10
NUMBER OF CYCLES AT 60 Hz
100
TRANSIENT VOLTAGE SUPPRESSORS
3000W SERIES TVS DIODES/R-6 ( CASE 12 ) 3000W
TYPE
3KP5.0
3KP5.0A
3KP6.0
3KP6.0A
3KP6.5
3KP6.5A
3KP7.0
3KP7.0A
3KP7.5
3KP7.5A
3KP8.0
3KP8.0A
3KP8.5
3KP8.5A
3KP9.0
3KP9.0A
3KP10
3KP10A
3KP11
3KP11A
3KP12
3KP12A
3KP13
3KP13A
3KP14
3KP14A
3KP15
3KP15A
3KP16
3KP16A
3KP17
3KP17A
3KP18
3KP18A
3KP20
3KP20A
3KP22
3KP22A
3KP24
3KP24A
3KP26
3KP26A
3KP28
3KP28A
3KP30
3KP30A
Breakdown Voltage
V
BR
@I
T
(Volts)
MIN.
6.40
6.40
6.67
6.67
7.22
7.22
7.78
7.78
8.33
8.33
8.89
8.89
9.44
9.44
10.0
10.0
11.1
11.1
12.2
12.2
13.3
13.3
14.4
14.4
15.6
15.6
16.7
16.7
17.8
17.8
18.9
18.9
20.0
20.0
22.2
22.2
24.4
24.4
26.7
26.7
28.9
28.9
31.1
31.1
33.3
33.3
MAX.
7.30
7.00
8.15
7.37
8.82
7.98
9.51
8.60
10.2
9.21
10.9
9.83
11.5
10.4
12.2
11.1
13.6
12.3
14.9
13.5
16.3
14.7
17.6
15.9
19.1
17.2
20.4
18.5
21.8
19.7
23.1
20.9
24.4
22.1
27.1
24.5
29.8
26.9
32.6
29.5
35.3
31.9
38.0
34.4
40.7
36.8
(mA)
50
50
50
50
50
50
50
50
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Reverse
Stand off
Voltage
V
WM
(Volts)
5.0
5.0
6.0
6.0
6.5
6.5
7.0
7.0
7.5
7.5
8.0
8.0
8.5
8.5
9.0
9.0
10.0
10.0
11.0
11.0
12.0
12.0
13.0
13.0
14.0
14.0
15.0
15.0
16.0
16.0
17.0
17.0
18.0
18.0
20.0
20.0
22.0
22.0
24.0
24.0
26.0
26.0
28.0
28.0
30.0
30.0
Maximum
Reverse
Leakage
at V
WM
I
D
(uA)
2000
2000
5000
5000
2000
2000
1000
1000
250
250
150
150
50
50
20
20
15
15
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Maximum
Peak Pulse
Current
I
PPM
(Amps)
312.5
326
263
291
244
267.8
225.5
250
209.7
232.5
200
220.6
188.7
208.3
177.5
194.8
159.6
176.4
149.2
164.8
136.4
150.7
126
139.5
116.3
129.3
111.5
122.9
104.2
115.4
98.4
108.7
93.2
102.7
83.8
92.6
76.1
84.5
69.7
77.1
64.4
71.2
59.9
66.1
56
62
Maximum
Clamping
Voltage
at I
PPM
V
C
(Volts)
9.6
9.2
11.4
10.3
12.3
11.2
13.3
12.0
14.3
12.9
15.0
13.6
15.9
14.4
16.9
15.4
18.8
17.0
20.1
18.2
22.0
19.9
23.8
21.5
25.8
23.2
26.9
24.4
28.8
26.0
30.5
27.6
32.2
29.2
35.8
32.4
39.4
35.5
43.0
38.9
46.6
42.1
50.1
45.4
53.5
48.4
TRANSIENT VOLTAGE SUPPRESSORS
3000W SERIES TVS DIODES/R-6 ( CASE 12 ) 3000W
TYPE
3KP33
3KP33A
3KP36
3KP36A
3KP40
3KP40A
3KP43
3KP43A
3KP45
3KP45A
3KP48
3KP48A
3KP51
3KP51A
3KP54
3KP54A
3KP58
3KP58A
3KP60
3KP60A
3KP64
3KP64A
3KP70
3KP70A
3KP75
3KP75A
3KP78
3KP78A
3KP85
3KP85A
3KP90
3KP90A
3KP100
3KP100A
3KP110
3KP110A
Breakdown Voltage
V
BR
@I
T
(Volts)
MIN.
36.7
36.7
40.0
40.0
44.4
44.4
47.8
47.8
50.0
50.0
53.3
53.3
56.7
56.7
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100
100
111
111
122
122
MAX.
44.9
40.6
48.9
44.2
54.3
49.1
58.4
52.8
61.1
55.3
65.2
58.9
69.3
62.7
73.3
66.3
78.7
71.2
81.5
73.7
96.9
78.6
95.1
86.0
102
92.1
106
95.8
115
104
122
111
136
123
149
135
(mA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Reverse
Stand off
Voltage
V
WM
(Volts)
33.0
33.0
36.0
36.0
40.0
40.0
43.0
43.0
45.0
45.0
48.0
48.0
51.0
51.0
54.0
54.0
58.0
58.0
60.0
60.0
64.0
64.0
70.0
70.0
75.0
75.0
78.0
78.0
85.0
85.0
90.0
90.0
100
100
110
110
Maximum
Reverse
Leakage
at V
WM
I
D
(uA)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Maximum
Peak Pulse
Current
I
PPM
(Amps)
50.8
56.3
46.6
51.6
42.0
46.5
39.1
43.2
37.3
41.3
35.1
38.7
32.9
36.4
31.2
34.4
29.1
31.9
28.0
30.9
26.3
29.1
24.0
26.5
22.4
24.8
21.6
23.8
19.8
21.9
18.7
20.5
16.7
18.5
15.3
16.9
Maximum
Clamping
Voltage
at I
PPM
V
C
(Volts)
59.0
53.3
64.3
58.1
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103
94
107
97
114
103
125
113
134
121
139
126
151
137
160
146
179
162
196
177
Notes :
1. V
BR
measured after I
T
applied for 300us. I
T
= square pulse or equivalent.
2. All devices UL listed under file# E211196.
3. For bidirectional use C or CA suffixs for all type (ex. 3KP5.0C,3KP110CA)
electrical characteristics apply in both directions.
4. For bidirectional types having V
WM
of 10 volts and less, the I
D
limit is doubled.
DISCLAIMER NOTICE
Rectron Inc reserves the right to make changes without notice to any product
specification herein, to make corrections, modifications, enhancements or other
changes. Rectron Inc or anyone on its behalf assumes no responsibility or liabi-
lity for any errors or inaccuracies. Data sheet specifications and its information
contained are intended to provide a product description only. "Typical" paramet-
ers which may be included on RECTRON data sheets and/ or specifications ca-
n and do vary in different applications and actual performance may vary over ti-
me. Rectron Inc does not assume any liability arising out of the application or
use of any product or circuit.
Rectron products are not designed, intended or authorized for use in medical,
life-saving implant or other applications intended for life-sustaining or other rela-
ted applications where a failure or malfunction of component or circuitry may di-
rectly or indirectly cause injury or threaten a life without expressed written appr-
oval of Rectron Inc. Customers using or selling Rectron components for use in
such applications do so at their own risk and shall agree to fully indemnify Rect-
ron Inc and its subsidiaries harmless against all claims, damages and expendit-
ures.
