AO-CAP Data Sheet
A700 Series - KEMET Aluminum-Organic AO-CAP
Applications
• Input/Output Filters for voltage regulators, converters, and SMPS
• Battery Decoupling (portable, handheld electronics)
• Power Decoupling (µProcesor, transmitter circuits)
• Bulk Capacitor Requirements
Features
•
•
•
•
•
•
•
•
•
•
Polymer Cathode Technology
Extremely Low ESR
High Frequency Capacitance Retention
Non-ignition Failure Mode
Capacitance: 33 to 470 µF
Self-healing Mechanism
-55° to +125°C Capability
No voltage Derating Up To 125°C
Robust to Surface Mount Process
Molded Case with Wraparound Termination
•
•
•
•
•
•
•
•
•
100% Accelerated Steady State Aging
100% Surge Current Testing
Solid-state Technology
Volumetric Efficient
Voltage: 2 to 10 V (16 and 25V coming soon)
No Reformation Required
EIA Standard Case Size
Pb Free
No Dry-out Related Failure Mechanism
A700 Ratings & Part Number Reference
Cap
DC Leakage
ESR mΩ
µF
Case
KEMET
µA +25ºC DF % 120 Hz 100kHz 25ºC
(±20%) Voltage
Size
Part Number
Max
+ 25ºC Max
Max
100.0
2
V/7343-20
A700V107M002AT
12.0
6%
28
150.0
2
V/7343-20
A700V157M002AT
18.0
6%
28
180.0
2
D/7343/31
A700D187M002AT
21.6
6%
18
220.0
2
D/7343-31
A700D227M002AT
26.4
6%
18
270.0
2
X/7343-43
A700X277M002AT
26.4
6%
15
330.0
2
X/7343-43
A700X337M002AT
39.6
6%
15
390.0
2
X/7343-43
A700X397M002AT
46.8
6%
15
470.0
2
X/7343-43
A700X477M002AT
56.4
6%
15
82.0
2.5
V/7343-20 A700V826M004AT6003
12.3
6%
28
150.0
2.5
D/7343/31 A700D157M004AT6003
22.5
6%
18
220.0
2.5
X/7343-43 A700X227M004AT6003
33.0
6%
15
82.0
4
V/7343-20
A700V826M004AT
19.7
6%
28
120.0
4
D/7343-31
A700D127M004AT
28.8
6%
18
150.0
4
D/7343-31
A700D157M004AT
36.0
6%
18
180.0
4
X/7343-43
A700X187M004AT
43.2
6%
15
220.0
4
X/7343-43
A700X227M004AT
52.8
6%
15
270.0
4
X/7343-43
A700X277M004AT
64.8
6%
15
33.0
6.3
V/7343-20
A700V336M006AT
8.3
6%
28
47.0
6.3
V/7343-20
A700V476M006AT
11.8
6%
28
56.0
6.3
V/7343-20
A700V566M006AT
14.1
6%
28
68.0
6.3
V/7343-20
A700V686M006AT
17.1
6%
28
100.0
6.3
D/7343-31
A700D107M006AT
25.2
6%
18
150.0
6.3
X/7343-43
A700X157M006AT
37.8
6%
15
180.0
6.3
X/7343-43
A700X187M006AT
45.4
6%
15
33.0
8
V/7343-20
A700V336M008AT
10.6
6%
28
33.0
10
V/7343-20
A700V336M010AT
13.2
6%
28
Note that DC leakage limits are after a minimum of 2 minutes charge time at rated voltage.
Ripple Current Arms
100kHz, @ Max ESR
25°C to 105°C
2.1
2.1
2.9
2.9
3.4
3.4
3.4
3.4
2.1
2.9
3.4
2.1
2.9
2.9
3.4
3.4
3.4
2.1
2.1
2.1
2.1
2.9
3.4
3.4
2.1
2.1
Lower ESR Ratings Using 6050 KEMET Specification
Case
Size
ESR mΩ
100kHz 25ºC
Max.
25
15
10
Ripple Current Arms
100kHz, @ Max ESR
25°C to 105°C
2.2
3.4
4.2
V/7343-20
D/7343-31
X/7343-43
F3235H 09/02

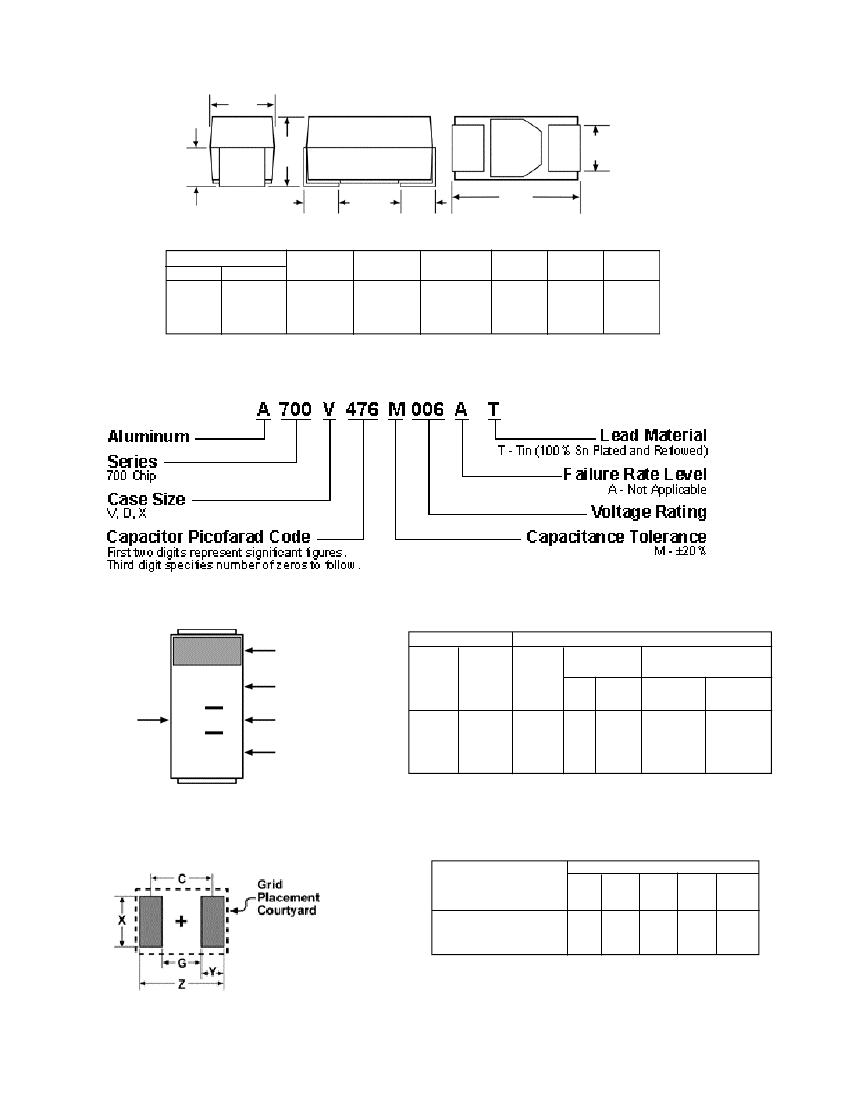

Outline Drawing
End View
W
H
K
S
S
L
F
Side View
Bottom View
Dimensions - Millimeters
Case Size
KEMET
EIA
V
7343-20
D
7343-31
X
7343-43
L
7.3 ± 0.3
7.3 ± 0.3
7.3 ± 0.3
W
4.3 ± 0.3
4.3 ± 0.3
4.3 ± 0.3
H
1.9 ± 0.1
2.8 ± 0.3
4.0 ± 0.3
K Min.
0.9
1.3
2.1
F ±0.1
2.4
2.4
2.4
S ±0.2
1.3
1.3
1.3
Note that glue pad shape may differ at KEMET’s discretion.
A700 Ordering Information
Component Marking
Polarity (+)
Indicator
Case Codes
KEMET
EIA
Tape & Reel Packaging
Tape
Width
mm
Tape & Reel Dimensions
Pitch
Reel Quantity
mm ± 0.1
Part Spro- 180mm
330mm
cket
(7” dia)
(13” dia)
8
8
8
4
4
4
1000
500
500
3000
2500
2000
Rated
Voltage
476
6K
124
Picofarad
Code
KEMET ID
1st Digit = year
2nd & 3rd digits =
Week
V
D
X
7343-20 12 ± 0.3
7343-31 12 ± 0.3
7343-43 12 ± 0.3
Recommended Mounting Pad
Geometries - Millimeters
Land Pattern Dimensions for
Reflow Solder
Pad Dimensions
KEMET/EIA Size Code
Z
G
X
Y
(ref)
2.55
C
(ref)
6.35
V/7343-20, D/7343-31
X/7343-43
8.90
3.80 2.70
