PCS3060P50 datasheet, PDF - EEWORLD Datasheet

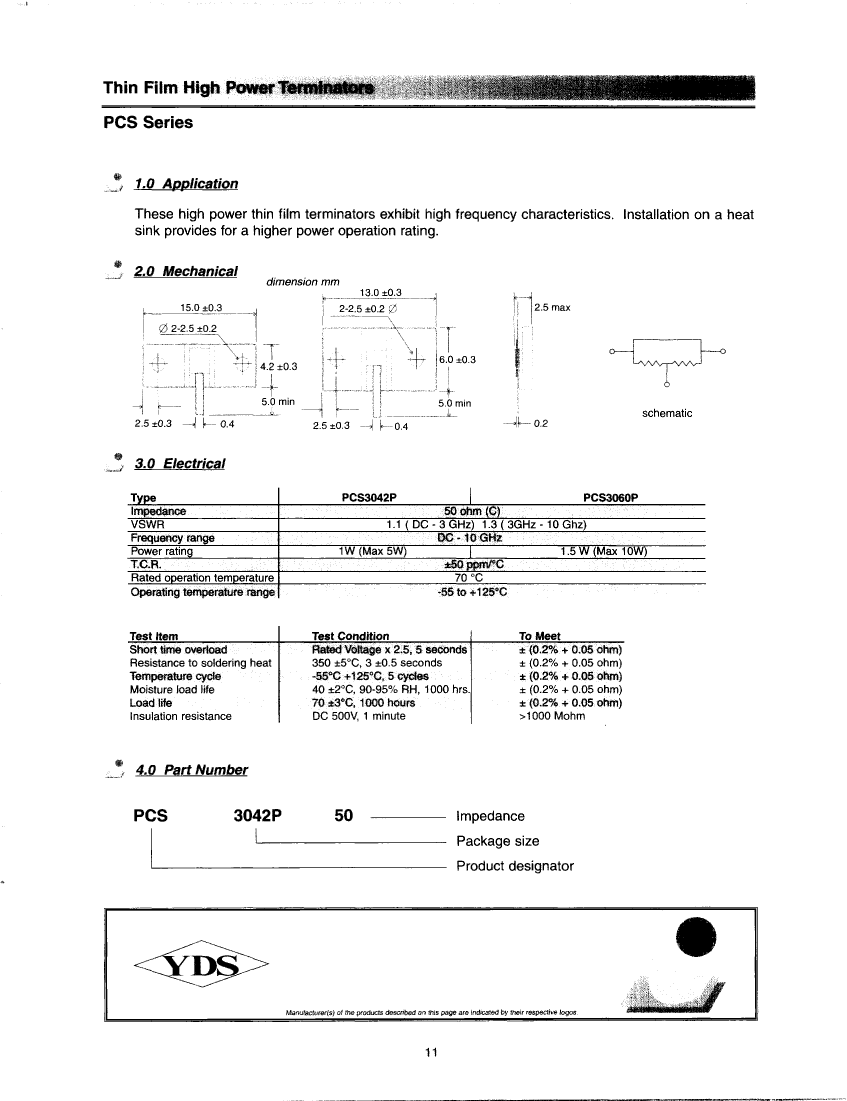

PCS3060P50: DescriptionRF/Microwave Termination, 0MHz Min, 10000MHz Max, 50ohm; CategoryWireless rf/communication Radio frequency and microwave; File Size66KB，1 Pages; ManufacturerSUSUMU

Download Datasheet Parametric View All

PCS3060P50 Overview

RF/Microwave Termination, 0MHz Min, 10000MHz Max, 50ohm

Parameter Name	Attribute value
Maker	SUSUMU
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
Maximum input power (CW)	40 dBm
Maximum operating frequency	10000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.3
