5962-9562503NXX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> 5962-9562503NXX

Preview

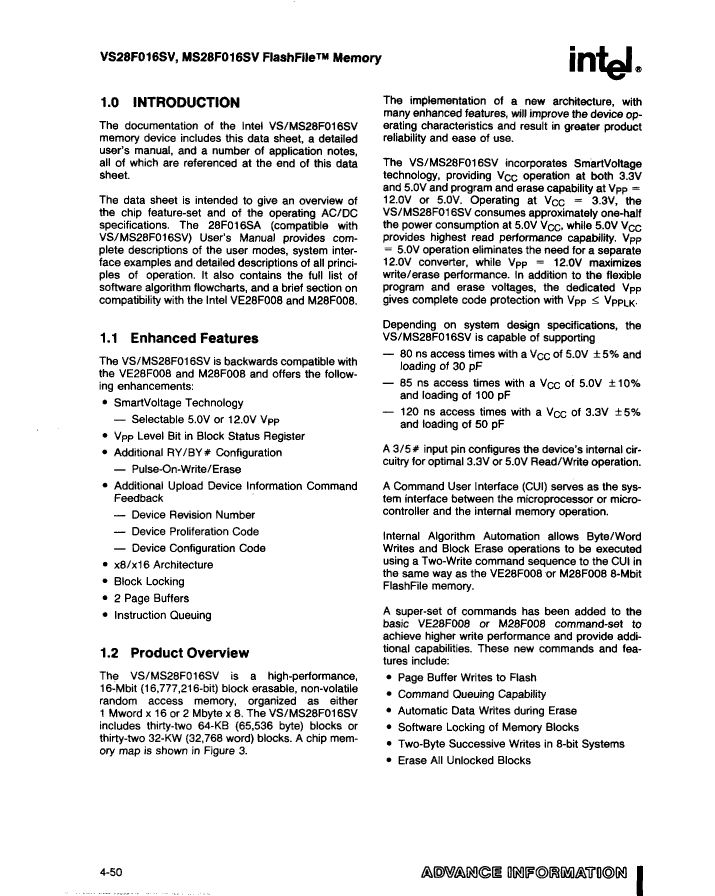

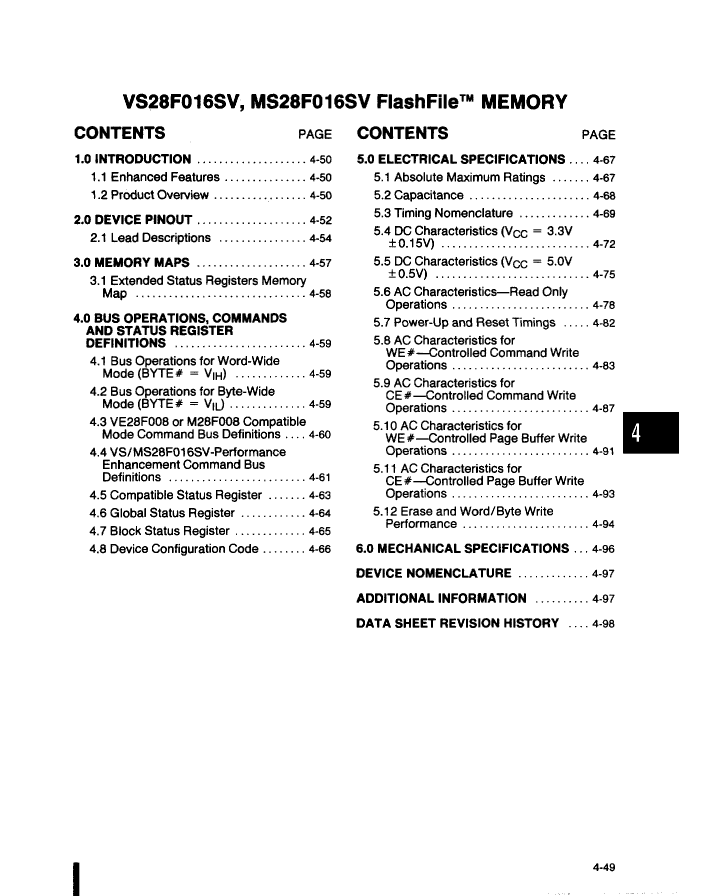

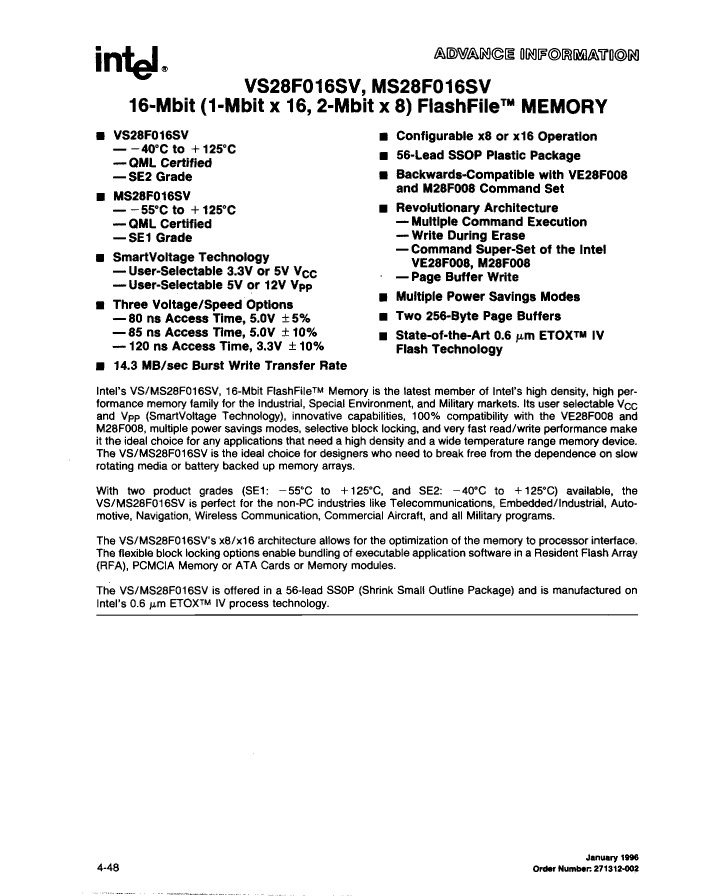

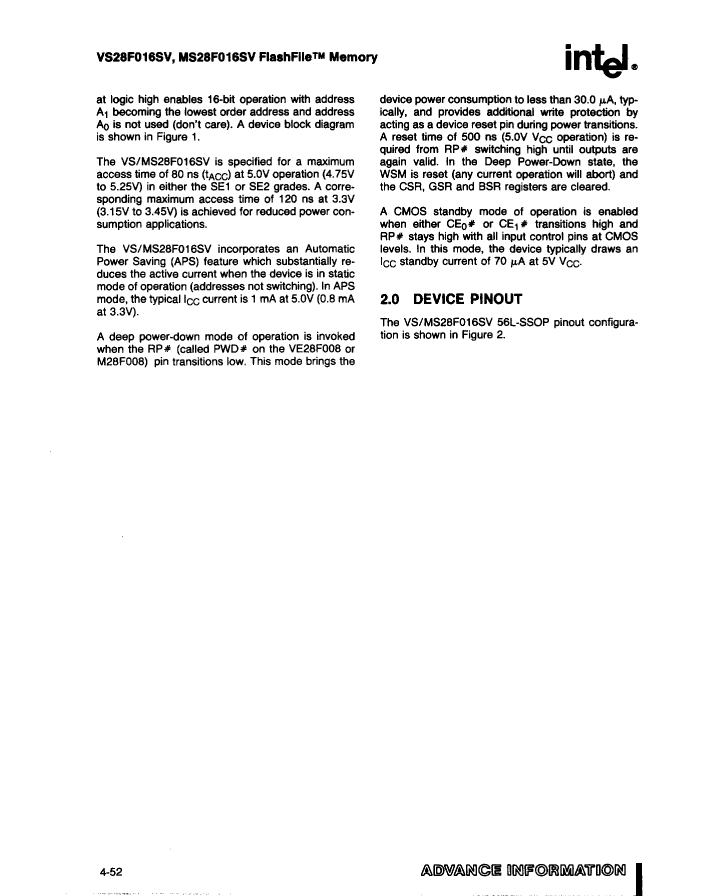

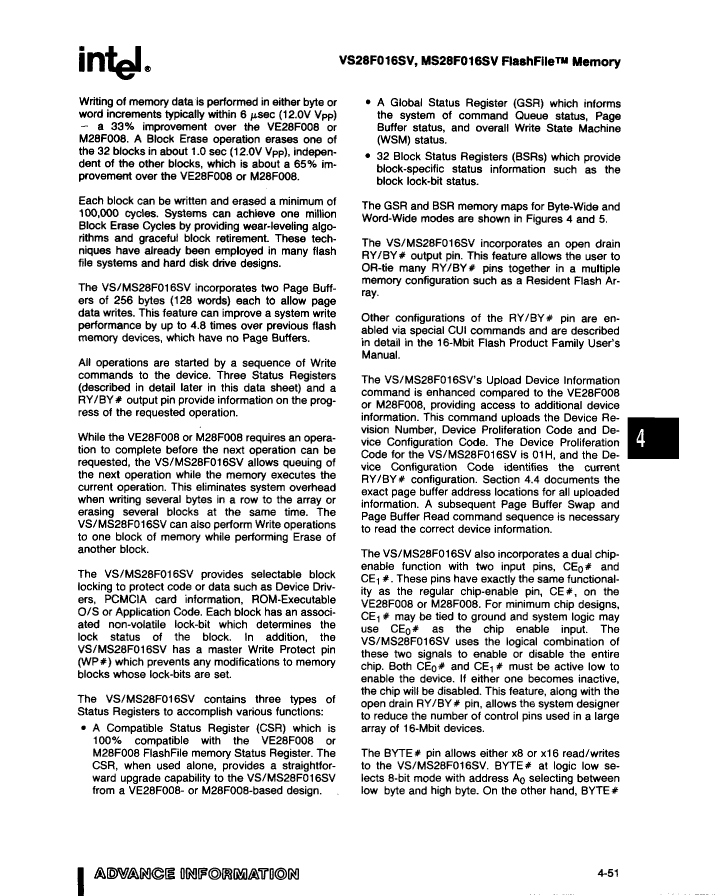

5962-9562503NXX: DescriptionFlash, 2MX8, 85ns, PDSO56, PLASTIC, SSOP-56; Categorystorage storage; File Size1MB，51 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

5962-9562503NXX Overview

Flash, 2MX8, 85ns, PDSO56, PLASTIC, SSOP-56

5962-9562503NXX Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	SSOP
package instruction	PLASTIC, SSOP-56
Contacts	56
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	85 ns
Spare memory width	16
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	23.7 mm
memory density	16777216 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	56
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL
Programming voltage	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
type	NOR TYPE
width	13.3 mm
