S W I T C H E S
MEMS
24
X
24
MATRIX SWITCH
DiCon's 24x24 MEMS Matrix Switch is an integrated switch
module based on DiCon's MEMS 1x24 Switch. Forty-eight
MEMS 1x24 Switches, twenty-four for inputs and the other
twenty-four for outputs, are interconnected to form a fully
non-blocking, two stage, fan-out/fan-in Spanke Configuration.
Under this matrix switch platform, different MEMS 1xN
Switches can be used to form customized NxM Switch
F
EATURES
•
Small form factor (less than 8”x 11”x 1”)
•
Low insertion loss (< 1.7 dB)
•
Low cross talk (<-55 dB)
•
Fast switching time (< 35 ms)
•
Excellent repeatability (<+/- 0.02 dB)
•
Low power consumption (< 500 mW)
•
MEMS durability and reliability (>10
9
Cycles)
•
Available in other customized configurations
A
PPLICATIONS
The MEMS 24x24 Matrix is used in an optical network to
dynamically configure the system. Mounting to any network
card is easily achieved with its small form factor and 1"
thickness. For Test and Measurement applications, the matrix
switch is a simplified alternative solution for cable management
and allows users to share resources.
Specifications subject to change. Copyright ©2006 DiCon Fiberoptics, Inc. All rights reserved.
S
PECIFICATIONS
Insertion Loss
1,2
Crosstalk
Back Reflection
Switching Time
TDL
WDL
PDL
Repeatability
4
Stability
5
3
O
RDERING
I
NFORMATION
1.7 dB max.
-55 dB max.
-50 dB max.
35 ms max.
0.3 dB max.
0.3 dB max.
0.05 dB max.
+/- 0.02 dB max.
+/- 0.02 dB max.
10 cycles min.
500 mW max.
0
o
C to 70
o
C
-40
o
C to +85
o
C
9/125
µm
Singlemode
9
MX-24x24-
Product Code
MX
MEMS Matrix
-
-
-
-
Switch Configuration
24x24
24x24 Non-Blocking
Control Interface
I2C
RS2
RS4
I
2
C
RS232
RS485
Durability
Optical Power
Operating Temperature
Storage Temperature
Fiber Type
o
Wavelength Range
13
15
16
13/15
1290 - 1330 nm
1525 - 1565 nm
1570 - 1610 nm
1290 - 1330 & 1525 - 1565 nm
1. IL is measured at 1550nm, 23 C.
2. IL is for opaque model. Power off isolation is same as cross talk.
3. WDL is specified in a +/- 20nm range.
4. Repeatability is defined after 100 cycles.
5. Over 8 hour period, 23
o
C
Fiber and Fiber Jacket Type
9/TB
9/LT
SMF-28 with Tight Buffer jacket
1
SMF-28 with Loose Tube jacket
1
H
OUSING

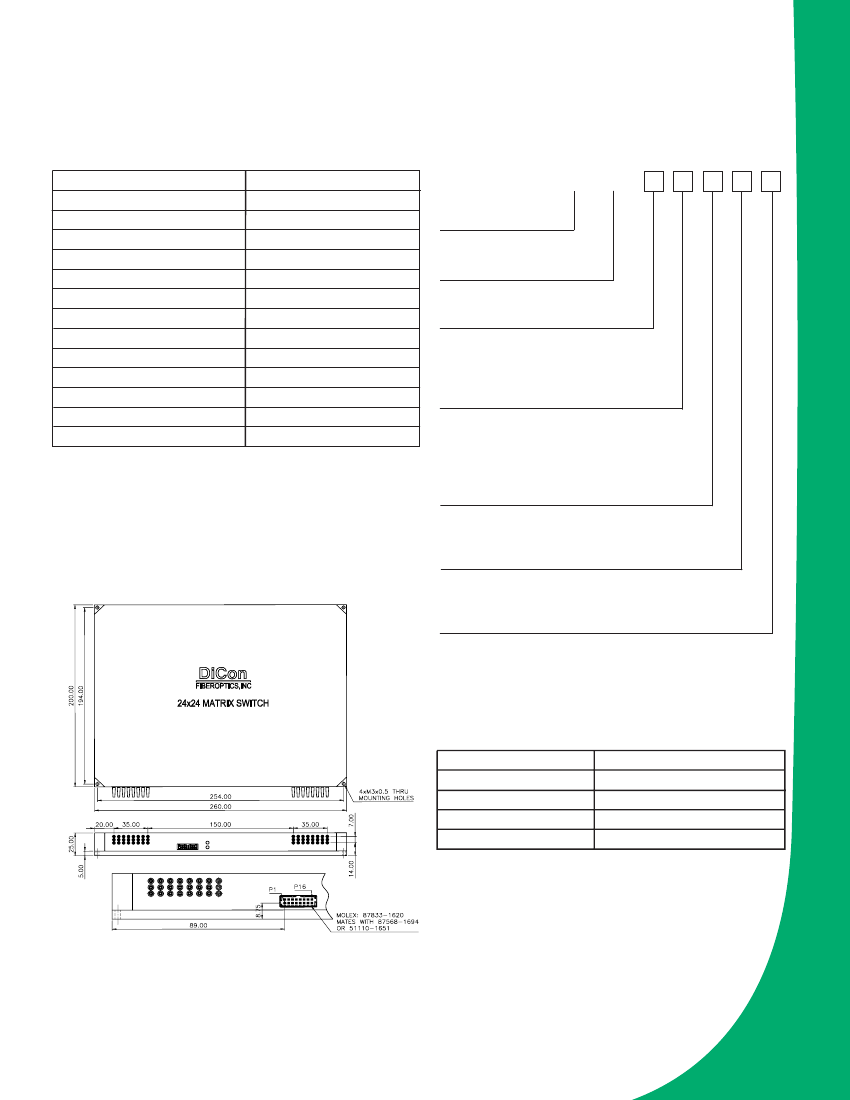

D
IMENSIONS
Connector Type
FC
FC/A
FC Connector
FC/APC Connector
Pigtail Length
1
X
1 meter long standard pigtail
Specified length
1. Or other equivalent 9µm Singlemode fiber
E
LECTRICAL
S
PECIFICATIONS
Latching Type
Control Type
Connector Type
Supply Voltage
Power Consumption
Non-latching
I
2
C, RS232, or RS485
Molex 87833-1620
DC 12 V
500mW max.
Units: mm
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804
Tel. (510)620-5000
Fax. (510)620-4100
www.diconfiber.com
0131
A
SWITCHES
MEMS
24
x
24
MATRIX SWITCH
