SML1209-0ER-TR
Super Efficiency Red
Dome Lens Surface Mount LED
3.2 ×2.4 ×2.5 mm Package
25° viewing angle
DWG BY:
LO / JG
12-06-06
CHK BY:
PL
07-17-08
QA:
__
__-__-__
MFG:
__
__-__-__
REVISION LTR: -
07-16-08
Part No.
SML1209-0ER-TR
DWG NO.
DSTR0210
Page
1 of 9
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Features
* Meet ROHS standards.
* Dome lens Chip LED.
* Ultra bright AlInGaP Chip LED.
* Package in 8mm tape on 7" diameter reels.
* Compatible with automatic placement equipment.
* Compatible with infrared and vapor phase reflow solder process.
* EIA STD package.
* I.C. compatible.
Package Dimensions:
Ø1.8 (Ø.07)
CATHODE
MARK
0.5 (.020)
0.5 (.020)
LED
DICE
0.55
[.022]
TYP
1.80 [.071]
3.2 (.126)
2.3
(.087)
3.20
[.126]
PART MAY COME WITH
OR WITHOUT NOTCHES
2.4 (.095)
PC
BOARD
2.5 (.098)
SOLDERING
TERMINALS
LED
DICE
2.79
[.110]
2.40 (.094)
1.00 (.039)
4.19 [.165]
1.09
[.043]
SUGGESTED PAD LAYOUT
Part No.
SML1209-0ER-TR
Notes:
1.
2.
3.
4.
Chip Material Lens Color
GaAllnP
Water Clear
Emission Color
Super Red
All dimensions are in millimeters (inches).
Tolerance is ±0.1mm (.004”) unless otherwise noted.
Specifications are subject to change without notice.
Precautions for ESD:
Static electricity and surge can damage the LED. It is recommended to use a wristband or
anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be
properly grounded.
Part No.
SML1209-0ER-TR
DWG NO.
DSTR0210
Page
2 of 9
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Absolute Maximum Ratings
Parameter
For ward current
Reverse voltage
Power dissipation
Operating temperature range
Storage temperature range
Peak forward current
(1/10 Duty Cycle, 0.1ms Pulse Width)
(T
A
=25°C)
Symbol
If
Vr
Pd
Topr
Tstg
Ifp
Value
30
5
75
-55 ~+85
-40 ~+85
80
Unit
mA
V
mW
°C
°C
mA
Electro-optical characteristics
Parameter
Wavelength at peak emission
Spectral half bandwidth
Dominant wavelength
Forward voltage
Luminous intensity
Viewing angle at 50% Iv
Reverse current
Chromaticity Coordinates
Radiant Intensity
(T
A
=25°C)
Symbol
peak
Test
Condition
If=20mA
If=20mA
If=20mA
If=20mA
If=20mA
If=20mA
Vr=5V
If=20mA
If=20mA
Value
Min
634
--
Typ
645
19
630
1.9
1200
25
--
0.70
0.29
--
Max
648
--
634
2.4
--
--
100
--
--
Unit
nm
nm
nm
V
mcd
Deg
µA
dom
Vf
Iv
2θ
1/2
Ir
X
Y
Ie
623
--
330
--
--
--
--
µW/sr
Part No.
SML1209-0ER-TR
DWG NO.
DSTR0210
Page
3 of 9
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com

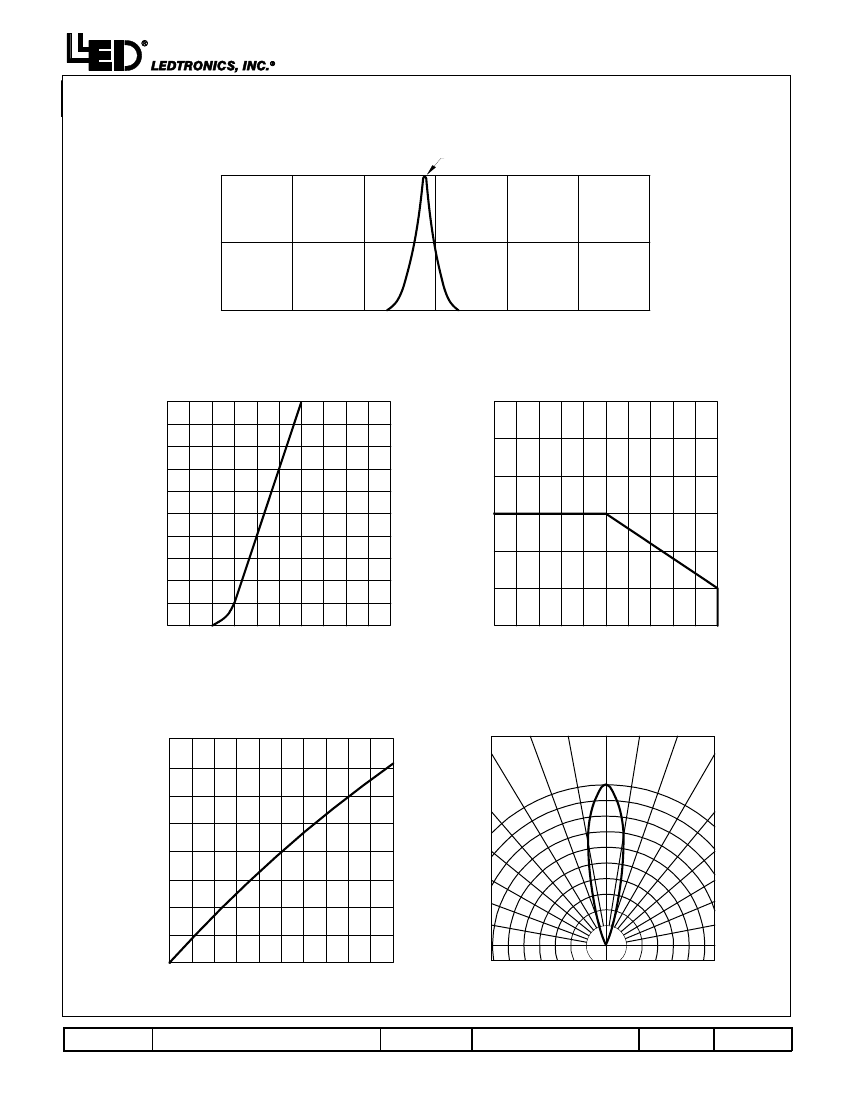

OPTICAL
CHARACTERISTIC CURVES
RELATIVE RADIANT INTENSITY
RELATIVE INTENSITY VS. WAVELENGTH
SUPER RED
1.0
0.5
0
500
600
700
WAVELENGTH
λ
(nm)
800
50
(mA)
40
30
20
10
0
1.2
FORWARD CURRENT VS.
FORWARD VOLTAGE
FORWARD CURRENT DERATING CURVE
60
FORWARD CURRENT I f (mA)
50
40
30
20
10
0
FORWARD CURRENT I
f
1.6
2.0
2.4
2.8
3.2
0
20
40
60
80
100
FORWARD VOLTAGE V (V)
f
RELATIVE LUMINOUS INTENSITY
VS. FORWARD CURRENT
2.0
RELATIVE LUMINOUS INTENSITY I v
(NORMALIZED at 20mA)
RELATIVE RADIANT INTENSITY
AMBIENT TEMPERATURE Ta (°C)
RADIATION DIAGRAM
0°
10°
20°
30°
40°
1.0
50°
60°
70°
80°
90°
0.5
1.0
0
0
10
20
30
40
50
FORWARD CURRENT I f (mA)
Part No.
SML1209-0ER-TR
DWG NO.
DSTR0210
Page
4 of 9
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com

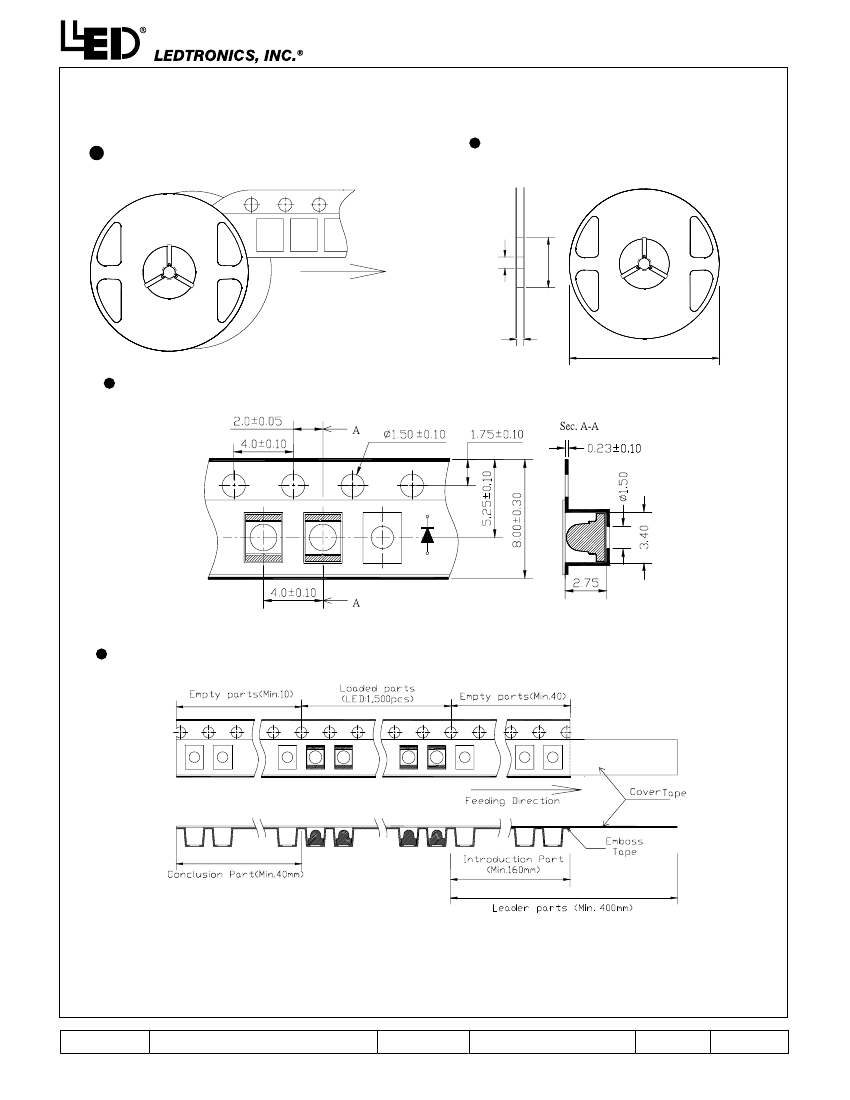

SMD Chip LED Lamps Packaging Specifications
Feeding
Dimensions of Reel (Unit: mm)
Ø60.0±1.0
Ø13.0 TYP.
Feeding Direction
14.40 TYP.
Ø178±2.0
Dimensions of Tape (Unit: mm)
Arrangement of Tape
1. Empty component pockets are sealed with top cover tape;
2. The maximum number of missing lamps is two;
3. The cathode is oriented towards the tape sprocket hole in accordance with ANSI/EIA RS-481 specifications.
4. 1,500 pcs/Reel
NOTES
Part No.
SML1209-0ER-TR
DWG NO.
DSTR0210
Page
5 of 9
