UTGS01412SN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> UTGS01412SN

UTGS01412SN: DescriptionCircular Connector, 12 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

UTGS01412SN Overview

Circular Connector, 12 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

UTGS01412SN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28; RC16M23D28, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	14
Termination type	CRIMP
Total number of contacts	12

Preview

Download Datasheet

View All

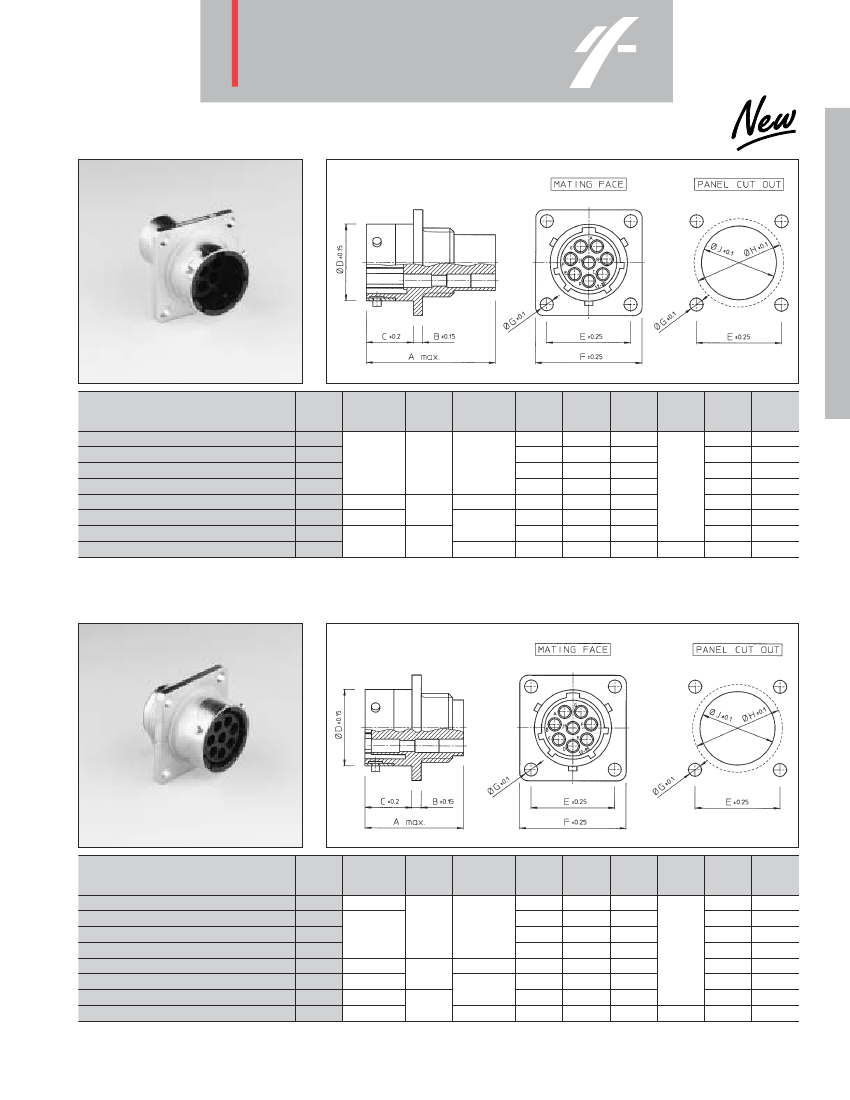

UTGS

- Shielded Bantam

Shielded wall mounting receptacle for pin contacts (UTGS0- - - -PN)

Part number

UTGS0104PN / UTGS0103PNVDE

UTGS0128PN

UTGS01412PN

UTGS01619PN

UTGS01823PN / UTGS0187PNVDEU

UTGS02028PN / UTGS02020PN

UTGS02235PN

UTGS02448PN

Shell

size

max.

±0.15

±0.2

ØD

±0.15

±0.25

ØG

±0.1

ØH

±0.1

ØJ

±0.1

2.3

31.7

31.7/34.0

33.3/34.3

33.3

2.5

3.5

15.3

11.3

11.3/17.9

14.5

15.0

19.0

22.2

25.3

28.5

31.7

34.9

38.0

18.3

20.6

23.0

24.6

27.0

29.4

31.8

34.9

23.8

26.2

28.6

31.0

33.3

36.5

39.7

42.9

3.2

3.9

17.3

21.8

25.0

28.1

31.3

34.5

37.7

40.9

15.1

18.2

21.4

24.6

27.8

30.9

34.1

37.3

For waterprotected version add “H” behind “P” e.g. UTGS01412PHN

For bulk packing (qty 100 pcs) add B at the end of cat. Nr. eg. UTGS01412PNB

Shielded wall mounting receptacle for socket contacts (UTGS0- - - -SN)

Part number

UTGS0104SN / UTGS0103SNVDE

UTGS0128SN

UTGS01412SN

UTGS01619SN

UTGS01823SN / UTGS0187SNVDEU

UTGS02028SN / UTGS02020SN

UTGS02235SN

UTGS02448SN

Shell

size

max.

24.3/27.6

±0.15

±0.2

ØD

±0.15

±0.25

ØG

±0.1

ØH

±0.1

ØJ

±0.1

2.3

24.3

24.3/30.4

27.0

28.0

30.4

2.5

3.5

15.3

11.3

11.3/17.9

14.5

15.0

19.0

22.2

25.3

28.5

31.7

34.9

38.0

18.3

20.6

23.0

24.6

27.0

29.4

31.8

34.9

23.8

26.2

28.6

31.0

33.3

36.5

39.7

42.9

3.2

3.9

17.3

21.8

25.0

28.1

31.3

34.5

37.7

40.9

15.1

18.2

21.4

24.6

27.8

30.9

34.1

37.3

For waterprotected version add “H” behind “P” e.g. UTGS01412SHN

For bulk packing (qty 100 pcs) add B at the end of cat. Nr. eg. UTGS01412SNB

UTGS

UTGS01412SN Related Products

	UTGS01412SN	UTGS0104SN	UTGS0128PN	UTGS01412PN	UTGS01823PN	UTGS01823SN	UTGS02028SN	UTGS0103SHNVDE
Description	Circular Connector, 12 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	Circular Connector, 4 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	Circular Connector, 8 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle	Circular Connector, 12 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle	Circular Connector, 23 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle	Circular Connector, 23 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	Circular Connector, 28 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle	Circular Connector, 3 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28; RC16M23D28, POLARIZED	COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28; RC16M23D28, POLARIZED	COMPATIBLE CONTACTS: RM28M1D28; RM24M9D28; RM20M13D28; RM20M12D28; RM16M23D28, POLARIZED	COMPATIBLE CONTACTS: RM28M1D28; RM24M9D28; RM20M13D28; RM20M12D28; RM16M23D28, POLARIZED	COMPATIBLE CONTACTS: RM28M1D28; RM24M9D28; RM20M13D28; RM20M12D28; RM16M23D28, POLARIZED	COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28; RC16M23D28, POLARIZED	COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28; RC16M23D28, POLARIZED	COMPATIBLE CONTACTS: RC28M1D28; RC24M9D28; RC20M13D28; RC20M12D28; RC16M23D28, POLARIZED
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	WATERPROOF
Shell surface	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED	NICKEL PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	14	10	12	14	18	18	20	10
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	12	4	8	12	23	23	28	3
