UTGW02041P1

Description
Circular Connector, 41 Contact(s), Glass Filled Polyethylene, Male, Crimp Terminal, Receptacle
CategoryThe connector    The connector
File Size48KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

UTGW02041P1 Overview

Circular Connector, 41 Contact(s), Glass Filled Polyethylene, Male, Crimp Terminal, Receptacle

UTGW02041P1 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Other featuresCOMPATIBLE CONTACTS: SM24M1S6; SM24ML1S6; SM20M1S6; SM20ML1S6; SM16M1S6, HIGH DENSITY
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
empty shellYES
Environmental characteristicsENVIRONMENT RESISTANT
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberUTGW
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialGLASS FILLED POLYETHYLENE
Housing size20
Termination typeCRIMP
Total number of contacts41

Preview

Download Datasheet

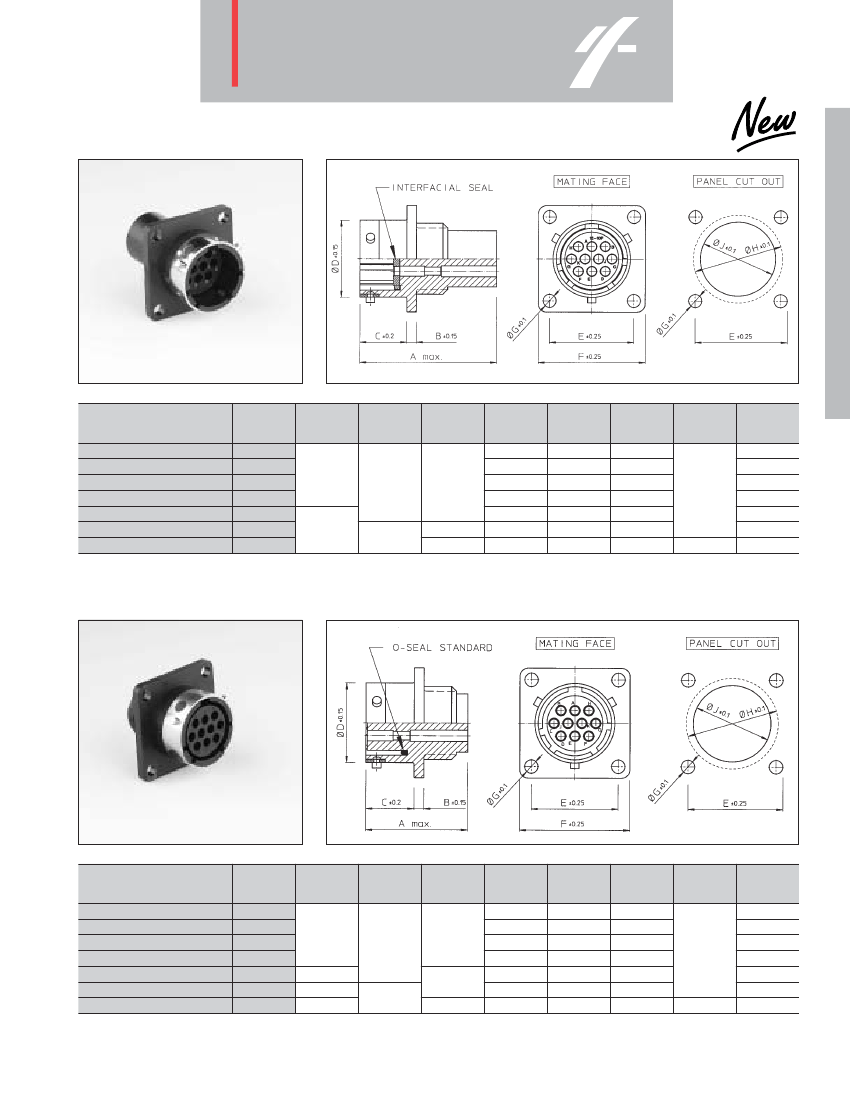

UTGW
- SEALOK
Wall mounting receptacle for pin contacts (UTGW0- - - -P1)
Part number
UTGW0106P1
UTGW01210P1
UTGW01419P1
UTGW01626P1
UTGW02041P1
UTGW02255P1
UTGW02461P1
Shell
size
10
12
14
16
20
22
24
A
Max.
B
± 0.15
C
± 0.2
ØD
± 0.15
15.0
19.0
22.2
25.3
31.7
34.9
38.0
E
± 0.25
18.3
20.6
23.0
24.6
29.4
31.8
34.9
F
± 0.25
23.8
26.2
28.6
31.0
36.5
39.7
42.9
ØG
± 0.1
ØJ
± 0.1
15.1
18.2
21.4
24.6
30.9
34.1
37.3
2.3
31.7
11.3
14.5
33.3
3.5
15.3
3.2
3.9
For bulk packing (qty 100 pcs) add B at the end of cat. Nr. eg. UTGW01419P1B
Wall mounting receptacle for socket contacts (UTGW0- - - -S1)
Part number
UTGW0106S1
UTGW01210S1
UTGW01419S1
UTGW01626S1
UTGW02041S1
UTGW02255S1
UTGW02461S1
Shell
size
10
12
14
16
20
22
24
A
Max.
B
± 0.15
C
± 0.2
ØD
± 0.15
15.0
19.0
22.2
25.3
31.7
34.9
38.0
E
± 0.25
18.3
20.6
23.0
24.6
29.4
31.8
34.9
F
± 0.25
23.8
26.2
28.6
31.0
36.5
39.7
42.9
ØG
± 0.1
ØJ
± 0.1
15.1
18.2
21.4
24.6
30.9
34.1
37.3
2.3
24.3
27.0
28.0
30.4
11.3
14.5
3.5
15.3
3.2
3.9
For bulk packing (qty 100 pcs) add B at the end of cat. Nr. eg. UTGW01419S1B
37
UTGW

UTGW02041P1 Related Products

UTGW02041P1 UTGW02255S1 UTGW01419S1 UTGW01626S1 UTGW01210S1 UTGW0106S1 UTGW01210P1 UTGW01419P1 UTGW01626P1 UTGW02041S1
Description Circular Connector, 41 Contact(s), Glass Filled Polyethylene, Male, Crimp Terminal, Receptacle Circular Connector, 55 Contact(s), Glass Filled Polyethylene, Female, Crimp Terminal, Receptacle Circular Connector, 19 Contact(s), Glass Filled Polyethylene, Female, Crimp Terminal, Receptacle Circular Connector, 26 Contact(s), Glass Filled Polyethylene, Female, Crimp Terminal, Receptacle Circular Connector, 10 Contact(s), Glass Filled Polyethylene, Female, Crimp Terminal, Receptacle Circular Connector, 6 Contact(s), Glass Filled Polyethylene, Female, Crimp Terminal, Receptacle Circular Connector, 10 Contact(s), Glass Filled Polyethylene, Male, Crimp Terminal, Receptacle Circular Connector, 19 Contact(s), Glass Filled Polyethylene, Male, Crimp Terminal, Receptacle Circular Connector, 26 Contact(s), Glass Filled Polyethylene, Male, Crimp Terminal, Receptacle Circular Connector, 41 Contact(s), Glass Filled Polyethylene, Female, Crimp Terminal, Receptacle
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
Other features COMPATIBLE CONTACTS: SM24M1S6; SM24ML1S6; SM20M1S6; SM20ML1S6; SM16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SC24M1S6; SC24ML1S6; SC20M1S6; SC20ML1S6; SC16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SC24M1S6; SC24ML1S6; SC20M1S6; SC20ML1S6; SC16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SC24M1S6; SC24ML1S6; SC20M1S6; SC20ML1S6; SC16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SC24M1S6; SC24ML1S6; SC20M1S6; SC20ML1S6; SC16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SC24M1S6; SC24ML1S6; SC20M1S6; SC20ML1S6; SC16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SM24M1S6; SM24ML1S6; SM20M1S6; SM20ML1S6; SM16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SM24M1S6; SM24ML1S6; SM20M1S6; SM20ML1S6; SM16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SM24M1S6; SM24ML1S6; SM20M1S6; SM20ML1S6; SM16M1S6, HIGH DENSITY COMPATIBLE CONTACTS: SC24M1S6; SC24ML1S6; SC20M1S6; SC20ML1S6; SC16M1S6, HIGH DENSITY
Back shell type SOLID SOLID SOLID SOLID SOLID SOLID SOLID SOLID SOLID SOLID
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR CIRCULAR CONNECTOR
Contact point gender MALE FEMALE FEMALE FEMALE FEMALE FEMALE MALE MALE MALE FEMALE
Coupling type BAYONET BAYONET BAYONET BAYONET BAYONET BAYONET BAYONET BAYONET BAYONET BAYONET
DIN compliance NO NO NO NO NO NO NO NO NO NO
empty shell YES YES YES YES YES YES YES YES YES YES
Environmental characteristics ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT ENVIRONMENT RESISTANT
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO NO NO
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation type PANEL PANEL PANEL PANEL PANEL PANEL PANEL PANEL PANEL PANEL
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell material GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE
Housing size 20 22 14 16 12 10 12 14 16 20
Termination type CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP CRIMP
Total number of contacts 41 55 19 26 10 6 10 19 26 41
