ECS-FREQ3-S-5PLXADL-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-FREQ3-S-5PLXADL-TR

ECS-FREQ3-S-5PLXADL-TR: DescriptionSeries - Fundamental Quartz Crystal, 6MHz Min, 6.999MHz Max, ROHS COMPLIANT, RESISTANCE WELD, METAL, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size143KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-FREQ3-S-5PLXADL-TR Overview

Series - Fundamental Quartz Crystal, 6MHz Min, 6.999MHz Max, ROHS COMPLIANT, RESISTANCE WELD, METAL, SMD, 2 PIN

ECS-FREQ3-S-5PLXADL-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECS
package instruction	ROHS COMPLIANT, RESISTANCE WELD, METAL, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.01%
frequency tolerance	25 ppm
Installation features	SURFACE MOUNT
Maximum operating frequency	6.999 MHz
Minimum operating frequency	6 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L11.4XB4.8XH3.2 (mm)/L0.449XB0.189XH0.126 (inch)
Series resistance	70 Ω
surface mount	YES

Preview

Download Datasheet

View All

Cost effective

Low profile

Pb Free/RoHS Compliant

Tape & Reel (1,000 pcs)

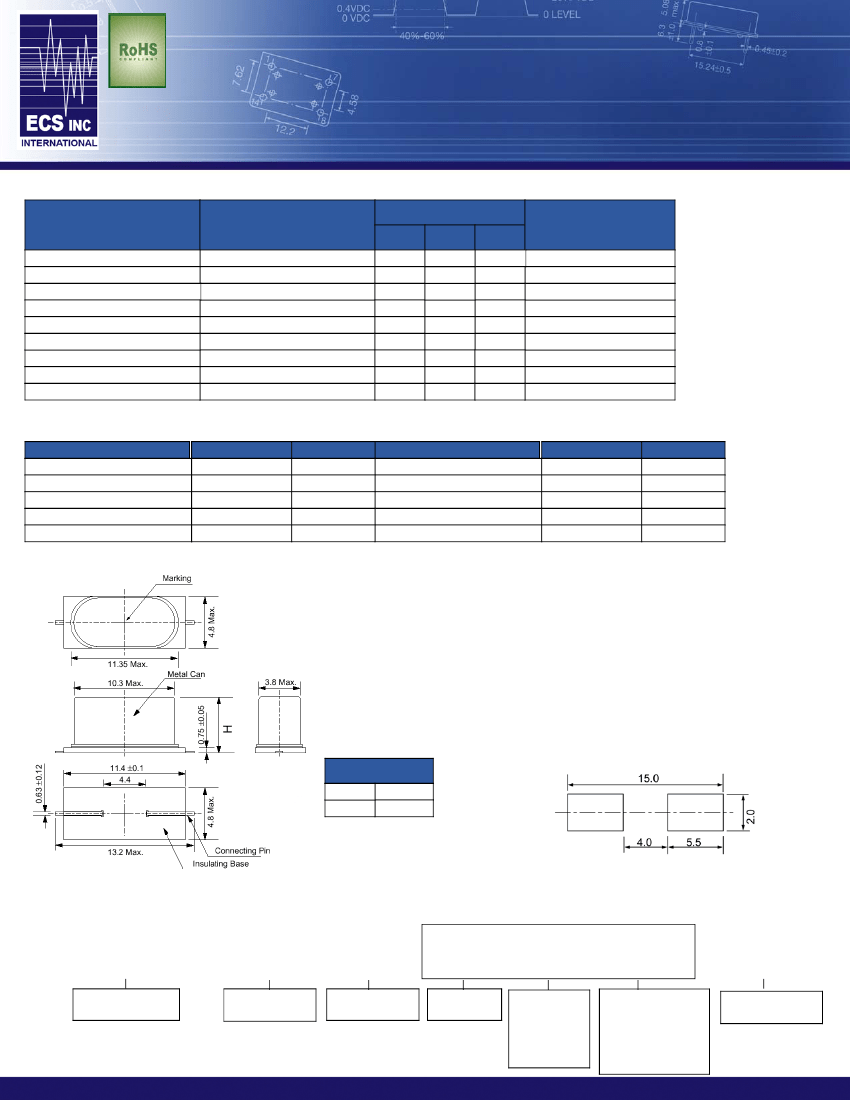

CSM-7X

SMD Quartz Crystal

The CSM-7X is an excellent choice for the SMD versions of the

HC-49USX leaded crystal. The CSM-7X has a case height of

4.3 mm Max in a resistance weld metal package. A package

profile of 3.2 mm Max is also available.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

ref @ 25°C

Shunt Capacitance

Load Capacitance (CL)

Drive Level

Operating Temperature

Storage Temperature

Aging (First Year)

CONDITIONS

at +25°C

Standard -10 to +70°C

Specify in P/N

Standard

@ +25°C ±3°C

CSM-7X

MIN

3.57

TYP

MAX

70.000

± 30

± 50

Series

500

+70

+125

±5

UNITS

MHz

ppm

µW

°C

ppm

-10

-55

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

3.57 ~ 4.999

Fundamental

150

13.000 ~ 19.999

Fundamental

5.000 ~ 5.999

Fundamental

20.000 ~ 30.000

Fundamental

6.000 ~ 6.999

Fundamental

26.000 ~ 39.999

3rd Overtone

100

7.000 ~ 8.999

Fundamental

40.000 ~ 70.000

3rd Overtone

9.000 ~ 12.999

Fundamental

DIMENSIONS (mm)

Height "H" MAX

-5PX

-5PLX

4.3 mm

3.2 mm

Figure 1) Top, Side and Bottom views

Figure 2) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-5PX-TR

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

5PX = 4.3 mm

5PLX = 3.2 mm

Tolerance

A= ±25 ppm

C= ±10 ppm

Custom Options

*Stability

D= ±100 ppm

E= ±50 ppm

G= ±30 ppm

H= ±25 ppm

K= ±10 ppm

Temp Range

L= -10 ~ +70°C

M= -20 ~ +70°C

N= -40 ~ +85°C

P= -40 ~ +105°C

S= -40 ~ +125°C

U= -55 ~+125°C

Packaging

TR= Tape & Reel

1K/Reel

* Consult Factory for available stability

options over extended temp range.

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
