Part Number:
2743009111

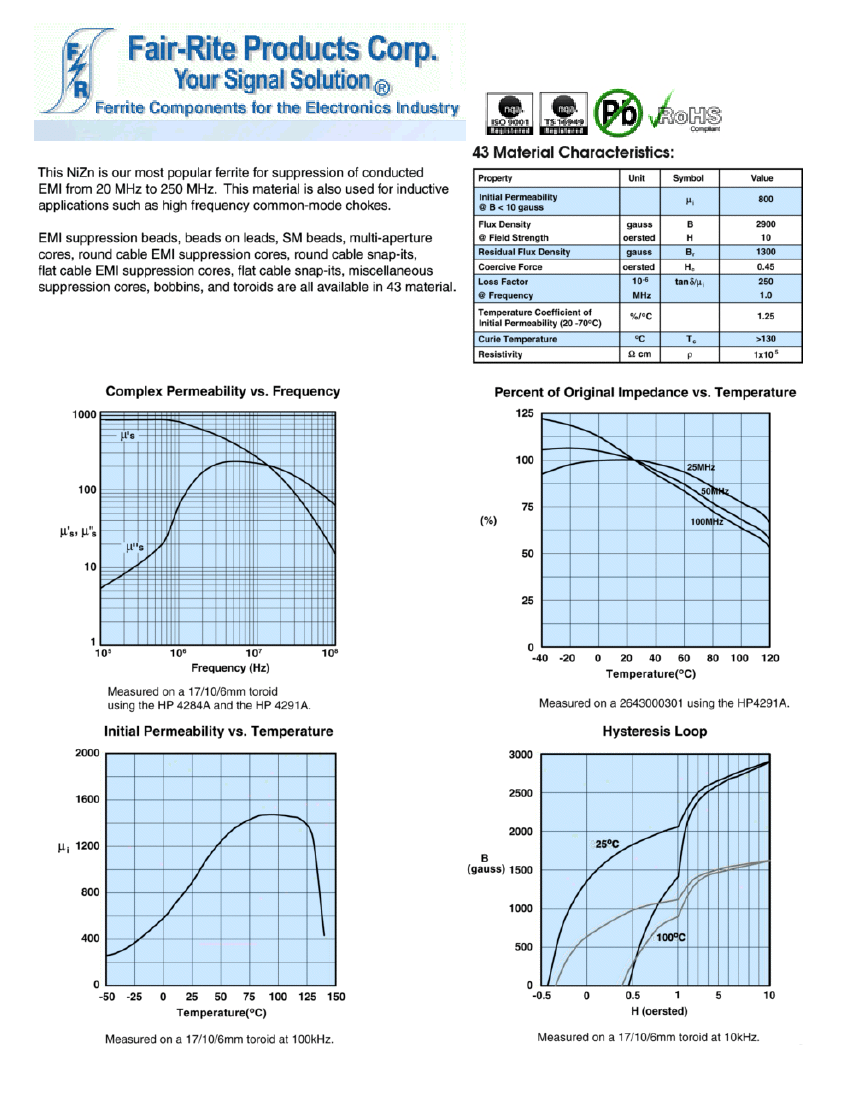

Frequency Range: Broadband Frequencies 25-300 MHz (43 material)
Description:
Application:
Where Used:
Part Type:
Preferred Part:
43 BEAD ON LEAD
Suppression Components
Board Component
Beads-on-Leads

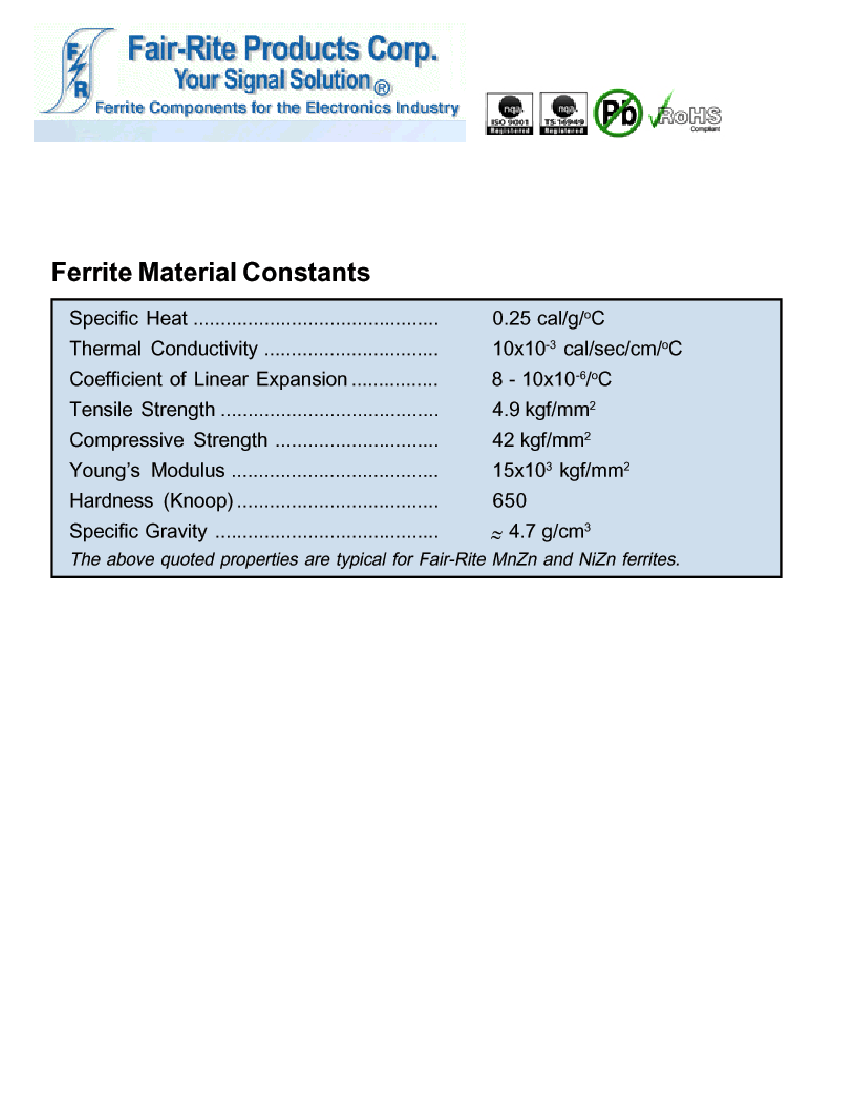

Mechanical Specifications
Weight:
.700
(g)
Part Type Information
Ferrite suppression beads are supplied assembled on tinned copper wire for automated circuit board assembly.
-Parts with a '2' as the last digit of the part number are supplied taped and reeled per IEC 60286-1 and EIA
RS-296-F standards. Taped and reeled parts are supplied 4500 pieces on a 14'' reel. Taping details: Component
pitch 5 mm. Inside tape spacing 52.5 mm. Tape width 6 mm.
-Beads-on-leads can be supplied bulk packed. The last digit of bulk packed parts is a '1'.
-Wires are oxygen free high conductivity copper with a lead-free tin coating. The resistance of the wire is 3.5 mOhm
for the 22 AWG and 2.2 mOhm for the 20 AWG wire.
-Beads-on-leads are controlled for impedances only. The impedances listed are typical values. Minimum impedance values
are specified for the + marked frequencies. The minimum guaranteed impedance is the listed impedance less 20%. The
impedances of the 73 & 43 beads-on-leads are measured on the 4193A Vector Impedance Analyzer. The 61 beads-on-leads
are tested for impedance on the 4191A RF Impedance Analyzer.
-Preferred beads-on-leads are the suggested choice for new designs. Samples are readily available and orders have
typically shorter lead times than other beads-on-leads. For any bead-on lead requirement not listed here, feel free
to contact our customer service group for availability and pricing.
-Our 'Bead-on-Lead Suppression Kit' (part number 0199000028) is available for prototype evaluation.
-Explanation of Part Numbers: Digits 1&2 = product class, 3&4 = material grade and last digit 1 = bulk packed,
2 = taped and reeled.
Fair-Rite Product's Catalog
Part Data Sheet, 2743009111
Printed: 2010-11-09
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com

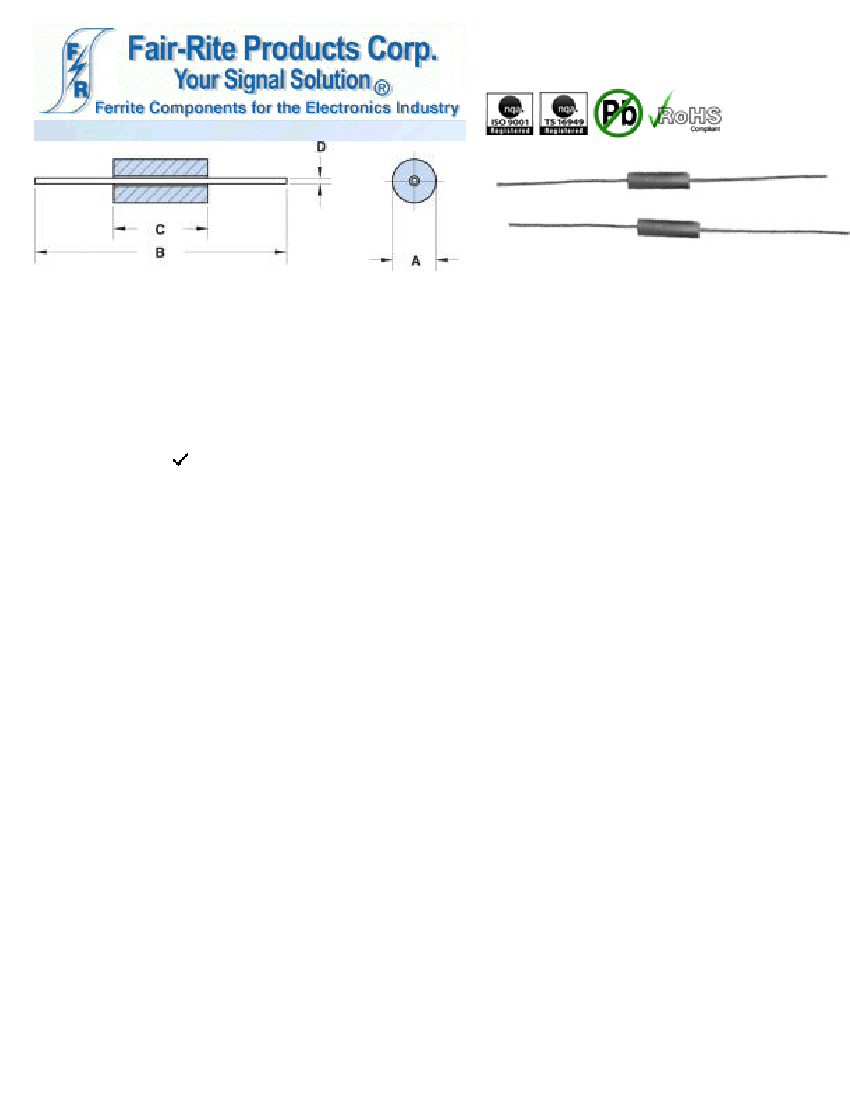

Mechanical Specifications
Dim
mm
mm
tol
A
B
C
D
E
F
G
H
J
K
3.50
62.00
13.80
0.65
-
-
-
-
-
-
±0.25
±1.50
±0.50
-
-
-
-
-
-
-
nominal inch
inch
0.138
2.440
0.545
-
-
-
-
-
-
-
misc.
-
-
-
22 AWG
-
-
-
-
-
-
Land Patterns
V
W
ref
-
-
-
-
-
-
-
-
-
-
X
Y
Z
Winding Information
Turns
Tested
-
-
Wire
Size
-
1st Wire
Length
-
2nd Wire
Length
Reel Information
Tape Width Pitch
mm
-
mm
-
Parts 7 ''
Reel
-
Parts 13 '' Parts 14 ''
Reel
-
Reel
-
Electrical Specifications

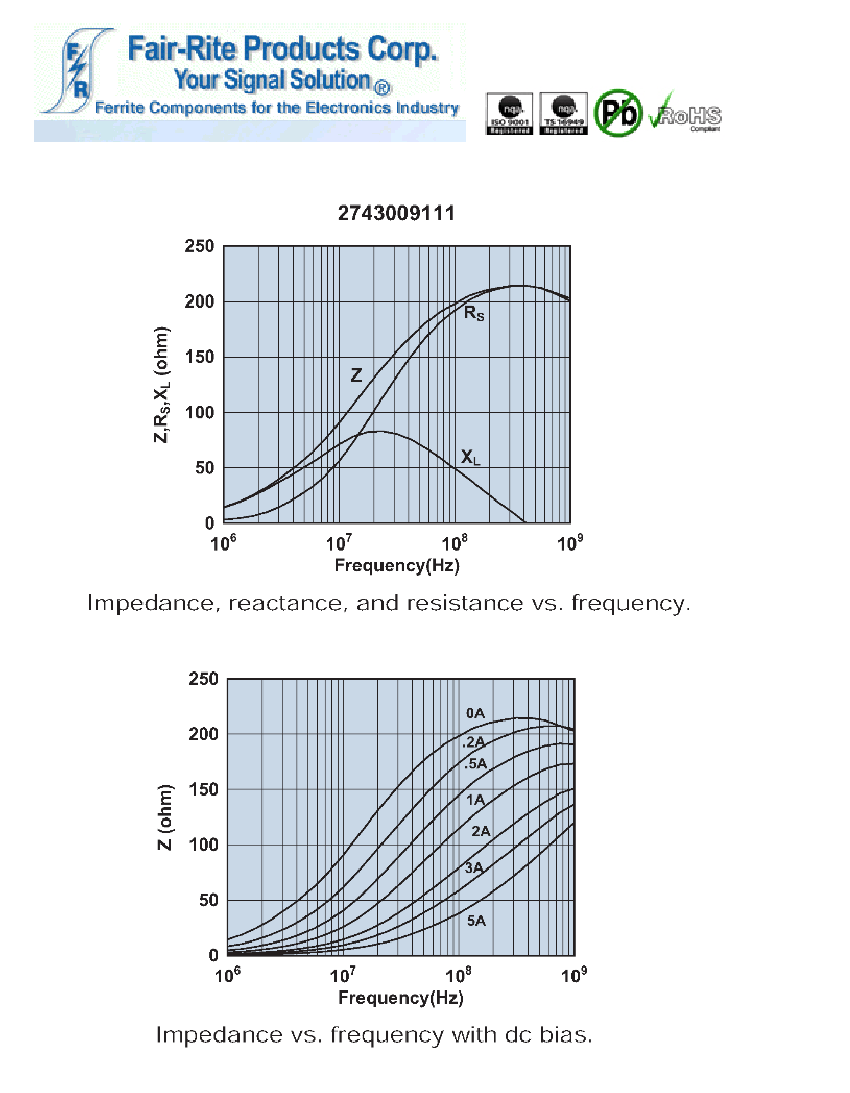

Typical Impedance ( )
10 MHz
25 MHz+
100 MHz+
250 MHz
86
143
220
196
Package Size
Pkg Size
-
(-)
Connector Plate
# Holes
# Rows
-
-
Electrical Properties
Legend
+ Test frequency
Preferred parts, the suggested choice for new designs,have shorter lead times and are more readily available.
The column H(Oe) gives for each bead the calculated dc bias field in oersted for 1 turn and 1 ampere direct current. The actual dc H field in
the application is this value of H times the actual NI (ampere-turn) product. For the effect of the dc bias on the impedance of the bead material,
see figures 18-23 in the application note How to choose Ferrite Components for EMI Suppression.
A ½ turn is defined as a single pass through a hole.
l/A - Core Constant
Ae : Effective Cross-Sectional Area
L
AL - Inductance Factor
(
__ 2
)
N
N/AWG - Number of Turns/Wire Size for Test Coil
l e : Effective Path Length
Ve : Effective Core Volume
Nl - Value of dc Ampere-turns
