Ultra-Low Capacitance TVS Diode Array
AOZ8001DI
General Description
The AOZ8001DI is a transient voltage suppressor array
designed to protect high speed data lines from ESD and
lightning.
This device incorporates four surge rated, low capacitance
steering diodes and a TVS in a single package. During
transient conditions, the steering diodes direct the
transient to either the positive side of the power supply
line or to ground. They may be used to meet the ESD
immunity requirements of IEC 61000-4-2, Level 4.
The TVS diodes provide effective suppression of ESD
voltages: ±15kV (air discharge) and ±8kV (contact
discharge).
The AOZ8001DI comes in a RoHS compliant DFN
1.6mm x 1.6mm package and is rated over a -40°C to
+85°C ambient temperature range. It is compatible with
both lead free and SnPb assembly techniques.
The very small 1.6mm x 1.6mm DFN package makes it
ideal for applications where PCB space is a premium.
The DFN has a flow through package design for an
optimal and user friendly PCB layout design. The small
size, low capacitance and high ESD protection makes
it ideal for protecting high speed video and data
communication interfaces.
Features
ESD protection for high-speed data lines:
–
IEC 61000-4-2, level 4 (ESD) immunity test
–
±15kV (air discharge) and ±8kV (contact discharge)
–
IEC 61000-4-5 (Lightning) 5A (8/20µs)
–
Human Body Model (HBM) ±15kV
Small package saves board space
Low insertion loss
Protects four I/O lines
Low capacitance from IO to Ground: 1.0pF
Low clamping voltage
Low operating voltage: 5.0V
Pb-free device
Green product
Applications
USB 2.0 power and data line protection
Video graphics cards
Monitors and flat panel displays
Digital Video Interface (DVI)
10/100/1000 Ethernet
Notebook computers
Typical Application
USB Controller
+5V
USB Controller
+5V
AOZ8001DI
D+
1
6
D+
2
5
D-
3
4
D-
GND
GND
Figure 1. USB 2.0 High Speed Port
Rev. 1.0 November 2011
www.aosmd.com
Page 1 of 10
AOZ8001DI
Ordering Information
Part Number
AOZ8001DI
Ambient Temperature Range
-40°C to +85°C
Package
DFN 1.6 x 1.6
Environmental
RoHS Compliant
Green Product
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit
www.aosmd.com/web/quality/rohs_compliant.jsp
for additional information.
Pin Configuration
CH1
1
6
NC
VN
2
5
VP
NC
3
4
CH2
DFN-6
(Top View)
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter
VP – VN
Peak Pulse Current (I
PP
), t
P
= 8/20µs
Storage Temperature (T
S
)
ESD Rating per IEC61000-4-2, Contact
(1)
ESD Rating per IEC61000-4-2, Air
(1)
ESD Rating per Human Body Model
(2)
Notes:
1. IEC 61000-4-2 discharge with C
Discharge
= 150pF, R
Discharge
= 330¾.
2. Human Body Discharge per MIL-STD-883, Method 3015 C
Discharge
= 100pF, R
Discharge
= 1.5k¾.
Rating
6V
5A
-65°C to +150°C
±8kV
±15kV
±15kV
Maximum Operating Ratings
Parameter
Junction Temperature (T
J
)
Rating
-40°C to +125°C
Rev. 1.0 November 2011
www.aosmd.com
Page 2 of 10
AOZ8001DI
Electrical Characteristics
T
A
= 25°C unless otherwise specified. Specifications in
BOLD
indicate a temperature range of -40°C to +85°C.
Symbol
V
RWM
V
BR
I
R
V
F
V
CL
Parameter
Reverse Working Voltage
Reverse Breakdown Volt-
age
Reverse Leakage Current
Diode Forward Voltage
Channel Clamp Voltage
Positive Transients
Negative Transient
Channel Clamp Voltage
Positive Transients
Negative Transient
Channel Clamp Voltage
Positive Transients
Negative Transient
Conditions
Between pin 5 and 2
(3)
I
T
= 1mA, between pins 5 and 2
(4)
V
RWM
= 5V, between pins 5 and 2
I
F
= 15mA
I
PP
= 1A, tp = 100ns, any I/O pin to Ground
(5)(7)
Min.
Typ.
Max.
5.5
Units
V
V
6.6
1.0
0.70
0.85
1
10.00
-2.00
µA
V
V
V
V
V
V
V
pF
pF
pF
I
PP
= 5A, tp = 100ns, any I/O pin to Ground
(5)(7)
11.00
-5.00
I
PP
= 12A, tp = 100ns, any I/O pin to Ground
(5)(7)
14.50
-10.50
V
R
= 0V, f = 1MHz, between I/O pins
(6)
V
R
= 0V, f = 1MHz, any I/O pin to Ground
(6)
V
R
= 0V, f = 1MHz, between I/O pins
(5)
0.1
1.0
0.12
1.17
0.03
C
j
C
j
Junction Capacitance
Channel Input Capacitance
Matching
Notes:
3. The working peak reverse voltage, V
RWM
, should be equal to or greater than the DC or continuous peak operating voltage level.
4. V
BR
is measured at the pulse test current I
T
.
5. Measurements performed with no external capacitor on V
P
(pin 5 floating).
6. Measurements performed with V
P
biased to 3.3 Volts (pin 5 @ 3.3V).
7. Measurements performed using a 100ns Transmission Line Pulse (TLP) system.
Rev. 1.0 November 2011
www.aosmd.com
Page 3 of 10
AOZ8001DI

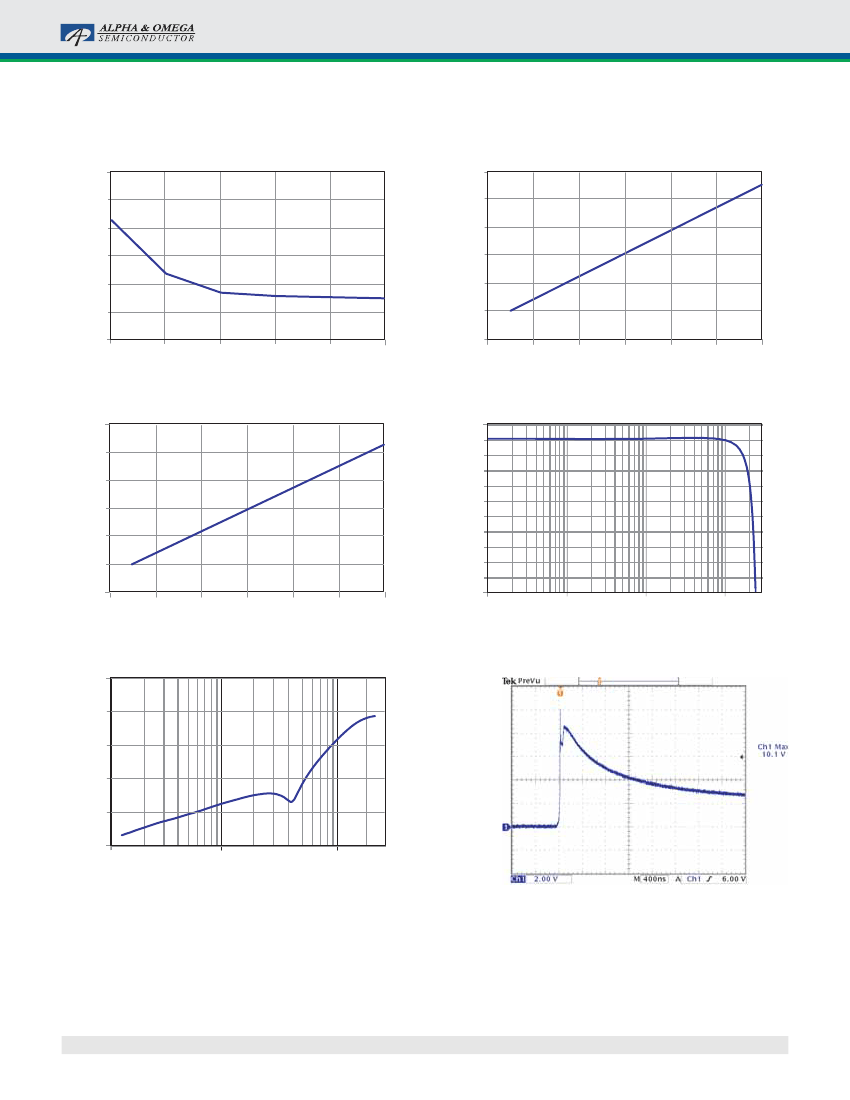

Typical Performance Characteristics
Typical Variation of C
IN
vs V
R
(f = 1MHz, T = 25∞
C)
1.5
Clamping Voltage, V
CL
(V)
Input Capacitance (pF)
1.25
1.0
0.75
0.50
0.25
0
0
1
2
3
4
5
Input Voltage (V)
Vp = 3.3V
Clamping Voltage vs. Peak Pulse Current
(tperiod = 100ns, tr = 1ns)
15
14
13
12
11
10
9
0
2
4
6
8
Peak Pulse Current, I
PP
(A)
10
12
Forward Voltage vs. Forward Current
(tperiod = 100ns, tr = 1ns)
12
10
Forward Voltage (V)
8
6
4
2
0
0
2
4
6
8
10
12
Forward Current (A)
Insertion Loss (dB)
1
0
-1
-2
-3
-4
-5
-6
-7
-8
-9
-10
1
I/O – Gnd Insertion Loss (S21) vs. Frequency
(Vp = 3.3V)
10
100
Frequency (MHz)
1000
Analog Crosstalk (I/O–I/O) vs. Frequency
20
0
-20
-40
-60
-80
10
100
Frequency (MHz)
1000
ESD Response (8kV Contact per IEC61000-4-2)
Insertion Loss (dB)
Rev. 1.0 November 2011
www.aosmd.com
Page 4 of 10
AOZ8001DI
Application Information
The AOZ8001DI TVS is design to protect two data lines
from fast damaging transient over-voltage by clamping it
to a reference. When the transient on a protected data
line exceed the reference voltage the steering diode is
forward bias thus, conducting the harmful ESD transient
away from the sensitive circuitry under protection.
PCB Layout Guidelines
Printed circuit board layout is the key to achieving the
highest level of surge immunity on power and data lines.
The location of the protection devices on the PCB is the
simplest and most important design rule to follow. The
AOZ8001DI devices should be located as close as possi-
ble to the noise source. The placement of the
AOZ8001DI devices should be used on all data and
power lines that enter or exit the PCB at the I/O connec-
tor. In most systems, surge pulses occur on data and
power lines that enter the PCB through the I/O connector.
Placing the AOZ8001DI devices as close as possible to
the noise source ensures that a surge voltage will be
clamped before the pulse can be coupled into adjacent
PCB traces. In addition, the PCB should use the shortest
possible traces. A short trace length equates to low
impedance, which ensures that the surge energy will be
dissipated by the AOZ8001DI device. Long signal traces
will act as antennas to receive energy from fields that are
produced by the ESD pulse. By keeping line lengths as
short as possible, the efficiency of the line to act as an
antenna for ESD related fields is reduced. Minimize inter-
connecting line lengths by placing devices with the most
interconnect as close together as possible. The protec-
tion circuits should shunt the surge voltage to either the
reference or chassis ground. Shunting the surge voltage
directly to the IC’s signal ground can cause ground
bounce. The clamping performance of TVS diodes on a
single ground PCB can be improved by minimizing the
impedance with relatively short and wide ground traces.
The PCB layout and IC package parasitic inductances
can cause significant overshoot to the TVS’ clamping
voltage. The inductance of the PCB can be reduced by
using short trace lengths and multiple layers with
Protected IC
separate ground and power planes. One effective
method to minimize loop problems is to incorporate a
ground plane in the PCB design. The AOZ8001DI
ultra-low capacitance TVS is designed to protect four
high speed data transmission lines from transient
over-voltages by clamping them to a fixed reference.
The low inductance and construction minimizes voltage
overshoot during high current surges. When the voltage
on the protected line exceeds the reference voltage the
internal steering diodes are forward biased, conducting
the transient current away from the sensitive circuitry.
Good circuit board layout is critical for the suppression
of ESD induced transients. The following guidelines are
recommended:
1. Place the TVS near the IO terminals or connectors to
restrict transient coupling.
2. Fill unused portions of the PCB with ground plane.
3. Minimize the path length between the TVS and the
protected line.
4. Minimize all conductive loops including power and
ground loops.
5. The ESD transient return path to ground should be
kept as short as possible.
6. Never run critical signals near board edges.
7. Use ground planes whenever possible.
8. Avoid running critical signal traces (clocks, resets,
etc.) near PCB edges.
9. Separate chassis ground traces from components
and signal traces by at least 4mm.
10. Keep the chassis ground trace length-to-width ratio
<5:1 to minimize inductance.
11. Protect all external connections with TVS diodes.
Connector
D+
D+
D-
Flow Through Layout
D-
Rev. 1.0 November 2011
www.aosmd.com
Page 5 of 10
