MA-406FREQ1-Y0

Description
QUARTZ CRYSTAL RESONATOR, 4 MHz - 5.5 MHz
CategoryPassive components    Crystal/resonator
File Size34KB,2 Pages
ManufacturerSeiko Epson Corporation
Download Datasheet Parametric View All

MA-406FREQ1-Y0 Overview

QUARTZ CRYSTAL RESONATOR, 4 MHz - 5.5 MHz

MA-406FREQ1-Y0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerSeiko Epson Corporation
Reach Compliance Codeunknown
Ageing5 PPM/FIRST YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level10 µW
frequency stability0.005%
frequency tolerance50 ppm
load capacitance14 pF
Manufacturer's serial numberMA-406
Installation featuresSURFACE MOUNT
Maximum operating frequency5.5 MHz
Minimum operating frequency4 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
physical sizeL11.7XB4XH3.5 (mm)
surface mountYES

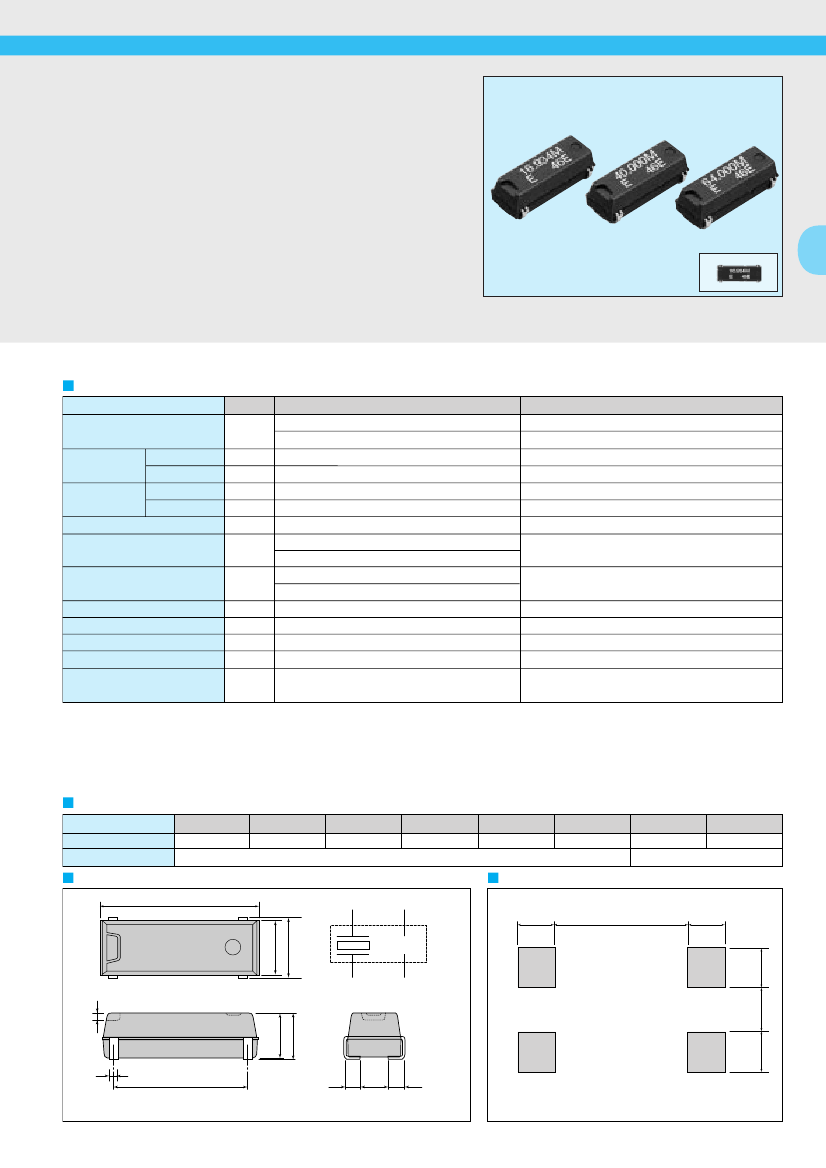

Crystal unit
SMD HIGH-FREQUENCY CRYSTAL UNIT
MA-406
Products number
Q2 2MA 4 0 6 x x x x x 0 0
• High-density mounting-type SMD.
• Excellent heat-resistance and environment capability.
• Cover a wide frequency range, from 4 MHz to 64 MHz.
Actual size
Specifications (characteristics)
Item
Symbol
f
T
STG
T
OPR
GL
DL
f/f
Specifications
4.000 MHz to 29.999 MHz
30.000 MHz to 64.000 MHz
Remarks
Nominal frequency
Temperature
range
Drive level
Storage temperature
Operating temperature
Maximum drive level
Recommended drive level
∗1
∗2
Fundamental mode
3rd overtone mode
Stored as bare product after unpacking
Please contact us on availability of -40 °C to +85 °C
Only crystal oscillation is guaranteed
Ta=+25 °C±3 °C
-55 °C to +125 °C
-20 °C to +70 °C
2 mW
10 µW to 100 µW
±50 x 10
-6
Under 5.5 MHz: ±50 x 10
-6
Frequency tolerance (standard)
Frequency temperature characteristics
(standard)
Load capacitance
Series resistance
Shunt capacitance
Insulation resistance
Aging
Shock resistance
Over 5.5 MHz: ±30 x 10
-6
Fundamental: 10 pF to
C
L
R
1
C
0
IR
fa
S.R.
Over tone: 5 pF to
As per table below
5 pF Max.
500 MΩ Min.
±5 x 10
-6
/ year
±10 x 10
-6
Max.
-20 °C to +70 °C
Please specify
-20 °C to +70 °C , DL=100 µW
Ta=+25 °C ±3 °C , first year
T
hree drops on a hard board from 750 mm or excitation test
with 29400 m/s
2
x 0.3 ms x 1/2 sine wave x 3 directions
∗1
8.0 MHz < f < 8.2 MHz: Unavailable.
=
4.0 MHz
<
f < 5.5 MHz : See "Available frequencies form 4.0 MHz to less than 5.5 MHz" on page 22.
∗2
26.000
MHz
f <30.000 MHz :please contact us for inquiries for 3rd overtone mode.
Metal may be exposed on the top of this product. This won't affect any quality, reliability or electrical spec.
Series resistance
Frequency (MHz)
Series resistance (Ω)
4.0
f < 5.5
150
Max.
5.5
f < 6.0
100
Max.
6.0
f < 10.0
80
Max.
10.0
f < 12.0
60
Max.
12.0
f < 16.0
50
Max.
16.0
f < 30.0
40
Max.
26.0
f
36.0
100
Max.
36.0 < f
64.0
80
Max.
Oscillation mode
Fundamental mode
(Unit: mm)
3rd overtone mode
External dimensions
11.7 Max.
#4
#3
Recommended soldering pattern
1.8
7.8
1.8
(Unit: mm)
Internal connection
#4
4.8 Max.
#3
#1
#2
#2
#1
0.5
3.7 Max.
3.5
0.7
9.6
(1.2)
2.1
(1.2)
Do not connect #2 and #3 external device.
1.9
1.7
1.9
20.000M
E
572
4.0
28
