R197110H00 datasheet, PDF - EEWORLD Datasheet

R197110H00: DescriptionRF SMB Connector, Female, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R197110H00 Overview

RF SMB Connector, Female, Cable Mount, Crimp Terminal, Plug

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Other features	STANDARDS: MIL-C-39012; DIN EN 122130; IEC 169-10, INSERTION LOSS MAX AT 2 GHZ, VSWR MAX AT 4 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	YES
Filter function	NO
IEC compliance	YES
Insertion loss	0.7 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	SMB
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.25

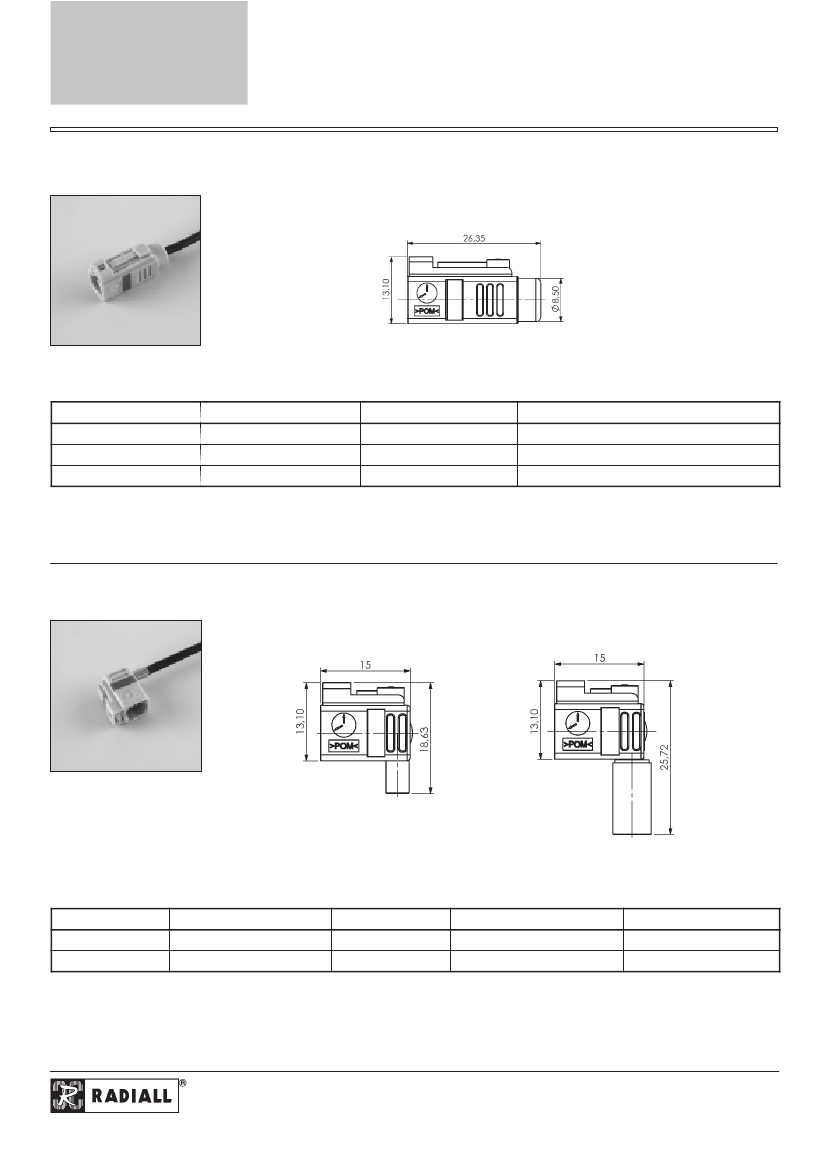

60% &$5/2&.
