RMC-E9M2Y-OM02-MA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> RMC-E9M2Y-OM02-MA

Preview

RMC-E9M2Y-OM02-MA: DescriptionPCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric Compare View All

RMC-E9M2Y-OM02-MA Overview

PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,

RMC-E9M2Y-OM02-MA Parametric

Parameter Name	Attribute value
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Other features	POLARIZATION AVAILABLE
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

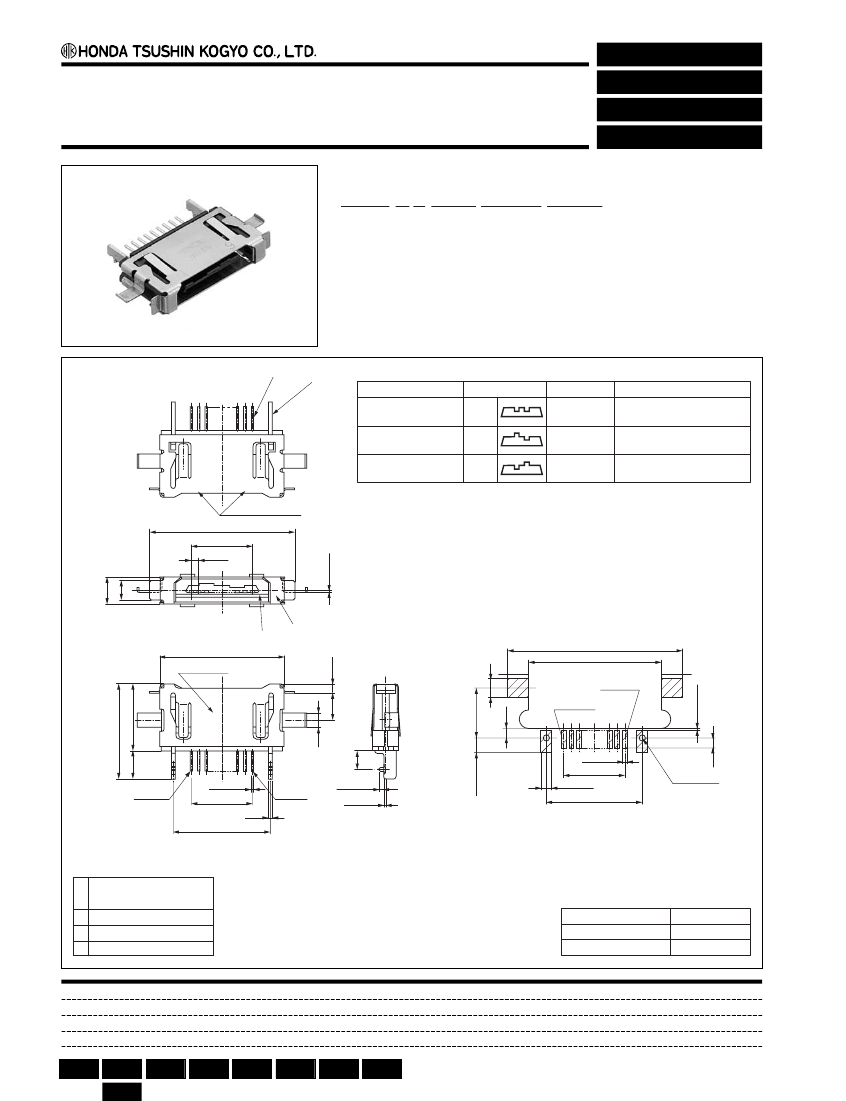

Connector for CF/PC card

Right-angle SMT type 9-contacts male board connector

RMC-E9M2Y-OM( )-MA( )

●

Configuration of product Part No.

For PCB

Right-angle SMT

RMC- E 9 M2Y- OM( )- MA( )

➀

➁ ➂

➃

➄

➅

➀

Series name

➁

E: EMI-filtered

➂

No. of contacts: 9

➃

M2Y: SMT type, male

➄

Off-set

OM02: 0.2 mm

OM03: 0.3 mm

➅

MA( ): Forms and position of polarization key

➁

●

Position of polarization key

Part No.

RMC-E9M2Y-OM( )-MA

RMC-E9M2Y-OM( )-MA1

HONDA

J A PA N

1

9

Contact POS. No.

15.2

0.8≈8=6.4

Off-set

0.8

2.8

➀

Key position

-

Marking

A

A1

A2

Mating connectors

RMC-E9FS-BSLA( )N-MA( )

RMC-E9F2S-BSLA( )N-MA( )

RMC-E9FS-BSLA( )N-MA2

RMC-E9F2S-BSLA( )N-MA2

RMC-E9FS-BSLA( )N-MA1

RMC-E9F2S-BSLA( )N-MA1

1

2

RMC-E9M2Y-OM( )-MA2

2

➂

13

Marking

➃

0.95

18.4 REF.

±0.1

14

2

0.2 MAX.

ø0.65

(Through hole)

±0.05

POS.#1

2.8

6.95

±0.1

9.95 REF.

5.2

1.5

1

0

-0.1

0.3 REF.

POS.#1

0.8≈8=6.4

0.4

10.1

POS.#9

0.5 REF.

Off-set

1.5 REF.

3

10.1

±0.05

PCB layout for reference only

t= 0.5 mm

●

Components

➀

Locking devise used with

hold-down

➁

Male contacts

➂

Insulator

➃

Shell

Ω Some models may not be quickly supplied depending on

the contiguration of part number (key position and off-set

dimension). For the availability of the model reguired,

consult your supplier.

Ω Connectors without positioning mechanism are also

available, please contact us.

Ω This small sized I/O connector can be used for devices

such as PC cards and CF cards, etc.

●

Dimensions

Part No.

RMC-E9M2Y-OM02-MA( )

RMC-E9M2Y-OM03-MA( )

Off-set

0.2

0.3

Mating connectors:

Refer to the table Shown

DIP

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

(1)

2

A1

02

POS.#9

0.5 REF.

0.8≈8=6.4

±0.1

1.2 REF.

RMC-E9M2Y-OM02-MA Related Products

	RMC-E9M2Y-OM02-MA	RMC-E9M2Y-OM02-MA1	RMC-E9M2Y-OM02-MA2	RMC-E9M2Y-OM03-MA1	RMC-E9M2Y-OM03-MA2	RMC-E9M2Y-OM03-MA
Description	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE	POLARIZATION AVAILABLE
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	YES	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	9	9	9	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
