Passively Cooled Diode Laser Bar
SPL MNxx
Only available in North America

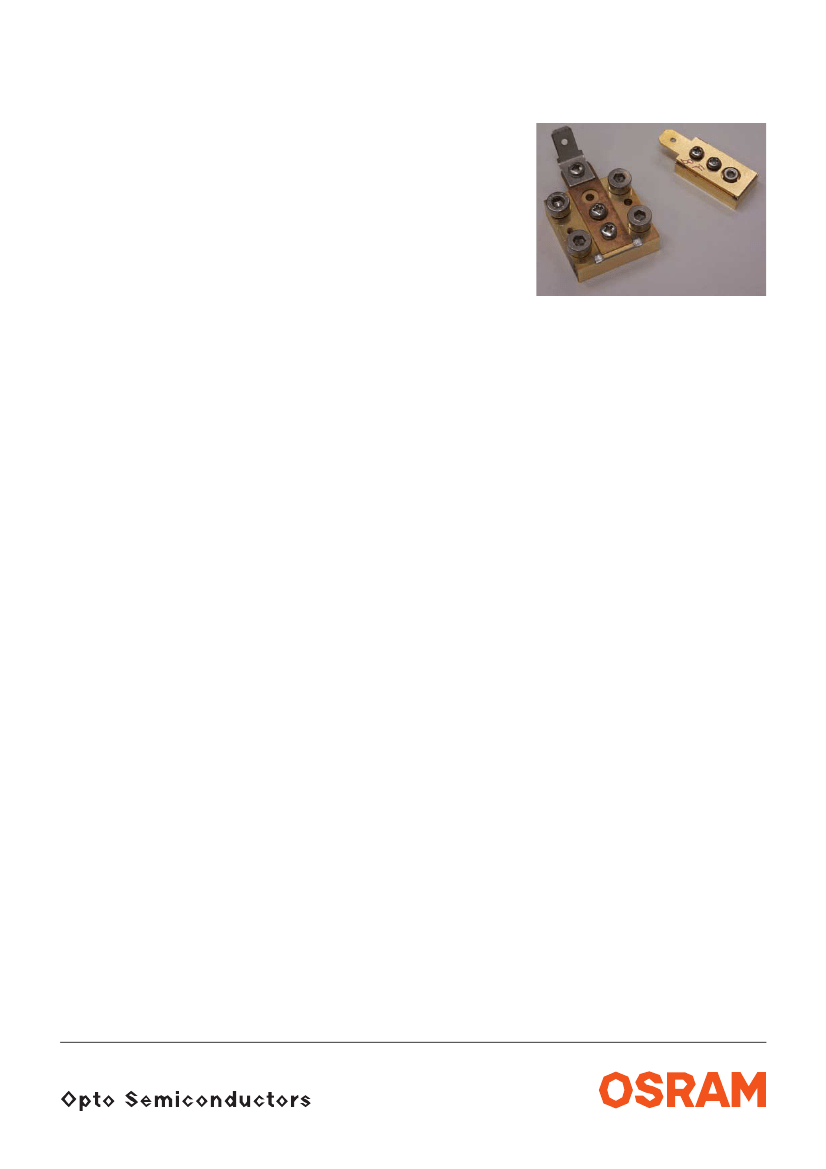

SP-pack. (left), DL-pack. (right)
Features
• Uncollimated (MN-series)
• 1 cm-laser bar mounted on passive heat sink,
no water required
• Highly reliable strained layer InGa(Al)As/GaAs
material
• Standard wavelength selection is
±
3 nm, others
on request
• Low smile (< 1
µm)
and low mechanical
tolerances
Applications
• Pumping of solid state lasers (Nd: YAG,
Yb: YAG, …)
• Direct industrial applications (soldering, surface
treatment, marking, …)
• Heating, illumination
• Medical and printing applications
Safety Advices
Depending on the mode of operation, these
devices emit highly concentrated non visible
infrared light which can be hazardous to the
human eye. Products which incorporate these
devices have to follow the safety precautions
given in IEC 60825-1 “Safety of laser products”.
2004-11-29
1
SPL MNxx
Recommended Types
1)
Wavelength
2)
SPL MN81-G
SPL MN94-G
SPL MN98-G
1)
2)
Max. Output Power
40 W, cw
40 W, cw
40 W, cw
Ordering Code
Q62702P5312
on request
on request
808 nm
940 nm
980 nm
The Standard is a SP-package. For lower output powers a package with smaller footprint is available (DL-package).
Other Wavelengths in the range of 780 nm ... 980 nm are available on request.
Maximum Ratings
(
T
A
= 20
°
C mount temperature)
Parameter
Operating temperature
1)
Storage temperature
1)
1)
Symbol
min.
Values
max.
30
60
10
0
Unit
°
C
°
C
T
op
T
stg
Lowering the diode laser temperature below 15°C is only suitable in a closed housing with dry inert atmosphere (e.g.) nitrogen.
Condensation of water or other liquids irreversibly damages the diode lasers and must be avoided
.
Storage and shipping of diode lasers must be done with shortened electrical contacts and in a clean and dry atmosphere in a
temperature range of 0°C up to 60°C.
2004-11-29
2
SPL MNxx
Characteristics
(
T
A
= 20
°
C mount temperature, 808nm)
Parameter
Output power
1)
Wavelength
2)
Symbol
min.
SP-pack.
P
op
λ
–
–
–
–
–
–
–
Values
typ.
40
808
940
975
3
15
1
50
1.8
40
35°
×
6°
0.8
0.27
25
×
25
×
12
12
×
22
×
8
max.
–
–
–
–
4
17
1.05
55
2
W
nm
Unit
Spectral width (FWHM)
2)
Threshold current
1)
Differential efficiency uncollimated
1)
Operating current
1)
Operating voltage
1)
Conversion efficiency
1)
Beam divergence 1/e
2) 3)
Thermal resistance
4)
Mount dimensions
1)
2)
3)
4)
∆λ
SP-pack.
I
th
η
d
SP-pack.
I
op
nm
A
W/A
A
–
–
–
V
op
η
c
MN-series
θ
⊥
× θ
||
SP-pack.
R
th
∆λ / ∆
T
SP-pack.
w
×
d
×
h
DL-pack.
V
%
deg.
K/W
nm/K
mm
–
Temperature coefficient of wavelength
The values are valid for 808 nm at 20°C mount temperature.
The wavelength refers to the specified typical output power at 20°C mount temperature.
Far field divergence refers to half angle at 1/e
2
relative intensity.
The thermal resistance of DL package is 1 K/W.
2004-11-29
3
SPL MNxx
Package Outlines (DL-type package)
DIN 74 - K m 2.5
5 (0.197)
AMP - contact
12 (0.472)
6 (0.236)
22 (0.866)
30 (1.181)
Base of package is anode (+)
8 (0.315)
Laser
output
GWOY6039
Dimensions are specified as follows: mm (inch).
2004-11-29
