BTS115 datasheet, PDF - EEWORLD Datasheet

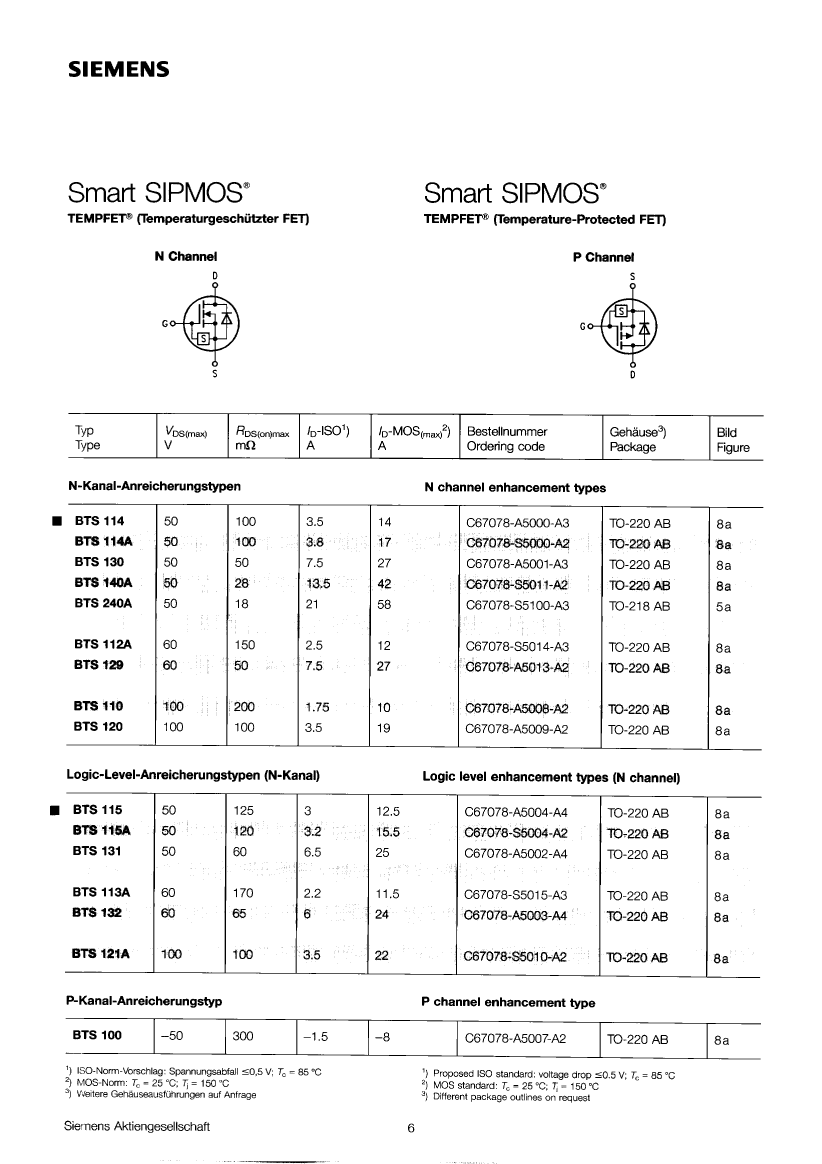

BTS115: DescriptionPower Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,; CategoryDiscrete semiconductor The transistor; File Size51KB，1 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BTS115 Overview

Power Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,

Parameter Name	Attribute value
Maker	Infineon
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	50 V
Maximum drain current (Abs) (ID)	12.5 A
Maximum drain current (ID)	12.5 A
Maximum drain-source on-resistance	0.125 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	50 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

	BTS115
Description	Power Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB,
Maker	Infineon
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	50 V
Maximum drain current (Abs) (ID)	12.5 A
Maximum drain current (ID)	12.5 A
Maximum drain-source on-resistance	0.125 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	50 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
