WRA-YMD-5W
＆
WRB-YMD-5W
Series
WIDE INPUT,ISOLATED & REGULATED Dual/Single Output DC/DC Converter
SELECTION GUIDE
order code
WRB0503YMD-1200
WRB0505YMD-5W
WRB0512YMD-5W
Input Voltage(VDC)
Voltage(VDC)
4.5 - 9
4.5 - 9
4.5 - 9
4.5 - 9
4.5 - 9
9 - 18
9 - 18
9 - 18
9 - 18
9 - 18
18 - 36
18 - 36
18 - 36
18 - 36
18 - 36
36 - 72
36 - 72
36 - 72
36 - 72
36 - 72
4.5 - 9
4.5 - 9
4.5 - 9
9 - 18
9 - 18
9 - 18
18 - 36
18 - 36
18 - 36
36 - 72
36 - 72
36 - 72
Output Voltage(VDC)
Voltage(VDC)
3.3
5
12
15
24
3.3
5
12
15
24
3.3
5
12
15
24
3.3
5
12
15
24
±5
±12
±15
±5
±12
±15
±5
±12
±15
±5
±12
±15
Output Current(mA)
1200
1000
420
330
210
1200
1000
420
330
210
1200
1000
420
330
210
1200
1000
420
330
210
±500
±200
±160
±500
±200
±160
±500
±200
±160
±500
±200
±160
Notes
FEATURES
◆
RoHS compliant
◆
Efficiency up to 86%
◆
1"X1" DIP Package
◆
Wide temperature performance at full
WRB0515YMD-5W
WRB0524YMD-5W
WRB1203YMD-1200
WRB1205YMD-5W
WRB1212YMD-5W
WRB1215YMD-5W
WRB1224YMD-5W
WRB2403YMD-1200
WRB2405YMD-5W
WRB2412YMD-5W
WRB2415YMD-5W
WRB2424YMD-5W
WRB4803YMD-1200
WRB4805YMD-5W
WRB4812YMD-5W
WRB4815YMD-5W
WRB4824YMD-5W
WRA0505YMD-5W
WRA0512YMD-5W
WRA0515YMD-5W
WRA1205YMD-5W
WRA1212YMD-5W
WRA1215YMD-5W
WRA2405YMD-5W
WRA2412YMD-5W
WRA2415YMD-5W
WRA4805YMD-5W
WRA4812YMD-5W
WRA4815YMD-5W
5 Watt load,-40°C to 85°C
◆
UL 94V-0 package material
◆
No heatsink required
◆
Low ripple and good EMC Features
◆
Industry standard pinout
◆
Power sharing on output
◆
I/O Isolation 1500VDC
◆
Short Circuit Protection(
automatic recovery
)
◆
Metal case package
◆
MTBF>1000000 hours
MODEL SELECTION
①
②
③ ④
⑤
⑥
⑦
WRB 24 05 Y M D -5W(1000)
①Product
Series
②Input
Voltage
③Output
Voltage
④Wide
(2:1) Input Range
⑤Metal
Shield
⑥
1"X1"
DIP Package
⑦Rated
Power(Output current)
*Input voltage can't exceed this value,or will cause the permanent damage.
Input
Min
Nom
Max
4.5
Input Voltage
9
18
36
Output
Setpoint Accuracy
Line Regulation
Load Regulation
Dynamic Response
Ripple and Noise
Temperature coefficient
General
Isolation Voltage
Switching Frequency
Efficiency
MTBF
Case Temperature
-25℃
-43℃
-40℃
10%
Min
500Vdc
300KHZ
82%
10X10
5
h
+85℃
+105℃
+125℃
90%
±0.02%/℃
Nom
Max
Min
6
12
24
48
Nom
9
18
36
72
Max
±1%
±3%
±0.2%
±0.5%
3%Vo Pk deviation
200 settling time
50mVp-p
100mVp-p
DESCRIPTION
The WRA_YMD-5W& WRB_YMD-5W series are specially
designed for applications where a group of polar power
supplies are isolated from the input power supply in a
distributed power supply system on a circuit board.
These products apply to:
1) where the voltage of the input power supply is wide
range (voltage range ≤2:1);
2) where isolation is necessary between input and output
(isolation voltage ≤1500VDC);
3) where the regulation of the output voltage and the
output ripple noise are demanded.
Notes
Vo1
Vo2
50~75% load
50~25% load
Vo 5Vdc
Other
Notes
Input-Output
Input-Case
Output-Case
typ
Bellcore ,25℃
Military
MICRODC reserves the copyright
Storage Temperature
Relative Humidity
*Input voltage can't exceed this value,or will cause the permanent damage.
http://www.microdc.cn
Technical Enquiries-Email:tech@microdc.cn Tel:0086-20-86000646
Page 1 of 2
WRA-YMD-5W
＆
WRB-YMD-5W
Series

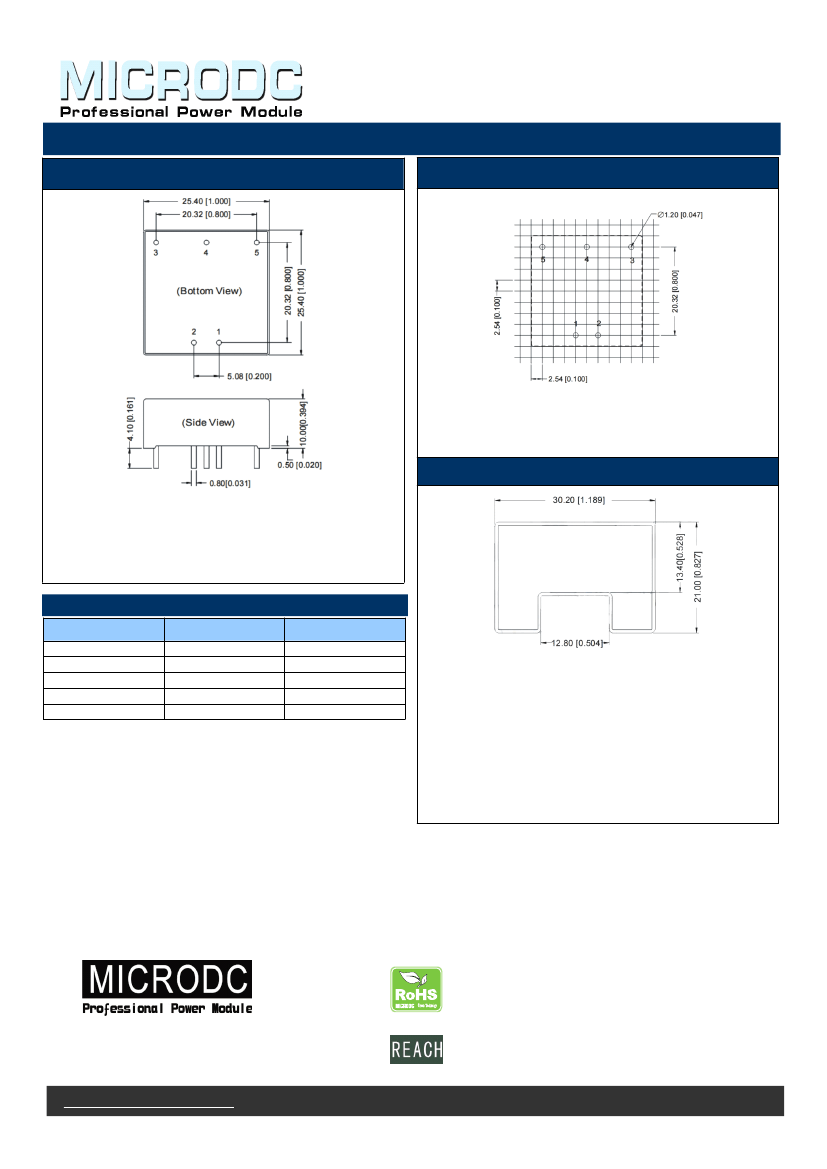

OUTLINE DIMENSIONS
＆
FOOTPRINT DETAILS
MECHANICAL DIMENSIONS
RECOMMENDED FOOTPRINT
Dual/Single Output
RECOMMENDED FOOTPRINT
Top view,grid:2.54mm(0.1inch)
diameter:1.00mm(0.039inch)
TUBE OUTLINE DIMENSIONS
Note:
Unit:mm[inch]
Pin section tolerances:±0.10mm[±0.004inch]
General tolerances:±0.25mm[±0.010inch]
FOOTPRINT DETAILS
Pin
1
2
3
4
5
Single
GND
Vin
+V0
NC
0V
Dual
GND
Vin
+V0
0V
-V0
Note:
Unit :mm[inch]
General tolerances:
±0.50mm[±0.020inch]
L=530mm[20.866inch] Tube Quantity: 19pcs
L=220mm[8.661inch]
Tube Quantity: 7pcs
When the environment temperature is higher than 71°C, the product output ower
71°
should be less then 60% of the rated power.
No parallel connection or plug and play.
Use dual output simultaneously, forbid opening output pin (0V) to use as single
output.
NC:No connection
Note:
1.The load shouldn't be less than 10%, otherwise ripple will increase dramatically.
2.Operation under 10% load will not damage the converter; However, they may not meet all specification listed.
3.All specifications measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless otherwise
specified.
4.In this data sheet, all the test methods of indications are based on corporate standards.
5.Only typical models listed, other models may be different, please contact our technical person for more details.
RoHS COMPLIANT INFORMATION
This series is compatible with RoHS soldering systems with a peak wave solder temperature
of 300°C for 10 seconds.
The pin termination finish on the SIP package type is Tin Plate, Hot Dipped over Matte Tin
with Nickel Preplate. The DIP types are Matte Tin over Nickel Preplate. Both types in this
series are backward compatible with Sn/Pb soldering systems.
Microdc Professional Power Module,Inc.
Tel:0086-20-86000646
E-mail:tech@microdc.cn
Website:http://www.microdc.cn
REACH COMPLIANT INFORMATION
This series has proven that this product does not contain harmful chemicals, it also has
harmful chemical substances through the registration, inspection and approval.
http://www.microdc.cn
Technical Enquiries-Email:tech@microdc.cn Tel:0086-20-86000646
Page 2 of 2
