AD1860R-J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD1860R-J

AD1860R-J: DescriptionIC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDSO16, PLASTIC, SOIC-16, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size429KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

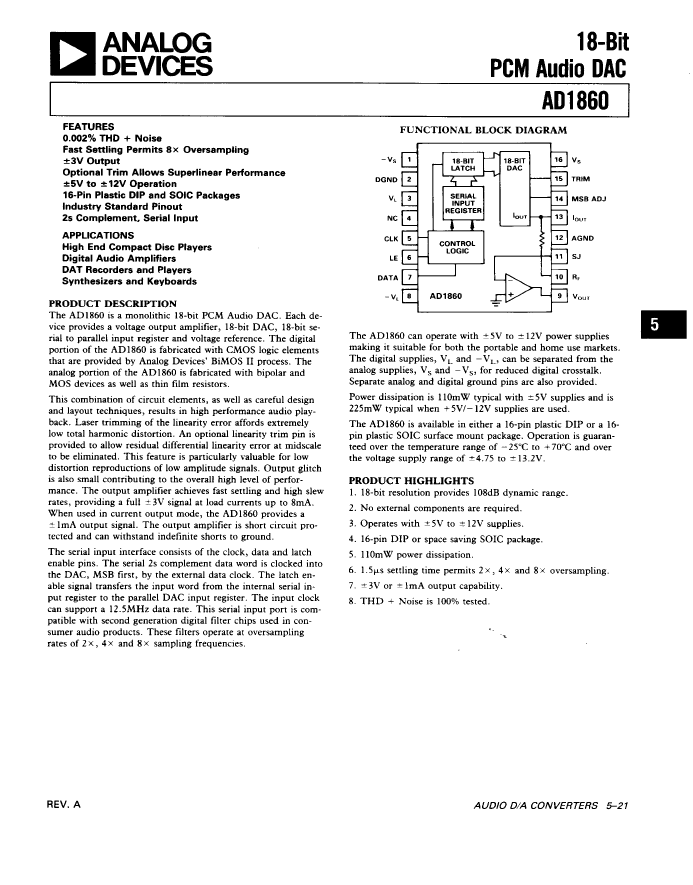

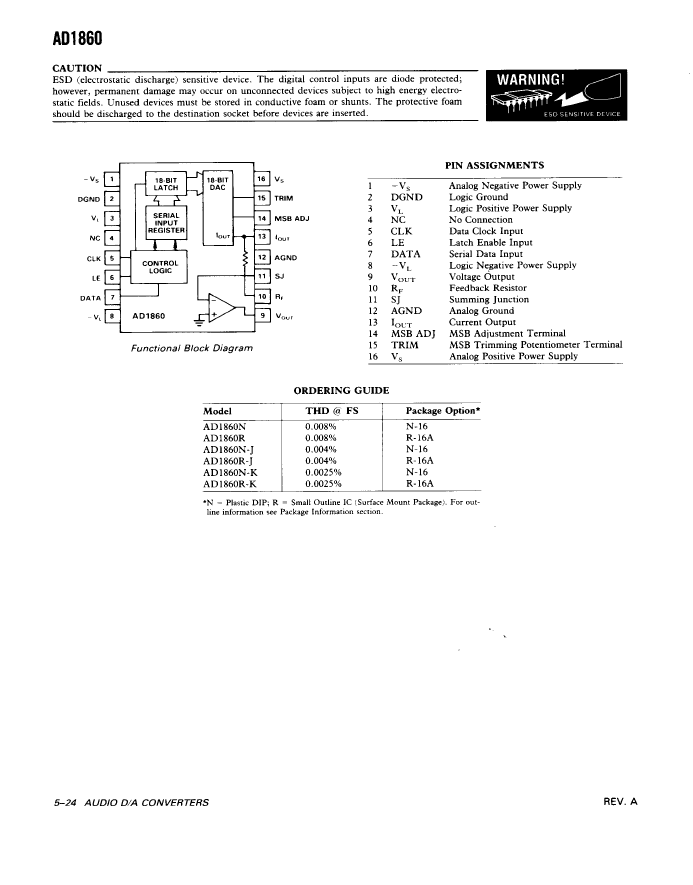

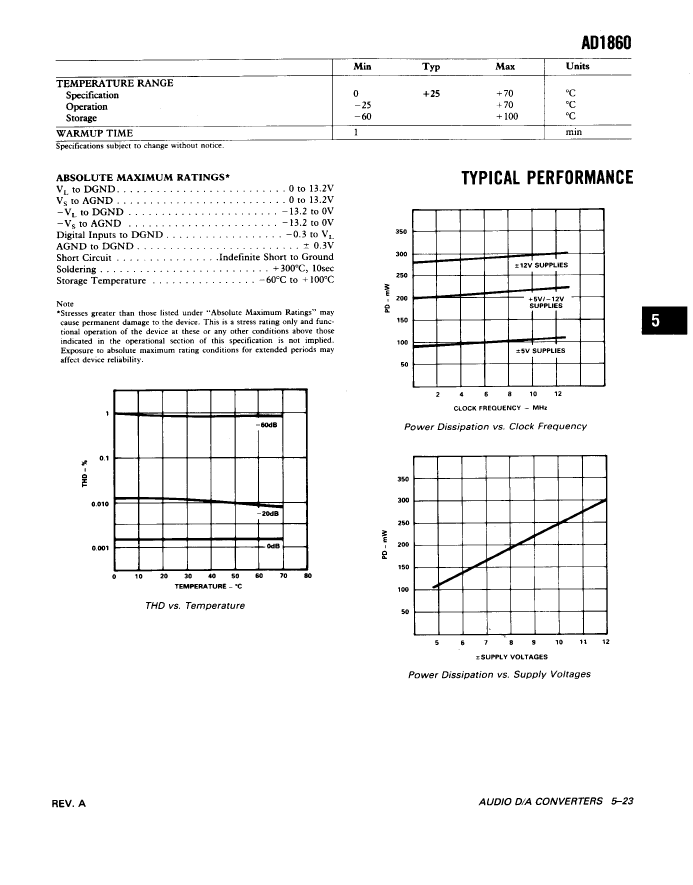

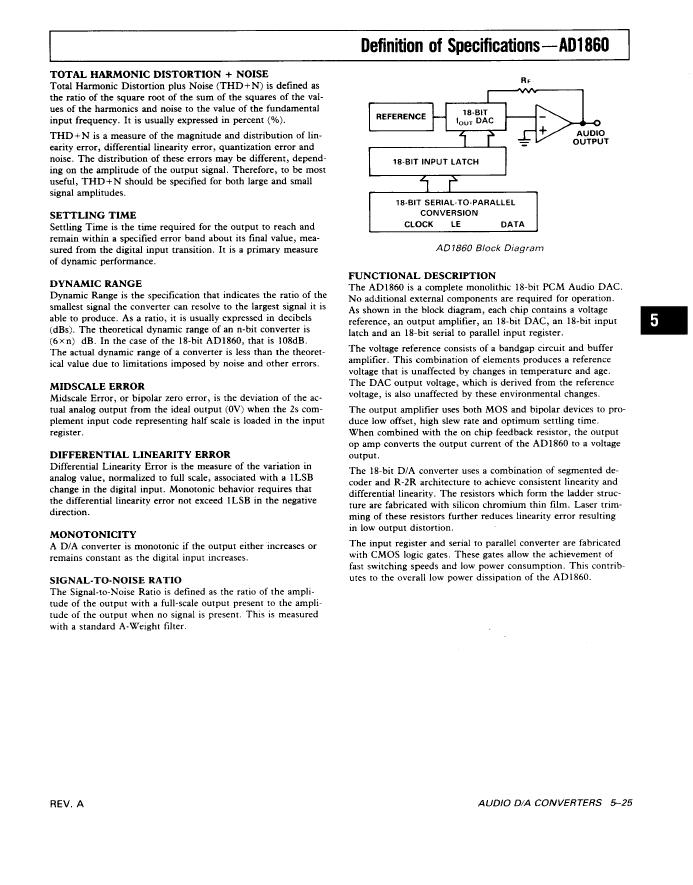

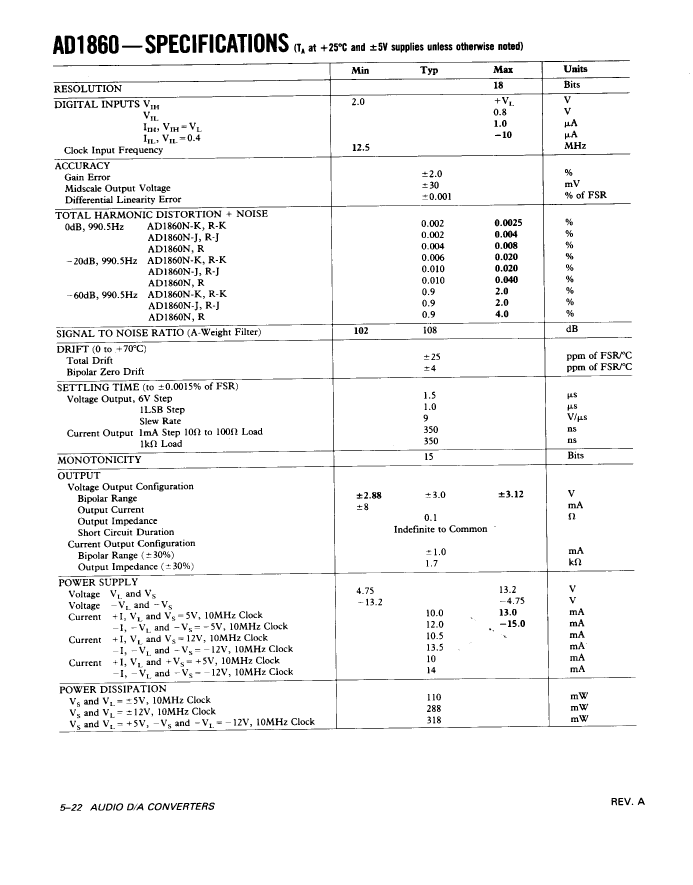

AD1860R-J Overview

IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDSO16, PLASTIC, SOIC-16, Digital to Analog Converter

AD1860R-J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	SOIC
package instruction	PLASTIC, SOIC-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog output voltage	3.12 V
Minimum analog output voltage	-3.12 V
Converter type	D/A CONVERTER
Enter bit code	2\'S COMPLEMENT BINARY
Input format	SERIAL
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Nominal negative supply voltage	-5 V
Number of digits	18
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5/+-12 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal settling time (tstl)	1.5 µs
Maximum slew rate	15 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BIMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm

AD1860R-J Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AD1860R-J Related Products

	AD1860R-J	AD1860N	AD1860N-K	AD1860N-J	AD1860R	AD1860R-K
Description	IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDSO16, PLASTIC, SOIC-16, Digital to Analog Converter	IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter	IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter	IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDIP16, PLASTIC, DIP-16, Digital to Analog Converter	IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDSO16, PLASTIC, SOIC-16, Digital to Analog Converter	IC SERIAL INPUT LOADING, 1.5 us SETTLING TIME, 18-BIT DAC, PDSO16, PLASTIC, SOIC-16, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI	ADI	ADI	ADI
Parts packaging code	SOIC	DIP	DIP	DIP	SOIC	SOIC
package instruction	PLASTIC, SOIC-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, SOIC-16	PLASTIC, SOIC-16
Contacts	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum analog output voltage	3.12 V	3.12 V	3.12 V	3.12 V	3.12 V	3.12 V
Minimum analog output voltage	-3.12 V	-3.12 V	-3.12 V	-3.12 V	-3.12 V	-3.12 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY	2\'S COMPLEMENT BINARY
Input format	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0
length	9.9 mm	20.13 mm	20.13 mm	20.13 mm	9.9 mm	9.9 mm
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	18	18	18	18	18	18
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	SOP	SOP
Encapsulate equivalent code	SOP16,.4	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.4	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	220	NOT SPECIFIED
power supply	+-5/+-12 V	+-5/+-12 V	+-5/+-12 V	+-5/+-12 V	+-5/+-12 V	+-5/+-12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	5.33 mm	5.33 mm	5.33 mm	1.75 mm	1.75 mm
Nominal settling time (tstl)	1.5 µs	1.5 µs	1.5 µs	1.5 µs	1.5 µs	1.5 µs
Maximum slew rate	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES
technology	BIMOS	BIMOS	BIMOS	BIMOS	BIMOS	BIMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED
width	3.9 mm	7.62 mm	7.62 mm	7.62 mm	3.9 mm	3.9 mm
