SBL-1LH+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SBL-1LH+

SBL-1LH+: DescriptionDouble Balanced Mixer, 2MHz Min, 500MHz Max, 8dB Conversion Loss-Max, CASE A06, 8 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size165KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

SBL-1LH+ Overview

Double Balanced Mixer, 2MHz Min, 500MHz Max, 8dB Conversion Loss-Max, CASE A06, 8 PIN

SBL-1LH+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	8 dB
Maximum input power (CW)	17 dBm
JESD-609 code	e3/e2
Maximum operating frequency	500 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	TIN/TIN SILVER
Maximum voltage standing wave ratio	2.74

Preview

Download Datasheet

View All

Non-Catalog Model

Frequency Mixer

Level 10 (LO Power +10 dBm)

Important Note

This is a non-catalog model and can be manufactured on specific request.

Pricing and delivery information can be supplied upon request.

Please click "Back", and then click "Contact Us" for Applications support.

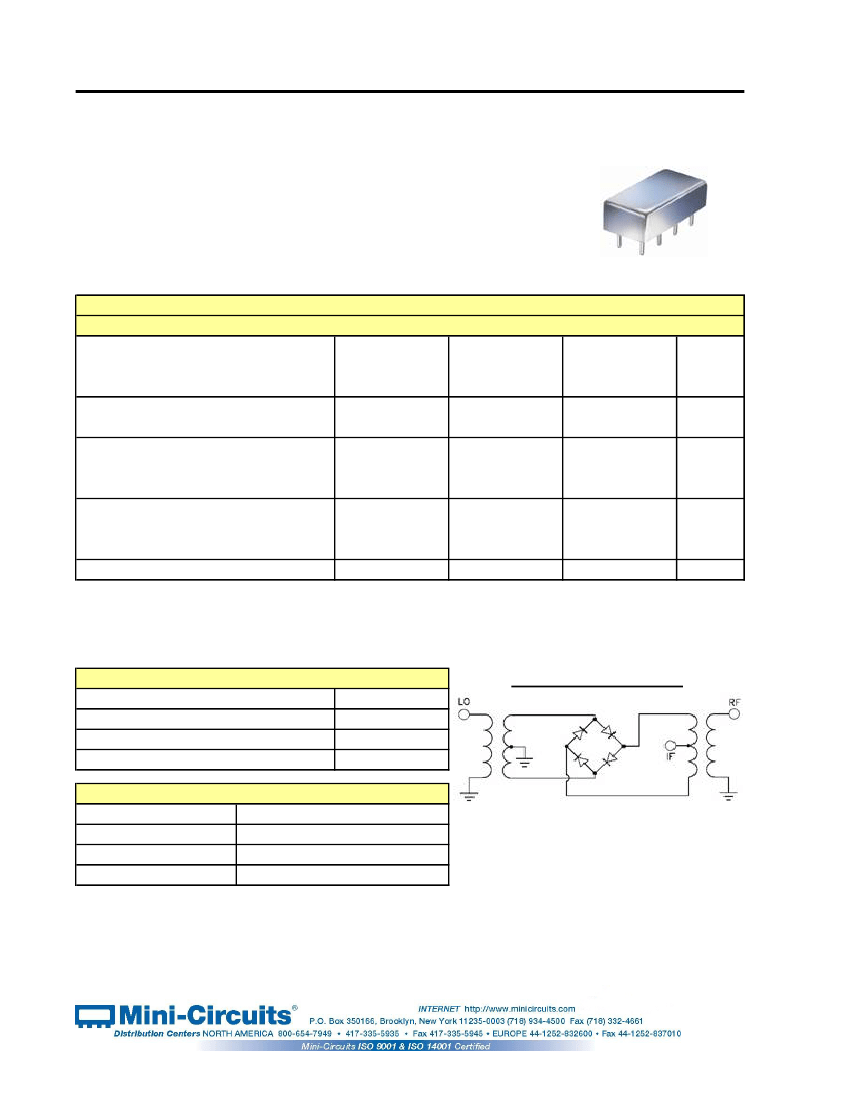

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Parameter

Frequency

(fL to fU)

Conversion Loss

mid band

Total Range

LO-RF Isolation

Low Range

Mid Range

Upper Range

LO-IF Isolation

Low Range

Mid Range

Upper Range

1 dB Comp. Input Power

Min.

Typ.

SBL-1LH

CASE STYLE : A06

5.8

Max.

500

7.0

8.0

Units

MHz

dBm

Notes:

Low Range = [fL to 10fL]

mid band = [2fL to fU/2]

Non-hermetic

Mid Range = [10fL to fU/2]

Upper Range = [fU/2 to fU]

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

RF Power

IF Current

PIN CONNECTIONS

Electrical Schematics

-55°C to 100°C

50mW

40mA

3, 4 ^

2, 5, 6, 7

GROUND

^ - pins must be connected together externally

REV. X1

SBL-1LH

060622

Page 1 of 1
