XE9624GS1: DescriptionModem-Data/Fax, 2.4kbps Data, 9.6kbps Fax, PSIP20,; CategoryWireless rf/communication Telecom circuit; File Size705KB，20 Pages; ManufacturerXecom Inc

Download Datasheet Parametric Compare View All

XE9624GS1 Overview

Modem-Data/Fax, 2.4kbps Data, 9.6kbps Fax, PSIP20,

XE9624GS1 Parametric

Parameter Name	Attribute value
Maker	Xecom Inc
package instruction	,
Reach Compliance Code	unknown
data rate	2.4 Mbps
Fax rate	9.6 kbps
JESD-30 code	R-PSIP-T20
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum slew rate	150 mA
Nominal supply voltage	5 V
surface mount	NO
Telecom integrated circuit types	MODEM-DATA/FAX
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

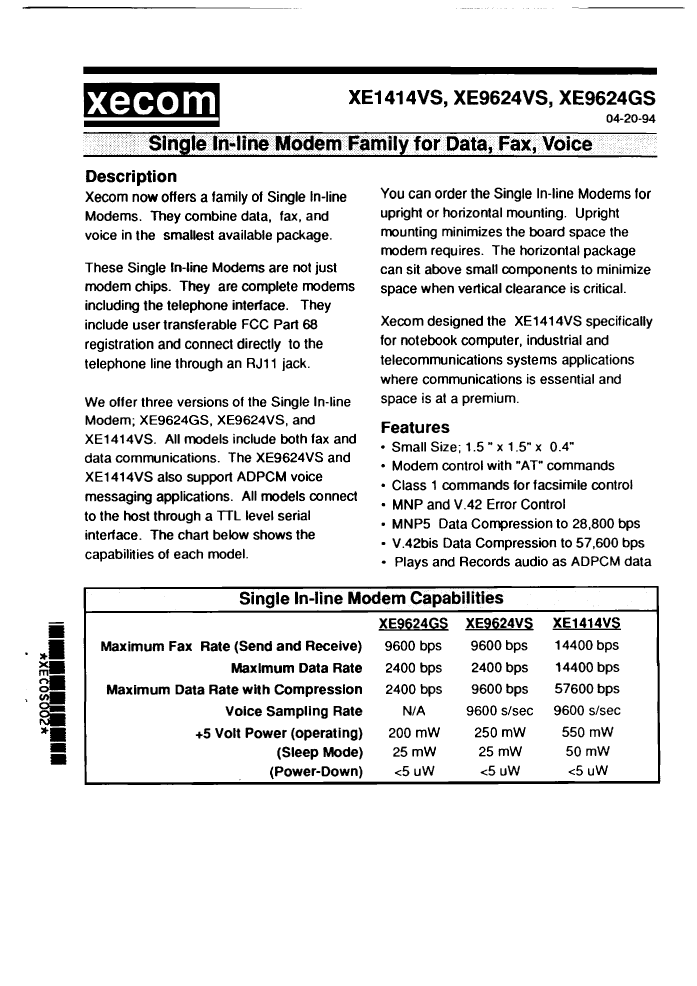

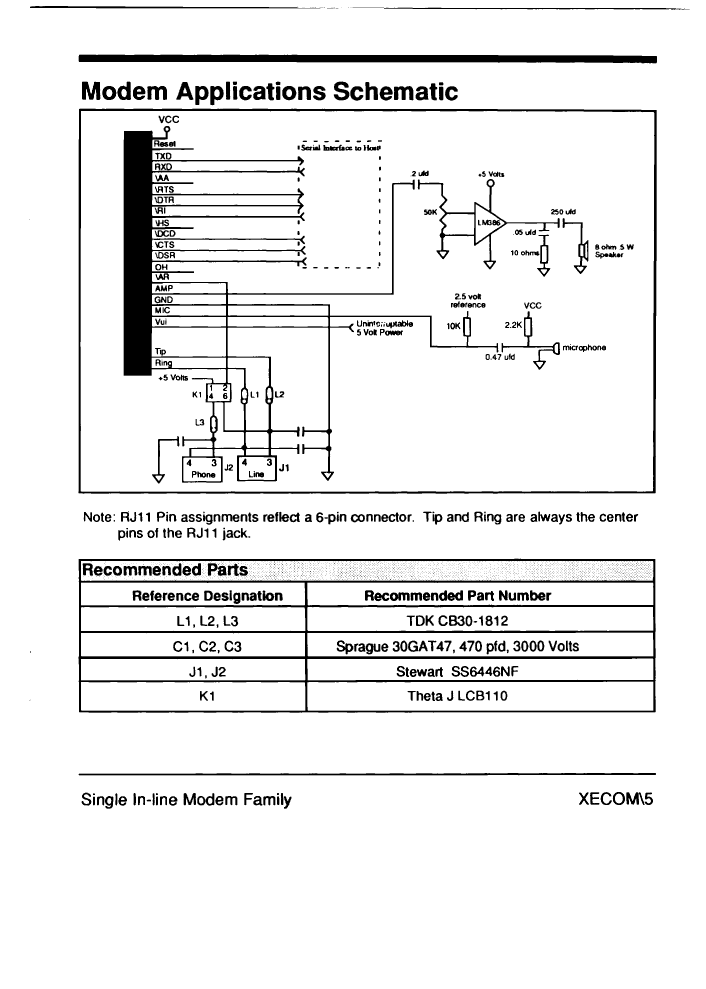

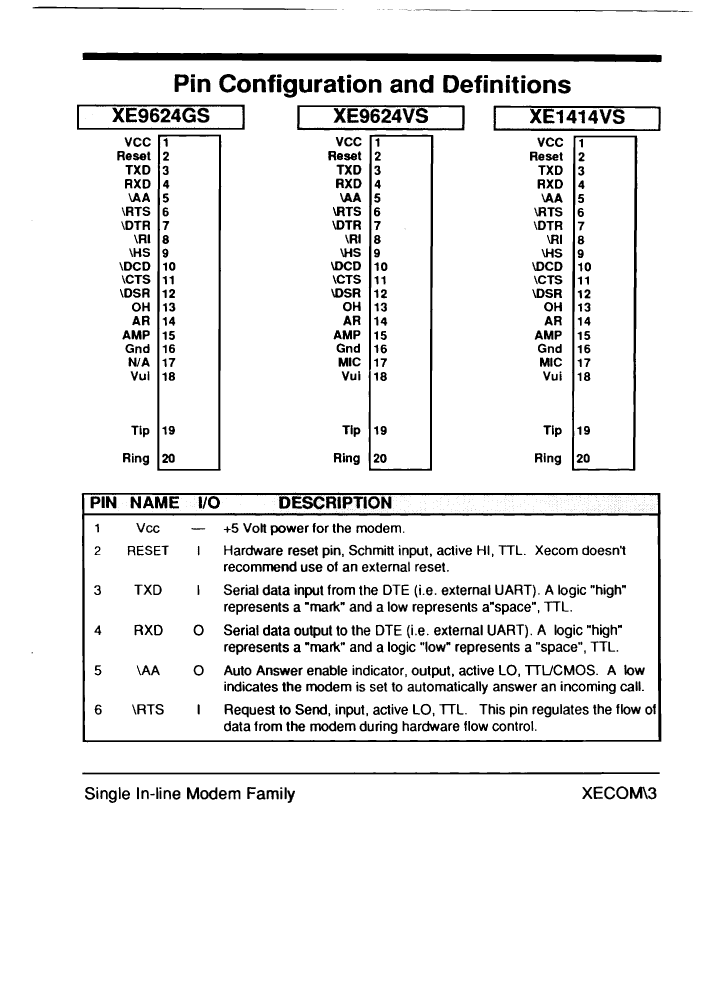

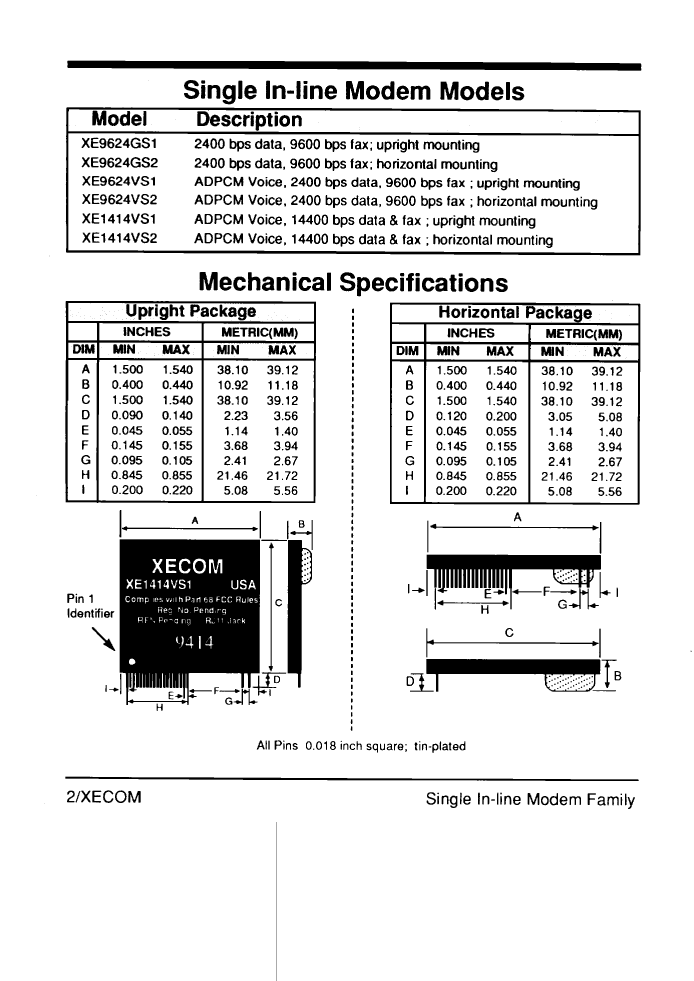

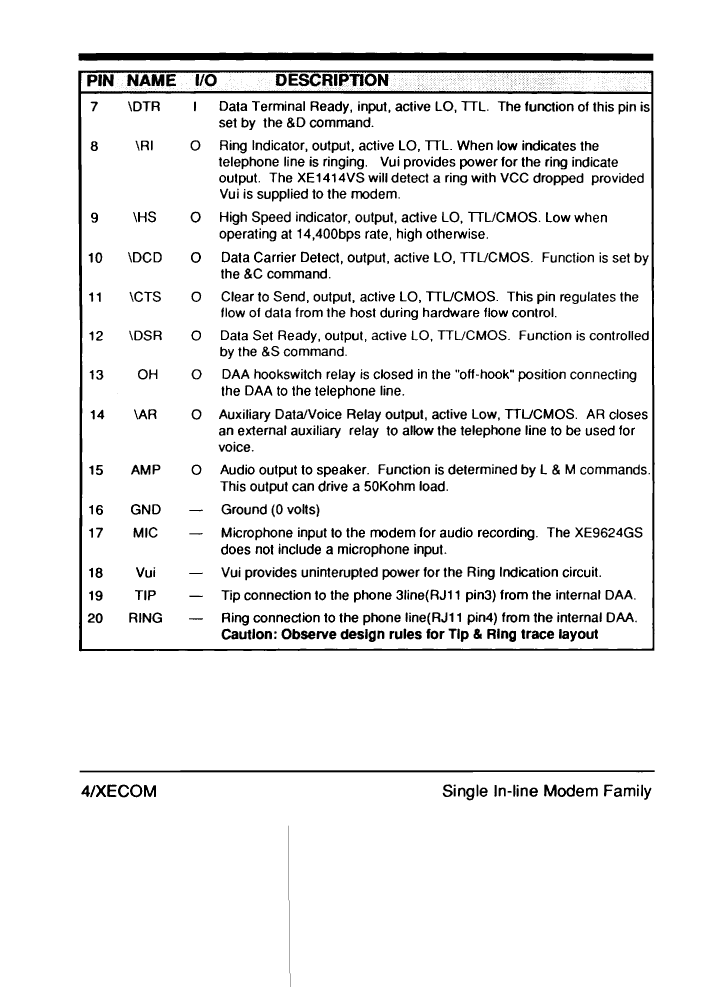

Preview

Download Datasheet

View All

XE9624GS1 Related Products

	XE9624GS1	XE1414VS1	XE1414VS2	XE9624VS2	XE9624VS1	XE9624GS2
Description	Modem-Data/Fax, 2.4kbps Data, 9.6kbps Fax, PSIP20,	Modem-Data/Fax/Voice, 14.4kbps Data, 14.4kbps Fax, PSIP20,	Modem-Data/Fax/Voice, 14.4kbps Data, 14.4kbps Fax, PSIP20,	Modem-Data/Fax/Voice, 9.6kbps Data, 9.6kbps Fax, PSIP20,	Modem-Data/Fax/Voice, 9.6kbps Data, 9.6kbps Fax, PSIP20,	Modem-Data/Fax, 2.4kbps Data, 9.6kbps Fax, PSIP20,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
data rate	2.4 Mbps	14.4 Mbps	14.4 Mbps	9.6 Mbps	9.6 Mbps	2.4 Mbps
Fax rate	9.6 kbps	14.4 kbps	14.4 kbps	9.6 kbps	9.6 kbps	9.6 kbps
JESD-30 code	R-PSIP-T20	R-PSIP-T20	R-PSIP-T20	R-PSIP-T20	R-PSIP-T20	R-PSIP-T20
Number of functions	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
Telecom integrated circuit types	MODEM-DATA/FAX	MODEM-DATA/FAX/VOICE	MODEM-DATA/FAX/VOICE	MODEM-DATA/FAX/VOICE	MODEM-DATA/FAX/VOICE	MODEM-DATA/FAX
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Xecom Inc	-	-	Xecom Inc	Xecom Inc	Xecom Inc
