AISC-0805-R015M-Z-T

Description
General Purpose Inductor, 0.015uH, 20%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0907, ROHS COMPLIANT
CategoryPassive components    inductor
File Size4MB，3 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

AISC-0805-R015M-Z-T Overview

General Purpose Inductor, 0.015uH, 20%, 1 Element, Ceramic-Core, SMD, 0907, CHIP, 0907, ROHS COMPLIANT

AISC-0805-R015M-Z-T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAbracon
package instruction0907
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes0907
structureChip
core materialCERAMIC
DC Resistance0.17 Ω
Nominal inductance(L)0.015 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee4
Manufacturer's serial numberAISC-0805
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height1.55 mm
Package length2.29 mm
Package formSMT
Package width1.73 mm
method of packingTR
Minimum quality factor (at nominal inductance)50
Maximum rated current0.6 A
self resonant frequency2900 MHz
seriesAISC-0805(F)
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ MEASURED AT 250 MHZ
surface mountYES
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency250 MHz
Tolerance20%

Preview

Download Datasheet

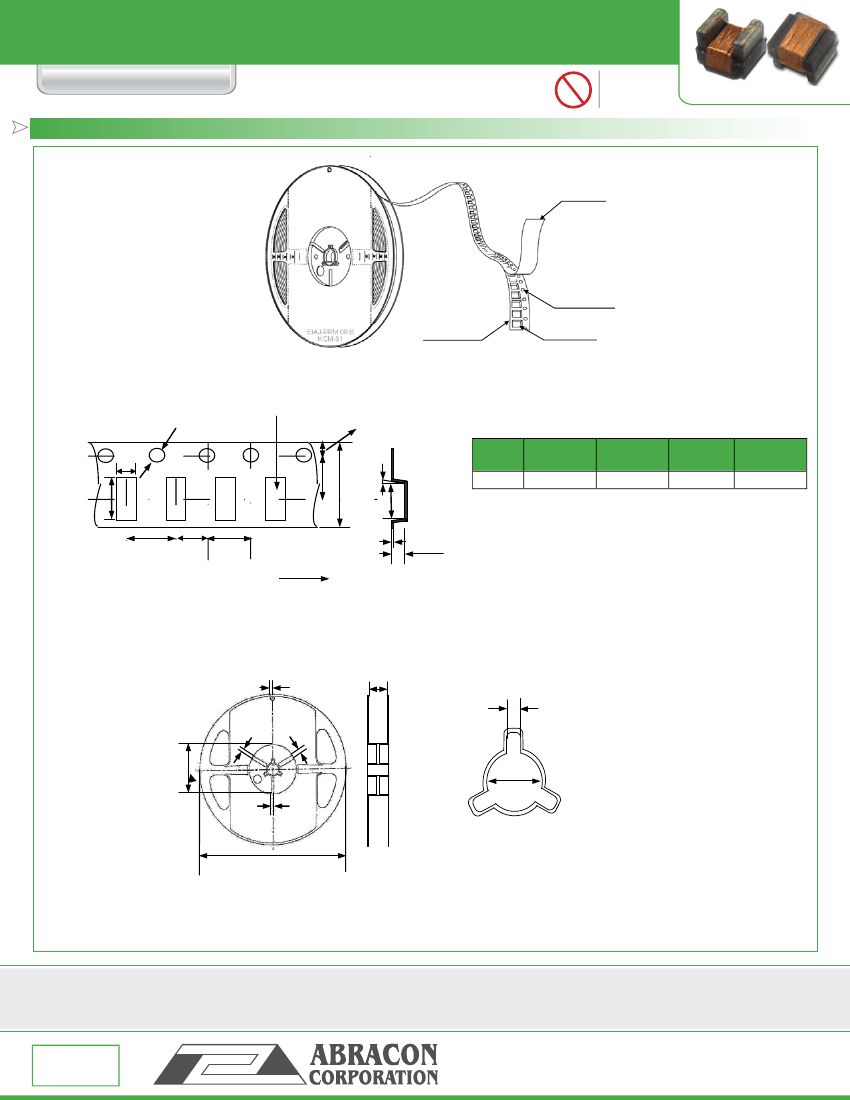

WIRE WOUND INDUCTOR - CERAMIC or FERRITE
AISC-0805(F)
FEATURES:
• Ceramic or Ferrite Construction assures the utmost in the
thermal stablity and high SRF
• Exceptionally high Q compared to non-wirewound inductor,
especially at high frequencies
• Inductance values available from 2.2 nH to 68uH; tight tolerance
STANDARD SPECIFICATIONS:
Part Number
AISC-0805-R0022
AISC-0805-R0033
AISC-0805-R0068
AISC-0805-R0082
AISC-0805-R012
AISC-0805-R015
AISC-0805-R018
AISC-0805-R022
AISC-0805-R027
AISC-0805-R033
AISC-0805-R039
AISC-0805-R047
AISC-0805-R056
AISC-0805-R068
AISC-0805-R082
AISC-0805-R10
AISC-0805-R12
AISC-0805-R15
AISC-0805-R18
AISC-0805-R22
AISC-0805-R27
AISC-0805-R33
AISC-0805-R39
AISC-0805-R47
AISC-0805-R56
AISC-0805-R62
AISC-0805-R68
AISC-0805-R75
AISC-0805-R82
AISC-0805-R91
AISC-0805-1R0
AISC-0805F-R027
AISC-0805F-R047
AISC-0805F-R056
AISC-0805F-1R0
AISC-0805F-1R5
AISC-0805F-1R8
AISC-0805F-2R2
AISC-0805F-3R3
AISC-0805F-3R9
AISC-0805F-4R7
AISC-0805F-6R8
AISC-0805F-8R2
AISC-0805F-100
AISC-0805F-150
AISC-0805F-220
AISC-0805F-330
AISC-0805F-470
AISC-0805F-680
ABRACON IS
ISO9001:2008
CERTIFIED
CE RTIFIED
Pb
RoHS
Compliant

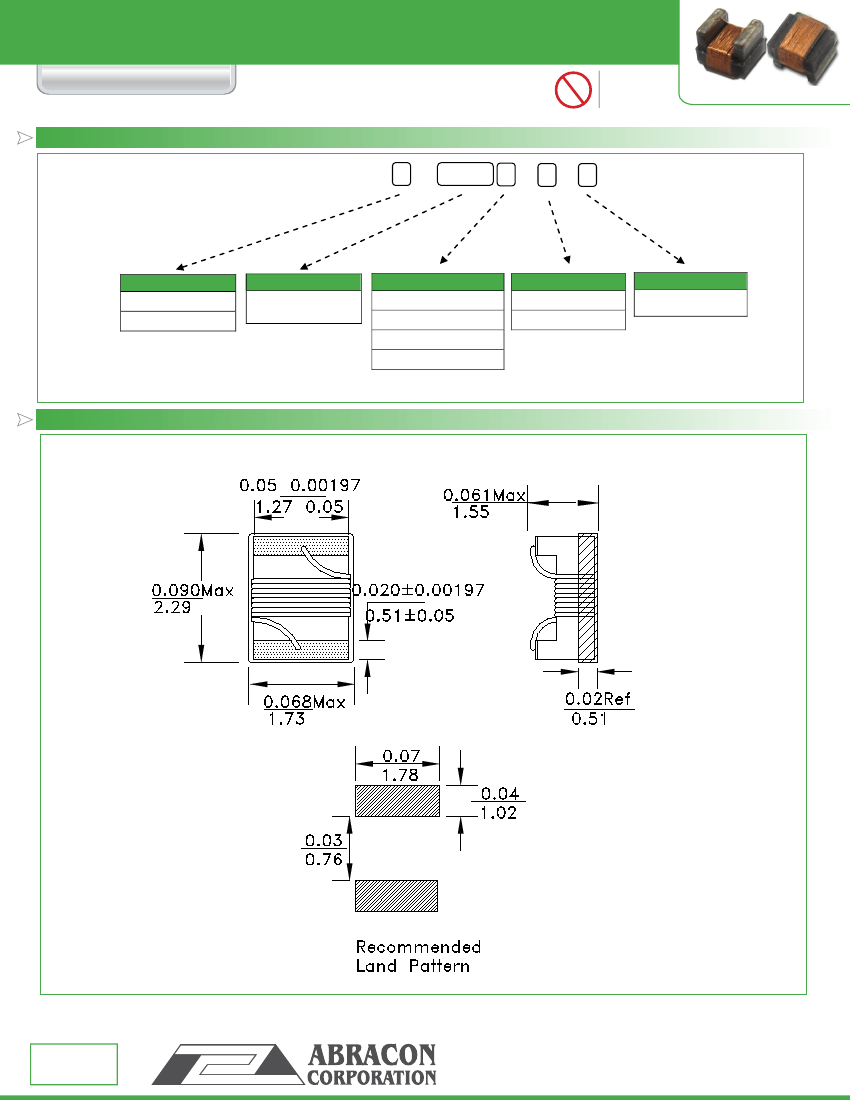

2.29 x
|
1.27
|
x
|
1.55mm
| | |
| |
| | | | | |
|
APPLICATIONS:
• Widely applied in the VCO, SAW circuit for GSM, CDMA
communications
• Used in hard disk, notebook computer and other
electronic equipment
L(nH)
@Test Freq.
2.2 @ 250 MHz
3.3 @ 250 MHz
6.8 @ 250 MHz
8.2 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
27 @ 250 MHz
33 @ 250 MHz
39 @ 250 MHz
47 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
120 @ 150 MHz
150 @ 100 MHz
180 @ 100 MHz
220 @ 100 MHz
270 @ 100 MHz
330 @ 100 MHz
390 @ 100 MHz
470 @ 50 MHz
560 @ 25 MHz
620 @ 25 MHz
680 @ 25 MHz
750 @ 25 MHz
820 @ 25 MHz
910 @ 25 MHz
1000 @ 25 MHz
270@25MHz
470@100MHz
560@25MHz
1000@7.9MHz
1500@7.9MHz
1800@7.9MHz
2200@7.9MHz
3300@7.9MHz
3900@7.9MHz
4700@7.9MHz
6800@7.9MHz
8200@7.9MHz
10000@2.5MHz
15000@2.5MHz
22000@2.5MHz
33000@2.5MHz
47000@2.5MHz
68000@2.5MHz
Tolerance
(±%)
10,20
5,10,20
5,10,20
5,10,20
2,5,10,20
5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
2,5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
Q, Min
@Test Freq.
40 @ 1500 MHz
30 @ 1500 MHz
50 @ 1000 MHz
50 @ 1000 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
55 @ 500 MHz
60 @ 500 MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
60 @ 500MHz
50 @ 250 MHz
50 @ 250 MHz
50 @ 250 MHz
45 @ 250 MHz
40 @ 250 MHz
40 @ 250 MHz
35 @ 250 MHz
33 @ 100 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
23 @ 50 MHz
22 @ 50 MHz
20 @ 50 MHz
15@25MHz
8@100MHz
15@25MHz
15@7.9MHz
15@7.9MHz
15@7.9MHz
10@50MHz
15@7.9MHz
10@7.9MHz
15@7.9MHz
15@7.9MHz
10@2.5MHz
10@2.5MHz
10@2.5MHz
10@2.5MHz
10@2.5MHz
10@2.5MHz
8@2.5MHz
SRF Min
(MHz)
>6000
>6000
5000
4800
4100
2900
3300
2600
2500
2200
2100
1750
1650
1500
1400
1200
1200
1000
950
850
680
660
560
430
350
280
300
280
250
230
200
550
500
360
63
60
60
200
50
50
43
36
35
30
23
20
17
14
11
R
DC
Max
(
Ω
)
0.1
0.08
0.11
0.19
0.15
0.17
0.2
0.22
0.25
0.27
0.29
0.31
0.32
0.38
0.42
0.46
0.51
0.56
0.64
0.7
1
1.4
1.5
1.72
1.9
1.95
2.05
2.1
2.3
2.4
2.5
0.91
0.72
0.6
1.20
1.45
1.45
2.50
2.30
2.50
2.80
3.40
4.50
4.70
6.50
8.00
10.7
13.8
17.5
I
DC
Max
(mA)
600
600
600
SRF
600
600
600
600
500
500
500
500
500
500
500
400
400
400
400
400
400
350
310
290
250
230
200
190
180
180
160
150
350
300
145
245
225
200
100
175
80
140
115
100
98
80
68
60
55
40
PARAMETERS
ABRACON P/N:
AISC-0805(F)-xxx
Operating temperature:
-40°C to +125°C
Storage temperature:
-10°C to +40°C
70% RH max.
Definition of Rated Current (Ir):
Ir is direct electric current as chip
surface temperature increases
20
°C
