ASPI-0412FS-3R3-M-T: DescriptionGeneral Purpose Inductor, 3.3uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 4040-12M, CHIP, 4040-12M,ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASPI-0412FS-3R3-M-T Overview

General Purpose Inductor, 3.3uH, 20%, 1 Element, Nickel-zinc Ferrite-Core, SMD, 4040-12M, CHIP, 4040-12M,ROHS COMPLIANT

ASPI-0412FS-3R3-M-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	4040-12M
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4040-12M
core material	NICKEL-ZINC FERRITE
DC Resistance	0.1 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASPI-0412FS
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

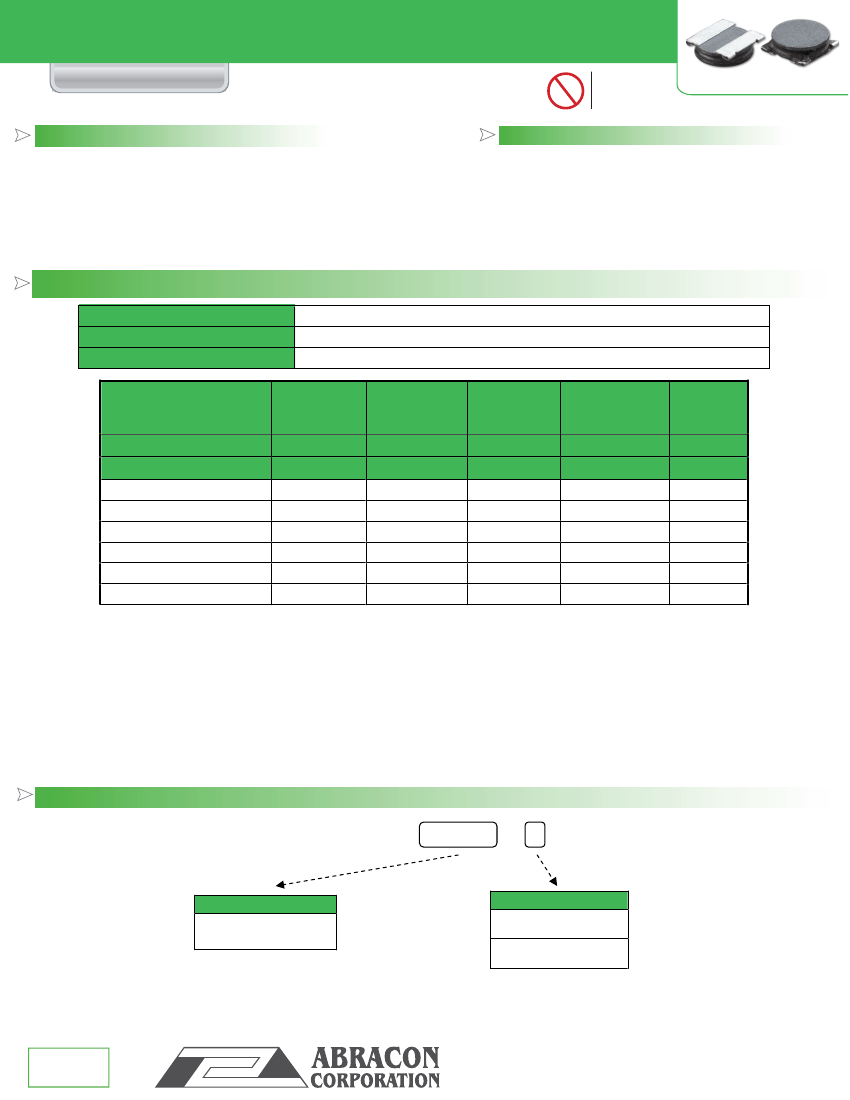

LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR

ASPI-0412FS

FEATURES:

•

Small size and low profile: 1.2mm

Small DCR and high rated current

High reliability to mechanical strength

Magnetically shielded by magnetic powder molding

Suitable for RoHS reflow profile

Pb

RoHS

Compliant

APPLICATIONS:

4.0 x 4.0 x 1.2mm

• Mobile phones

• MP3 & 4 and other portable communication equipment

• Digital cameras.

ELECTRICAL SPECIFICATIONS:

Abracon P/N:

Operating Temperature & Humidity:

Storage Temperature & Humidity:

ASPI-0412FS Series

-30°C to +100°C, 5% to 85% RH. Please avoid moisture due to the humidity.

-20°C to +60°C, 5% to 85% RH. Please avoid moisture due to the humidity.

Part Number

Units

Symbol

ASPI-0412FS-2R2M

ASPI-0412FS-3R3M

ASPI-0412FS-4R7M

ASPI-0412FS-6R8M

ASPI-0412FS-100M

ASPI-0412FS-220M

Inductance

µH ± 20%

L

2.2

3.3

4.7

6.8

10

22

DCR

mΩ

± 20%

DCR

70

100

130

180

240

550

Saturation

Current

A

Isat*

1.80

1.55

1.20

1.05

0.85

0.60

Temperature

Rise Current

A

Irms*

1.65

1.40

1.15

0.95

0.90

0.55

Marking

－

2R2

3R3

4R7

6R8

100

220

*The rated current is subject to change depending upon the temperature cooling condition.

Test Conditions

Inductance:

DCR:

Isat:

Irms:

100kHz,0.3V, Ta=20°C

Ta=20°C

∆L/L (initial) ≥ -30%

∆T ≤ 40°C

OPTIONS AND PART IDENTIFICATION

ASPI-0412FS -

Inductance Code

Please refer to the

table

above

-

Packaging

T: Tape and Reel

(1kpcs /

reel)

T4:

Tape and Reel

(4kpcs /

reel)

ABRACON IS

ISO9001:2008

CERTIFIED

、

Revised: 08.31.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
