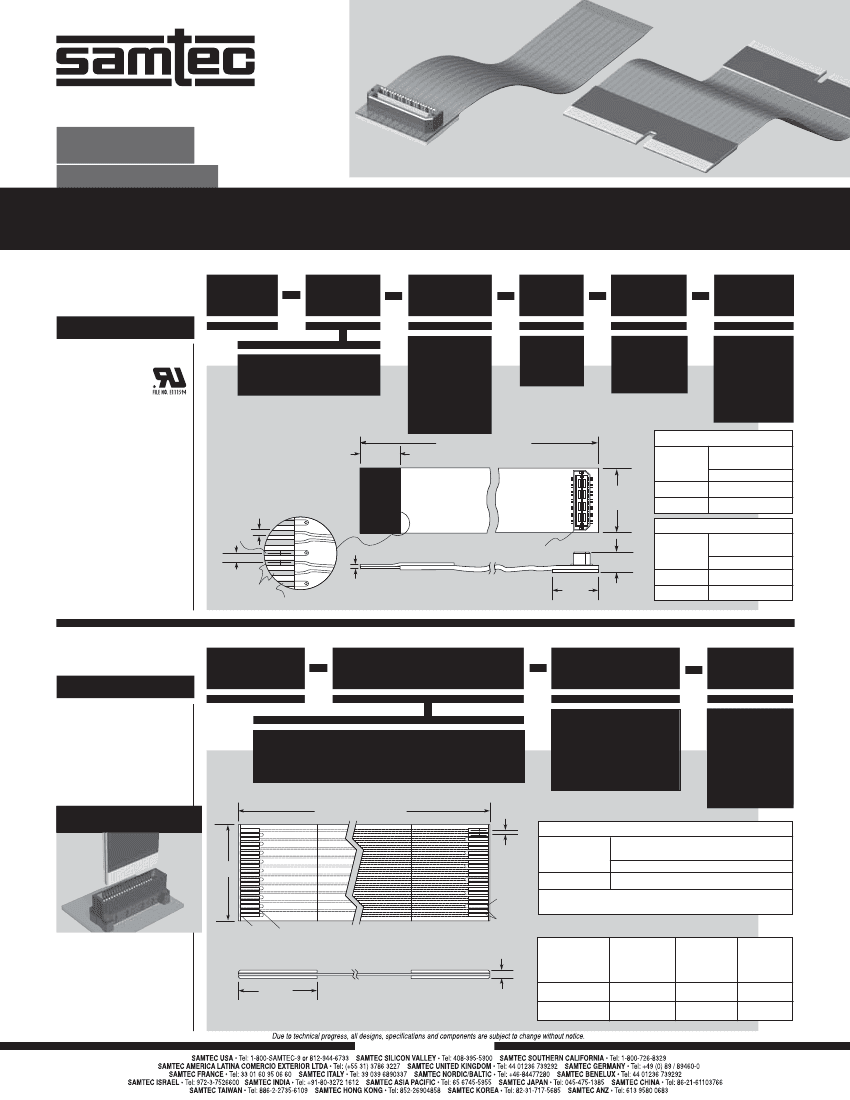

F-211 SUPPLEMENT
ZFHF–014–05.00–DP–Z1–Q1
(0,50mm) .0197"
(0,80mm) .0315"
HSF8–050–05.00–SE
ZFHF, HSF8 SERIES
HIGH SPEED FLEX DATA LINKS
Mates with:
QSE-014-01-X-D-DP-A,
ZF5-43-XX-T-WT
ZFHF
SIGNAL
PAIRS
OVERALL
LENGTH
DP
–DP
= Differential
Pair
Z1
–Z1
= Flex
Cable Jumper
for End 1
END NO. 2
OPTION
SPECIFICATIONS
For complete specifications
see www.samtec.com?ZFHF-DP
Terminal:
QTE-DP Series
Cable:
1/2 oz. rolled annealed copper
Operating Temp Range:
-55°C to +105°C
Plating:
100µ" (2,54µm) Tin
Adhesive:
FR (DuPont)
Stiffener:
FR-4 glass epoxy
Flammability Rating:
UL 94 VO
RoHS Compliant:
Yes
Important Note:
Product may have some
lines dedicated to ground.
For actual signal-to-ground
pinouts, see assembly print
at web address above.
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
Ground
–05.00
–014
= 14 Pairs
= (127,0mm)
5.00"
–Z1
= Flex
Cable Jumper
–10.00
= (254,0mm)
10.00"
(4,06)
.160
OVERALL LENGTH
Cable
Length
(22,00)
.866
–Q1
= QTE-DP
Z1-Z1
Rated @ 3dB
Insertion Loss
–DP
5" (127mm)
1.97 GHz / 3.94 Gbps
10" (254mm)
1.31 GHz / 2.62 Gbps
Z1-Q1
(0,30)
.012
See QTE-DP
for specifications
(0,50)
.0197Signal
Pair Ground
(6,11)
.240
(14,48)
.570
Cable
Length
Rated @ 3dB
Insertion Loss
–DP
(0,30)
.012
5" (127mm)
3.16 GHz / 6.32 Gbps
10" (254mm)
1.65 GHz / 3.30 Gbps
Mates with:
HSEC8, DSEC, HSEC8-RA
HSF8
NO. OF
POSITIONS PER SIDE
OVERALL
LENGTH
SIGNAL
ROUTING
SPECIFICATIONS
For complete specifications
see www.samtec.com?HSF8-DP
,
see www.samtec.com?HSF8-SE
Operating Temp Range:
-55°C to +105°C
Plating:
30µ" (0,76µm) Gold over
50µ" (1,27µm) Nickel
RoHS Compliant:
Yes
–05.00
–020, –050
(–050 has polarization notch.
See HSEC8 for location.)
= (127,0mm) 5.00"
–DP
= Differential
Pair
–10.00
= (254,0mm) 10.00"
–SE
= Single-
Ended
APPLICATION
OVERALL LENGTH
HSF8
B
(0,80)
.0315
Cable
Length
5" (127mm)
Rated @ 3dB
Insertion Loss
–DP
Ground
Signal
Ground
Important Note:
Product may have some
lines dedicated to ground.
For actual signal-to-ground
pinouts, see assembly print
at web address above.
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
Signal
–SE
–DP
4.86 GHz / 9.72 Gbps
Performance data for other cable lengths and complete test data
available at www.samtec.com?HSF8 or contact sig@samtec.com
(1,57)
.062
NO. OF
POSITIONS
PER SIDE
–020
–050
B
(17,25) .679
(44,45) 1.750
SIGNAL
PAIRS
PER SIDE
(–DP)
7
16
SIGNAL
PINS
PER SIDE
(–SE)
10
25
(14,10)
.555
