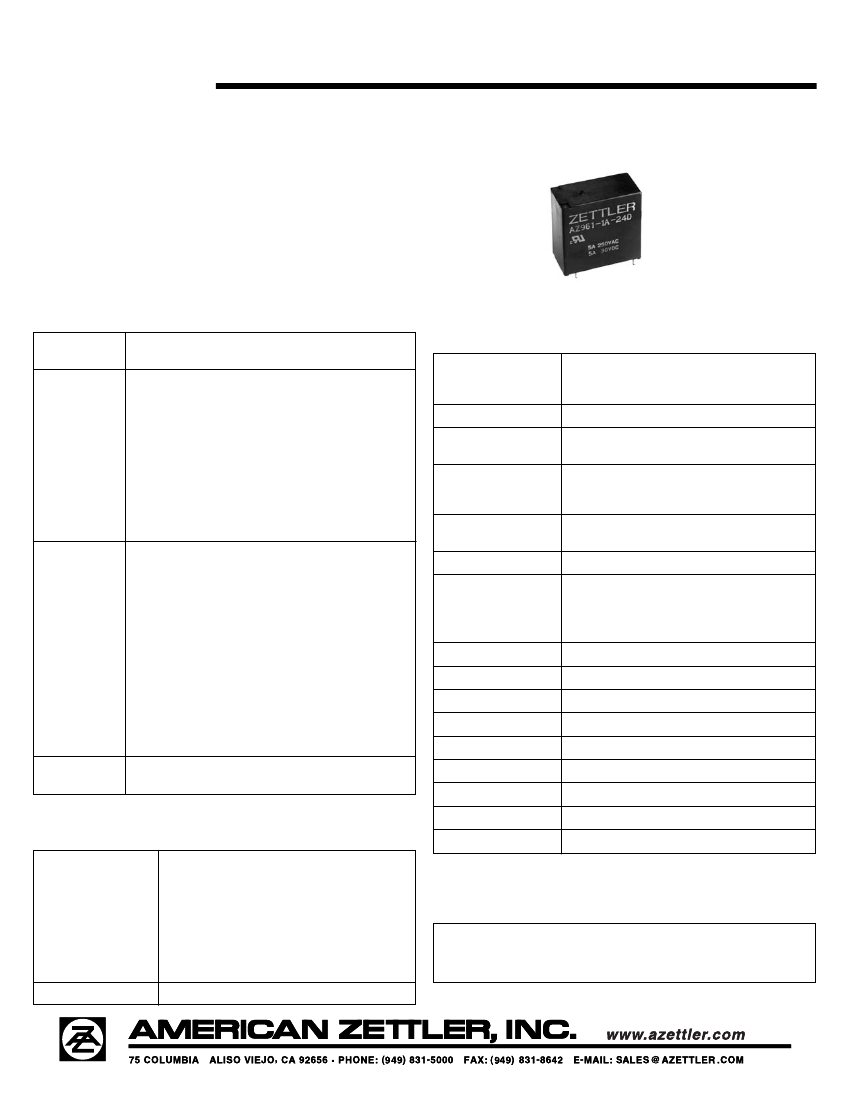

AZ961
AZ
MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
1 Form A or 1 Form C
Standard and sensitive coils
All plastics rated 94V-0
Epoxy sealed version available
Class B insulation system
UL, CUR file E43203
CONTACTS
Arrangement
Ratings
SPST NO (1 Form A)
SPDT
(1 Form C)
Resistive load:
1 Form A
Max. switched power: 150 W or 1250 VA
Max. switched current: 5 A
Max. switched voltage: 150 VDC* or 300 VAC
1 Form C
Max. switched power: 150 W N.O. or 1250 VA
Max. switched current: 5 A
Max. switched voltage: 150 VDC* or 300 VAC
*NOTE: If switching voltage is greater then 30 VDC, special precautions
must be taken. Please contact the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 5 A 240 VAC Res. N.O.
10 ms at nominal coil voltage
5 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
2000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
4000 surge (2 x 10 us) coil to contact
Insulation Resistance
Dropout
1000 megohms min. at 500 VDC,
20°C, 50% RH
Greater than 5% of nominal coil voltage
UL, CUR
1
5
3
5
Form A
A at 250 VAC, General Use, 10k cycles [1]
A at 30 VDC, Resistive, 10k cycles [1]
A at 250 VAC, General Use, 100k cycles [2][3]
1 Form C
5 A at 250 VAC, General Use, 10k cycles [1] N.O.
3 A at 250 VAC, General Use, 10k cycles [1] N.C.
5 A at 30 VDC, Resistive, 10k cycles [1] N.O.
3 A at 30 VDC, Resistive, 10k cycles [1] N.C.
5 A at 250 VAC, General Use, 100k cycles [2][3] N.O.
5 A at 250 VAC, General Use, 100k cycles [2][3] N.C.
B300 Pilot Duty N.O. [1]
Silver cadmium oxide [1], silver tin oxide [2], silver nickel
[3]
Material
Silver cadmium oxide, silver tin oxide or silver nickel
Gold plating available
Ambient Temperature
Operating Standard:
40°C (-40°F) to 95°C (203°F)
Sensitive:
40°C (-40°F) to 100°C (212°F)
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
40°C (-40°F) to 130°C (266°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
250°C (482°F)
5 seconds
80°C (176°F)
30 seconds
8 grams
COIL
Power
At Pickup Voltage
(typical)
Max Continuous
Dissipation
Temperature Rise
Standard coil: 176 mW
Sensitive coil: 129 mW
1.5 W at 20°C (68°F)
At nominal coil voltage:
Standard coil: 27°C (49°F)
Sensitive coil: 20°C (36°F)
130°C (266°F)
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Max. Temperature

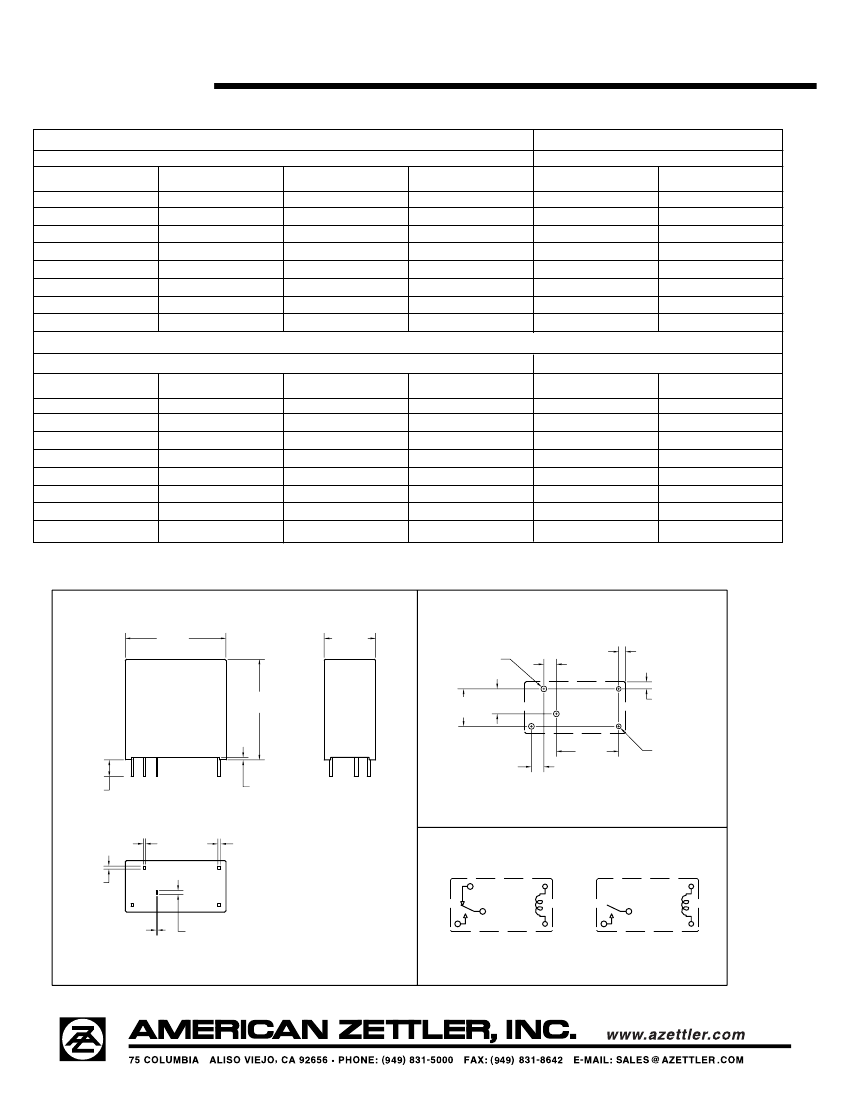

9/26/05W
