ML524PYA822MLZ Overview

High Reliability Power Inductors

6060 POWER INDUCTORS
High Reliability Power Inductors
ML524PYA
High temperature materials allow operation in ambient
temperatures up to 155°C
Passes vibration testing to 80 G and shock testing to 1000 G
Exceptionally low DCR – 3.1 mOhm
Soft saturation makes them ideal for VRM/VRD applications.
Terminations
Tin-silver (96.5/3.5) over copper.
Core material
Composite
Weight
1.2 – 1.3 g
Ambient temperature
–55°C to +105°C with
Irms
current, +105°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
400/7″reel
Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing,
3.12 mm pocket depth
DCR (mOhms)
3
typ
max
3.10
3.41
3.81
4.19
5.30
5.83
6.00
6.60
7.45
8.19
14.90
16.40
16.22
17.84
18.90
20.80
24.00
26.40
27.00
29.82
39.77
43.75
55.12
60.63
SRF (MHz)
4
min
typ
47
59
37
47
28
36
24
31
20
26
16
21
16
20
14
18
12
16
11
14
8.8
11
7.2
9
Irms
(A)
6
20°C rise 40°C rise
14.3
18.8
12.8
17.3
10.5
13.5
9.8
12.8
9.0
12.0
5.3
7.5
5.3
7.5
5.3
6.8
4.5
6.0
3.8
5.3
3.4
4.5
2.7
3.8
Part number
1
ML524PYA681MLZ
ML524PYA102MLZ
ML524PYA182MLZ
ML524PYA222MLZ
ML524PYA302MLZ
ML524PYA472MLZ
ML524PYA562MLZ
ML524PYA682MLZ
ML524PYA822MLZ
ML524PYA103MLZ
ML524PYA153MLZ
ML524PYA223MLZ
Inductance
2
±20% (µH)
0.68
1.0
1.8
2.2
3.0
4.7
5.6
6.8
8.2
10
15
22
Isat
(A)
5
23
21
18.1
16.4
14.6
10.5
9.9
9.2
8.4
7.6
5.8
5.6
1. When ordering, please specify
testing
code:
ML524PYA332MLZ
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10004
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 4395A or equivalent.
5. Typical dc current at which the inductance drops 30% from its value without current.
6. Typical current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

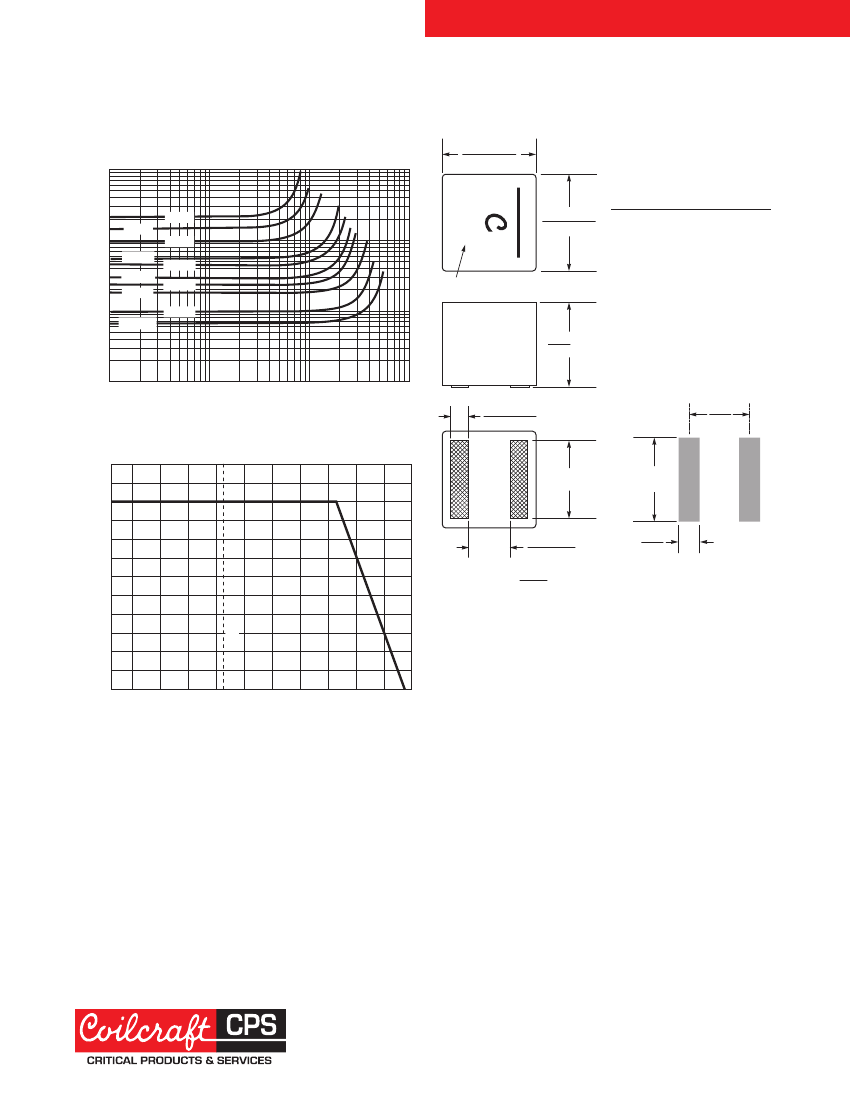

Irms
Testing
Irms
testing was performed on a
0.060″ thick pcb with 4 oz. copper
traces optimized to minimize additional
temperature rise.
Temperature rise is highly dependent
on many factors including pcb land
pattern, trace size, and proximity
to other components. Therefore
temperature rise should be verified in
application conditions.
®
Document ML799-1 Revised 09/24/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
