0805 CHIP INDUCTORS
High-Reliability Chip Inductors
MS336RAA
The MS336RAA inductors provide exceptional Q values,
even at high frequencies. They have a ceramic body and
wire wound construction to provide the highest SRFs
available in 0805 size.
Inductance
2
(nH)
2.8@
3.0@
3.3@
5.6@
6.8@
7.5@
8.2@
10@
12@
15@
18@
22@
24@
27@
33@
36@
39@
43@
47@
56@
68@
82@
91@
100@
110@
120@
150@
180@
220@
240@
270@
330@
390@
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
200 MHz
200 MHz
200 MHz
200 MHz
150 MHz
150 MHz
150 MHz
150 MHz
150 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
This robust version of Coilcraft’s standard 0805CS series
features high temperature materials that allow operation in
ambient temperatures up to 155°C and a leach-resistant
base metalization with tin-lead (Sn-Pb) terminations that
ensures the best possible board adhesion.
Q min
3
Part number
1
Percent
tolerance
5
5
5
5
5
5
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
SRF min
4
(MHz)
5000
5000
5000
4760
4440
3840
3560
3460
3180
2560
2480
2080
1920
2060
1720
1520
1600
1440
1360
1280
1200
1060
1060
1000
880
880
730
730
650
610
580
520
480
DCR max
5
(Ohms)
0.06
0.06
0.08
0.08
0.11
0.14
0.12
0.10
0.15
0.17
0.20
0.22
0.22
0.25
0.27
0.27
0.29
0.34
0.31
0.34
0.38
0.42
0.48
0.46
0.48
0.51
0.56
0.64
0.70
1.00
1.00
1.40
1.50
Imax
(mA)
800
800
600
600
600
600
600
600
600
600
600
500
500
500
500
500
500
500
470
460
440
400
390
390
390
380
340
340
330
270
260
230
210
Color
code
Gray
White
Black
Orange
Brown
Green
Red
Blue
Orange
Yellow
Green
Blue
Gray
Violet
Gray
Orange
White
Yellow
Black
Brown
Red
Orange
Black
Yellow
Brown
Green
Blue
Violet
Gray
Red
White
Black
Brown
MS336RAA020JSZ
MS336RAA3N0JSZ
MS336RAA030JSZ
MS336RAA050JSZ
MS336RAA060JSZ
MS336RAA070JSZ
MS336RAA080_SZ
MS336RAA100_SZ
MS336RAA120_SZ
MS336RAA150_SZ
MS336RAA180_SZ
MS336RAA220_SZ
MS336RAA240_SZ
MS336RAA270_SZ
MS336RAA330_SZ
MS336RAA360_SZ
MS336RAA390_SZ
MS336RAA430_SZ
MS336RAA470_SZ
MS336RAA560_SZ
MS336RAA680_SZ
MS336RAA820_SZ
MS336RAA910_SZ
MS336RAA101_SZ
MS336RAA111_SZ
MS336RAA121_SZ
MS336RAA151_SZ
MS336RAA181_SZ
MS336RAA221_SZ
MS336RAA241_SZ
MS336RAA271_SZ
MS336RAA331_SZ
MS336RAA391_SZ
57@
61@
48@
75@
54@
56@
63@
57@
46@
41@
48@
59@
59@
56@
64@
57@
44@
45@
44@
49@
52@
51@
49@
54@
38@
52@
33@
37@
36@
36@
36@
36@
34@
1000 MHz
1000 MHz
1000 MHz
1000 MHz
1000 MHz
1000 MHz
1000 MHz
500 MHz
500 MHz
500 MHz
500 MHz
500 MHz
500 MHz
500 MHz
500 MHz
500 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
250 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
1. When ordering, please specify
tolerance
and
testing
codes:
MS336RAA821GSZ
Tolerance: F
= 1%
G
= 2%
J
= 5%
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10003
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer or equivalent with Coilcraft-provided correlation
pieces.
3. Q measured using an Agilent/HP 4291A with an Agilent/HP 16197A test fixture or equivalents.
4. SRF measured on an Agilent 8753ES or equivalent with a Coilcraft CCF1297 test fixture.
5. DCR measured on a Keithley micro-ohmmeter or equivalent and a Coilcraft CCF858 test fixture.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
Document MS100-1 Revised 11/06/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012

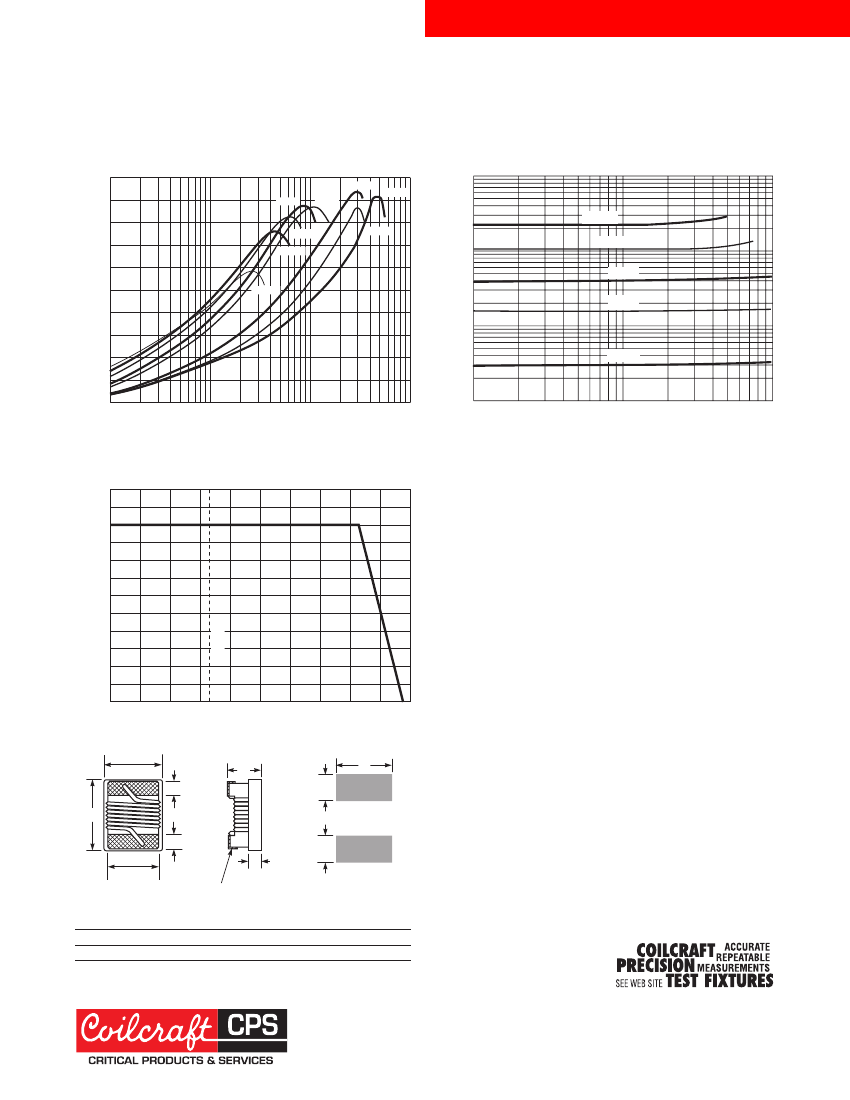

0805 CHIP INDUCTORS
MS336RAA Series (0805)
Typical Q vs Frequency
100
90
80
68 nH
39 nH
Typical L vs Frequency
12 nH
22 nH
1000
3.3 nH
220 nH
6.8 nH
Inductance (nH)
70
120 nH
100
100 nH
39 nH
15 nH
Q Factor
60
50
40
30
20
10
0
270 nH
10
3.3 nH
1
10
100
1000
10,000
10
100
1000
Frequency (MHz)
Frequency (MHz)
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel
Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing,
1.65 mm pocket depth
Current Derating
120
110
100
90
80
70
60
50
30
20
10
0
-40
-20
0
20
40
60
80
100
120
140 160
40
Percent of rated
I
rms
Ambient temperature (°C)
B
overall
F
A
G
F
E
terminal
D
Terminal wraparound:
approx 0.015/0,38 both ends
25°C
C
I
J
I
H
Suggested
Land Pattern
H
1,78
I
1,02
J
0.030
0,76
A max B max C max D ref
0.090
2,29
0.068
1,73
0.060
1,52
0,51
E
1,27
F
0,51
G
1,02
0.020 0.050 0.020
0.040 0.070 0.040
Note: Dimensions are before solder application. For maximum over-
all dimensions including solder, add 0.0025 in / 0,064 mm to
B
and 0.006 in / 0,15 mm to
A
and
C.
®
Document MS100-2 Revised 11/06/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
