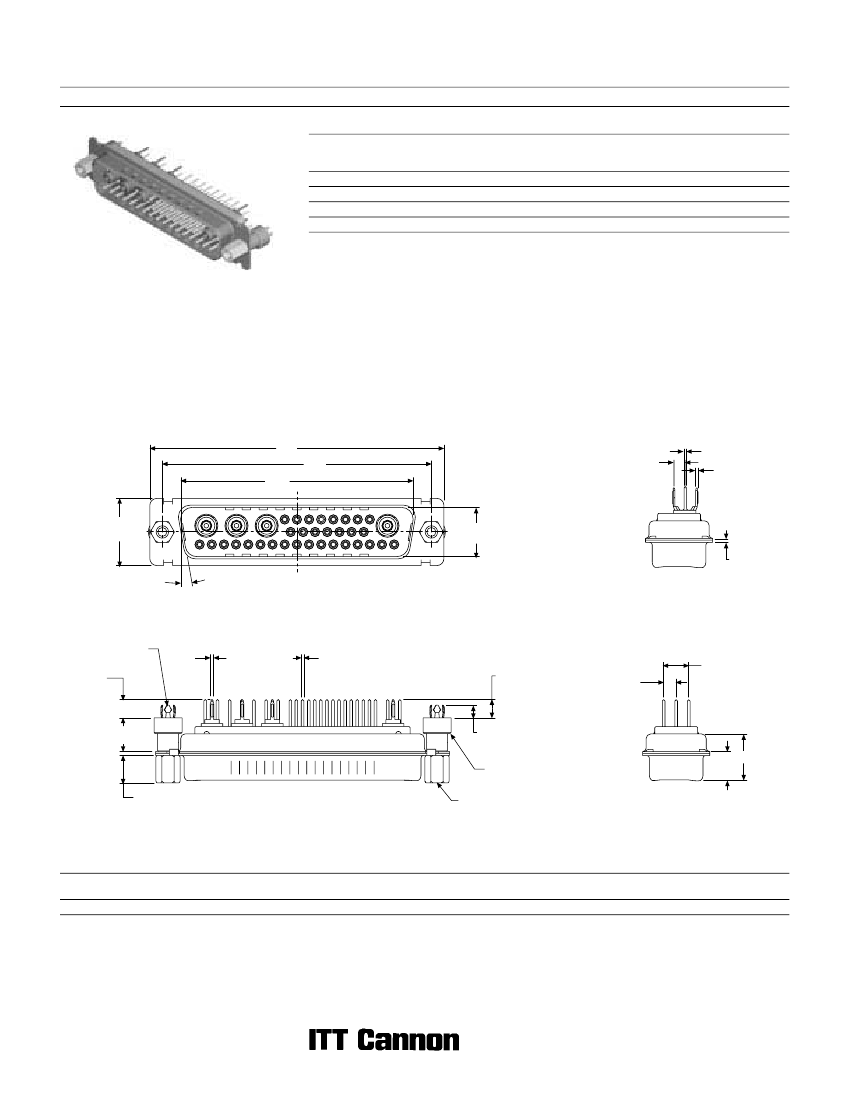

D Subminiature
Coaxial Straight — European PC Tails (Size DD)
Plug
75 Ohm Part Numbers* with Standoff #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Part Number
Without Screw Locks
Without Boardlocks
DDMV24C7PYK87
DDMV36C4PYK87
DDMV43C2PYK87
DDMV47C1PYK87
Part Number
Without Screw Locks
With Boardlocks
DDMZ24C7PYK87
DDMZ36C4PYK87
DDMZ43C2PYK87
DDMZ47C1PYK87
Combo D
Part Number
With Screw Locks
With Boardlocks
DDMN24C7PYK87
DDMN36C4PYK87
DDMN43C2PYK87
DDMN47C1PYK87
For M3 threads replace MV with MT, MZ with MQ, MN with MU.
Notes: * For 50 Ohm Coaxial substitute X for C. Example: DDMV24X7PYK87
For tin plated PC tails add A226 (signal contacts only). Example: DDMV24C7PYK87A226
For performance class 2 substitute K127 for K87. Example: DDMV24C7PYK127
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see page 240.
For panel cutouts, see page 221.
For alternate 50 Ohm coaxial configuration,
see page 225.
Engaging Face
A
C
B
2,54
(.100)
Ø 0,51
(.020)
0,62
(.024)
E
D
L
10°
Hardware and signal contacts
removed for clarity
BOARDLOCK
3,45
(.136)
0,82
(.032)
Ø 0,60
(.024)
4,52 (.178)
2,84
(.112)
5,69
(.224)
7,62
±
0,25
(.300
±
.010)
2,92
(.115)
STANDOFF
#4-40 UNC
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Hardware and coaxial contact
removed for clarity
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,81 (2.079)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
11,07 (.436)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,82 (.426)
W
±0,41
(.016)
6,84 (.269)
L
±0,25
(.010)
0,99 (.039)
58
Dimensions are shown in mm (inch)
Dimensions subject to change
