DDMZ24C7SYA197 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DDMZ24C7SYA197

DDMZ24C7SYA197: DescriptionD Subminiature Connector, 24 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DDMZ24C7SYA197 Overview

D Subminiature Connector, 24 Contact(s), Female, Solder Terminal, Receptacle,

DDMZ24C7SYA197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: DM130346-2, EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

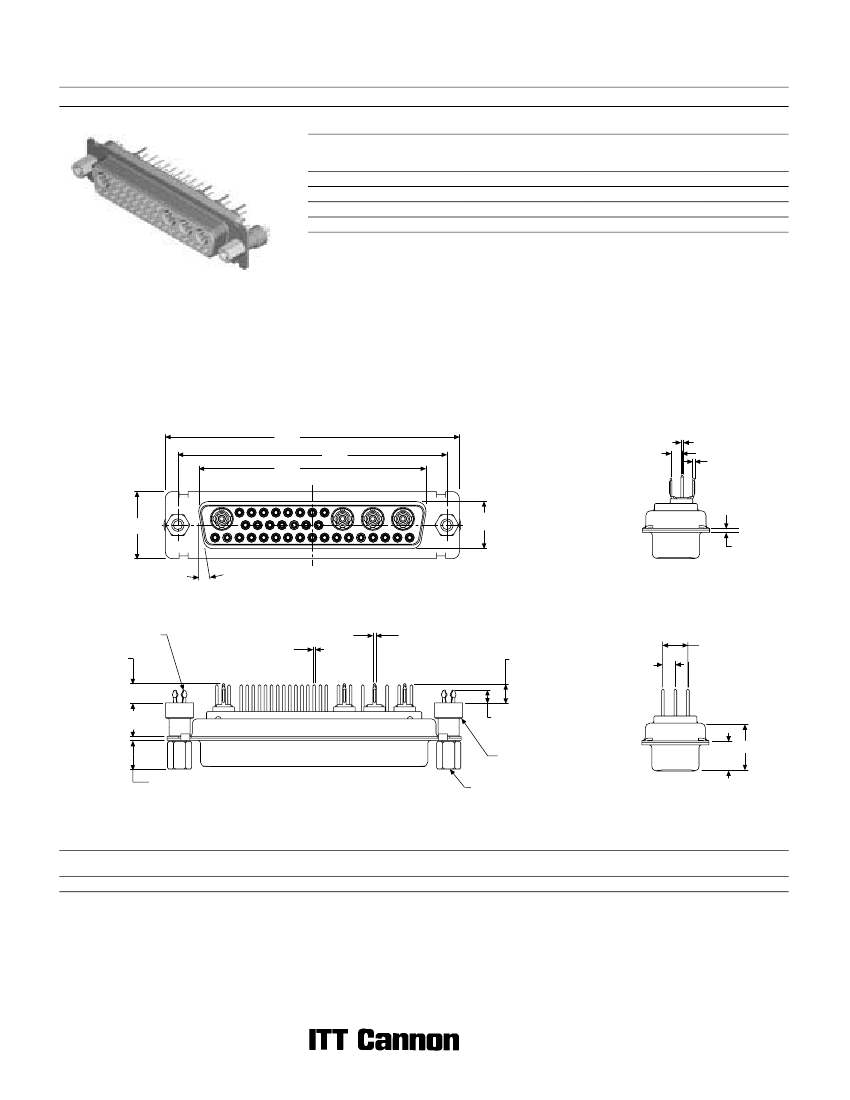

D Subminiature

Coaxial Straight — European PC Tails (Size DD)

Receptacle

75 Ohm Part Numbers* with Standoff #4-40 UNC

Shell Size

Layout

24W7

36W4

43W2

47W1

Part Number

Without Screw Locks

Without Boardlocks

DDMV24C7SYA197

DDMV36C4SYA197

DDMV43C2SYA197

DDMV47C1SYA197

Part Number

Without Screw Locks

With Boardlocks

DDMZ24C7SYA197

DDMZ36C4SYA197

DDMZ43C2SYA197

DDMZ47C1SYA197

Combo D



Part Number

With Screw Locks

With Boardlocks

DDMN24C7SYA197

DDMN36C4SYA197

DDMN43C2SYA197

DDMN47C1SYA197

For M3 threads replace MV with MT, MZ with MQ, MN with MU.

Notes: * For 50 Ohm Coaxial substitute X for C. Example: DDMV24X7SYA197

For performance class 2 substitute K126 for A197. Example: DDMV24C7SYK126

Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see page 243.

For panel cutouts, see page 221.

For alternate 50 Ohm coaxial configuration,

see page 225.

Engaging Face

2,54

(.100)

Ø 0,51

(.020)

0,62

(.024)

10°

Hardware and signal contacts

removed for clarity

BOARDLOCK

3,45

(.136)

Ø 0,60

(.024)

0,82

(.032)

4,52 (.178)

2,84

(.112)

5,69

(.224)

7,62

0,25

(.300

.010)

2,92

(.115)

STANDOFF

#4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Hardware and coaxial contact

removed for clarity

Dimensions

Shell Size

±0,38

(.015)

66,93 (2.635)

±0,13

(.005)

52,42 (2.064)

±0,13

(.005)

61,11 (2.406)

±0,13

(.005)

10,74 (.423)

±0,38

(.015)

15,37 (.605)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change
