DDMZ24H7SYA197 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DDMZ24H7SYA197

DDMZ24H7SYA197: DescriptionD Subminiature Connector, 24 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DDMZ24H7SYA197 Overview

D Subminiature Connector, 24 Contact(s), Female, Solder Terminal, Receptacle,

DDMZ24H7SYA197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

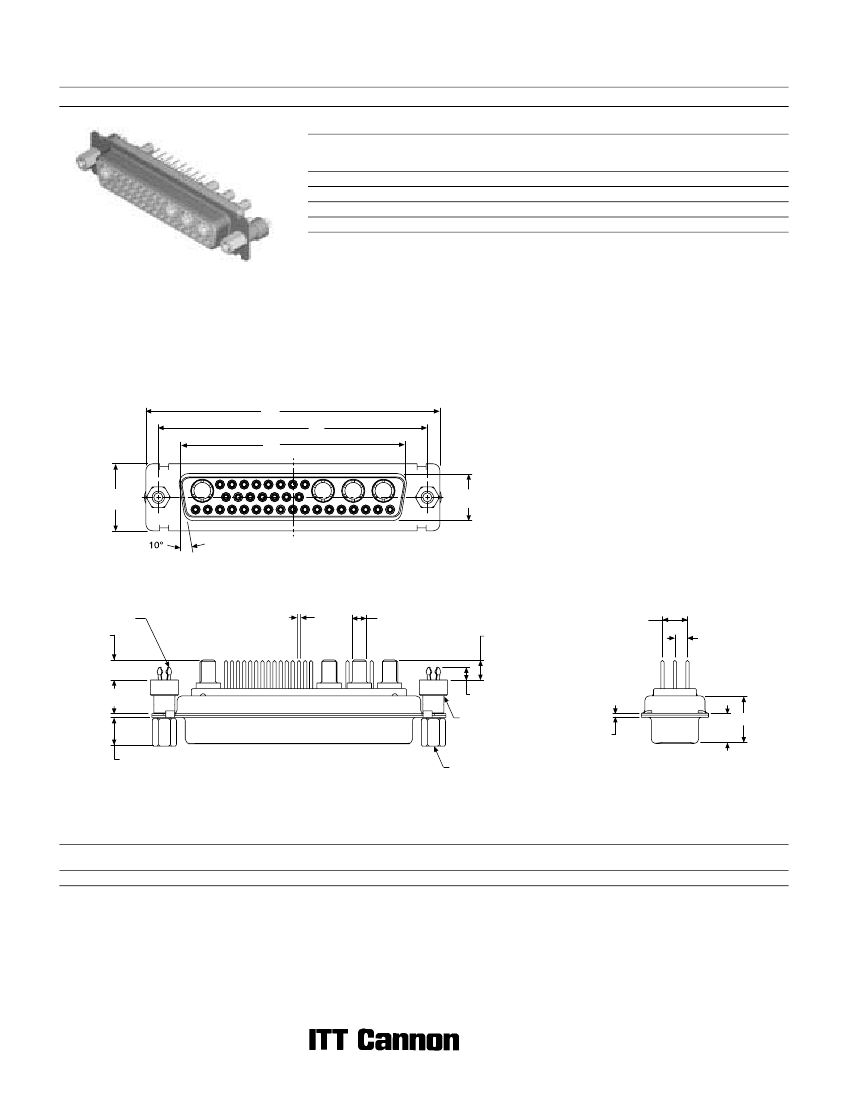

D Subminiature

40 A High Power Straight — European PC Tails (Size DD)

Receptacle

Part Numbers with Standoff #4-40 UNC

Shell Size

Layout

24W7

36W4

43W2

47W1

Part Number

Without Screw Locks

Without Boardlocks

DDMV24H7SYA197

DDMV36H4SYA197

DDMV43H2SYA197

DDMV47H1SYA197

Part Number

Without Screw Locks

With Boardlocks

DDMZ24H7SYA197

DDMZ36H4SYA197

DDMZ43H2SYA197

DDMZ47H1SYA197

Combo D



Part Number

With Screw Locks

With Boardlocks

DDMN24H7SYA197

DDMN36H4SYA197

DDMN43H2SYA197

DDMN47H1SYA197

For M3 threads replace MV with MT, MZ with MQ, MN with MU.

Note: For performance class 2 substitute K126 for A197. Example: DDMV24H7SYK126

Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see page 259.

For panel cutouts, see page 221.

Engaging Face

BOARDLOCK

4,65

(.183)

Ø 0,60

(.024)

Ø 3,18

(.125)

5,69

(.224)

4,52 (.178)

2,84

(.112)

7,62

0,25

(.300

.010)

2,92

(.115)

STANDOFF

#4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Screw lock, boardlock, and high power

contact removed for clarity

Dimensions

Shell Size

±0,38

(.015)

66,93 (2.635)

±0,13

(.005)

52,42 (2.064)

±0,13

(.005)

61,11 (2.406)

±0,13

(.005)

10,74 (.423)

±0,38

(.015)

15,37 (.605)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change

DDMZ24H7SYA197 Related Products

	DDMZ24H7SYA197	DDMZ47H1SYA197
Description	D Subminiature Connector, 24 Contact(s), Female, Solder Terminal, Receptacle,	D Subminiature Connector, 47 Contact(s), Female, Solder Terminal, Receptacle,
Maker	ITT	ITT
Reach Compliance Code	compliant	compliant
Other features	COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT	COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYESTER	POLYESTER
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Housing size	5/D	5/D
Termination type	SOLDER	SOLDER
Total number of contacts	24	47
UL Flammability Code	94V-0	94V-0
