SC-RJIP67: DescriptionFiber Optic SC Connector, Multi Mode, Duplex, Plug; CategoryThe connector The connector; File Size315KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

SC-RJIP67 Overview

Fiber Optic SC Connector, Multi Mode, Duplex, Plug

SC-RJIP67 Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Reach Compliance Code	compliant
Other features	STANDARD: IEC 61754-24
Body/casing type	PLUG
Connection Type	DUPLEX
Connector type	FIBER OPTIC SC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
Insertion loss	0.5 dB
MIL compliance	NO
Manufacturer's serial number	SC-RJ
model	MULTI
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

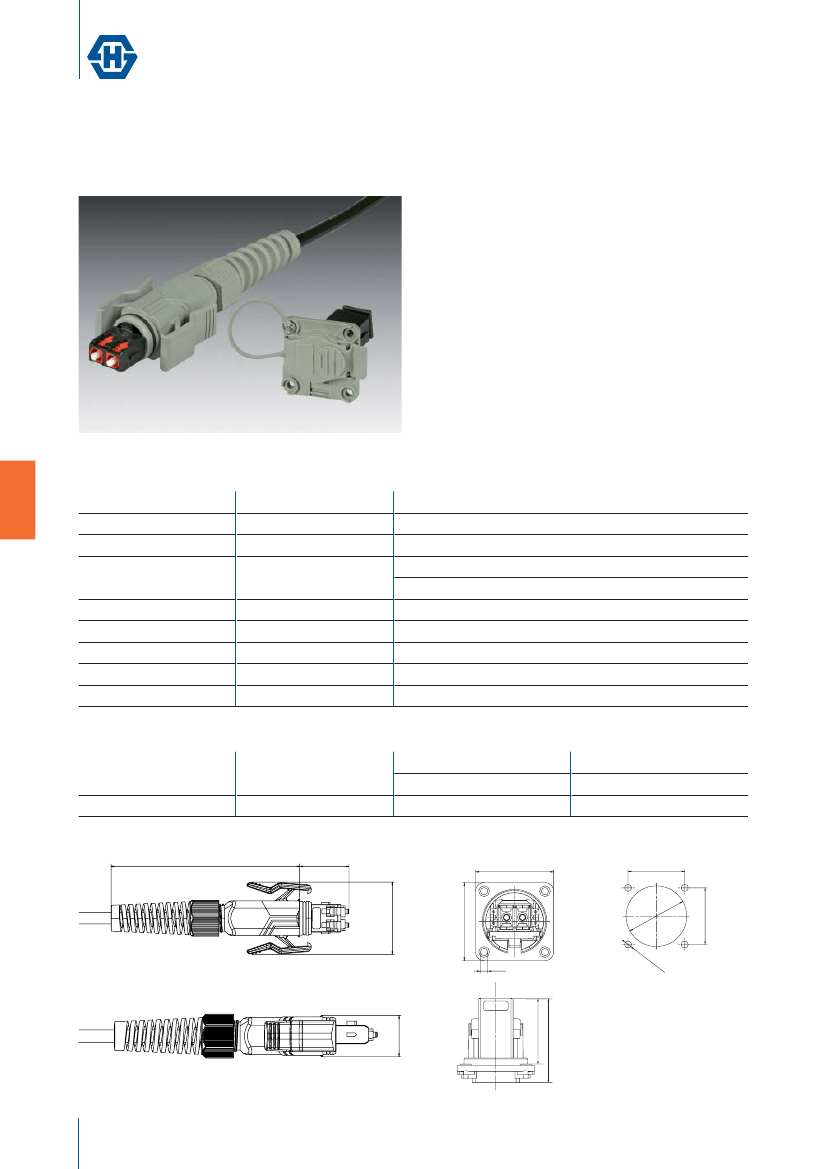

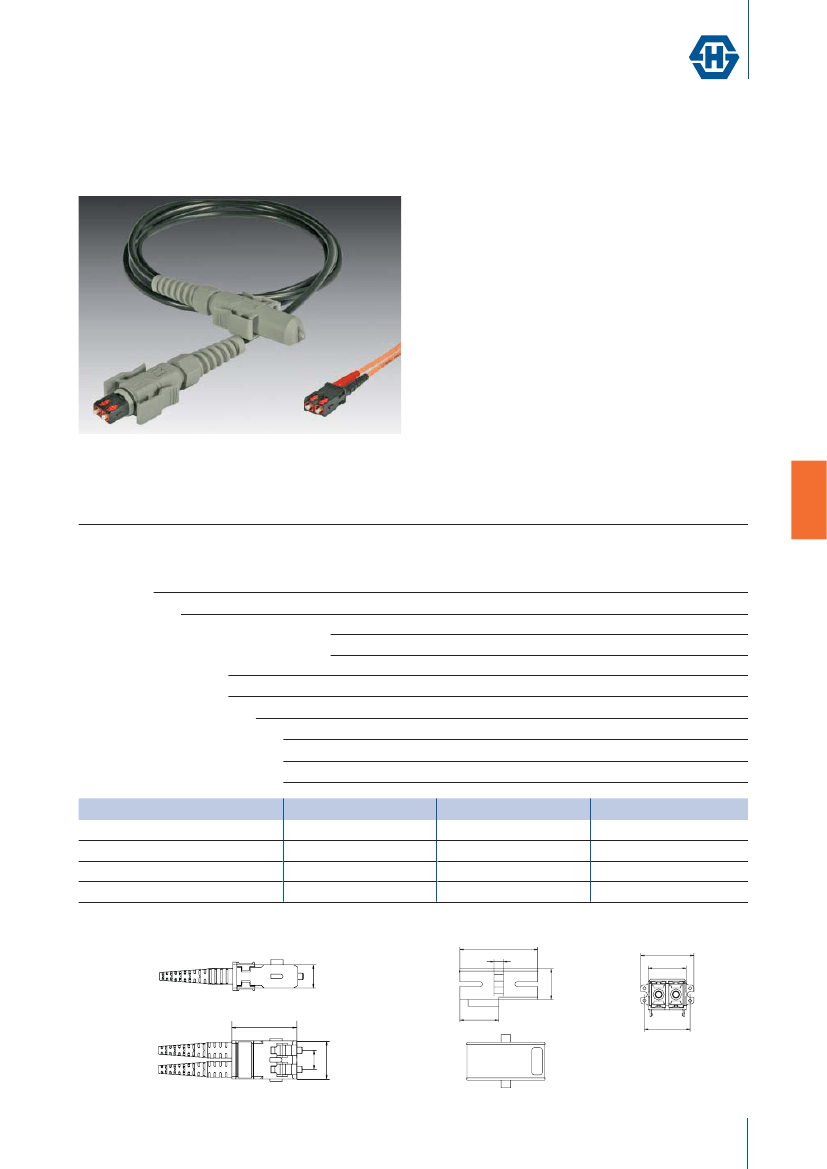

SC-RJ IP67 CONNECTOR
