33FXL-SM1-S-H-TB

Description
Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size115KB,2 Pages
ManufacturerJST
Download Datasheet Parametric View All

33FXL-SM1-S-H-TB Overview

Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

33FXL-SM1-S-H-TB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerJST
Reach Compliance Codeunknown
Other featuresLOW PROFILE
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTIN OVER COPPER
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch0.3 mm
Termination typeSURFACE MOUNT
Total number of contacts33
UL Flammability Code94V-0
0.3mmピッチ
FXL
CONNECTOR
0.3mm pitch/Connectors for FPC
Emboss Tape
NON-
Specifications –––––––––––––––––––
• Current rating: 0.2A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/50m
Ω
max.
After environmental testing/50m
Ω
max.
(variation from initial value)
• Insulation resistance:
50M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.3mm
<0.6mm pitch staggered>
Conductor width/0.3mm
Mating part thickness/0.2±0.03mm
Note
:
FPC to be actually used should be checked for applicability.

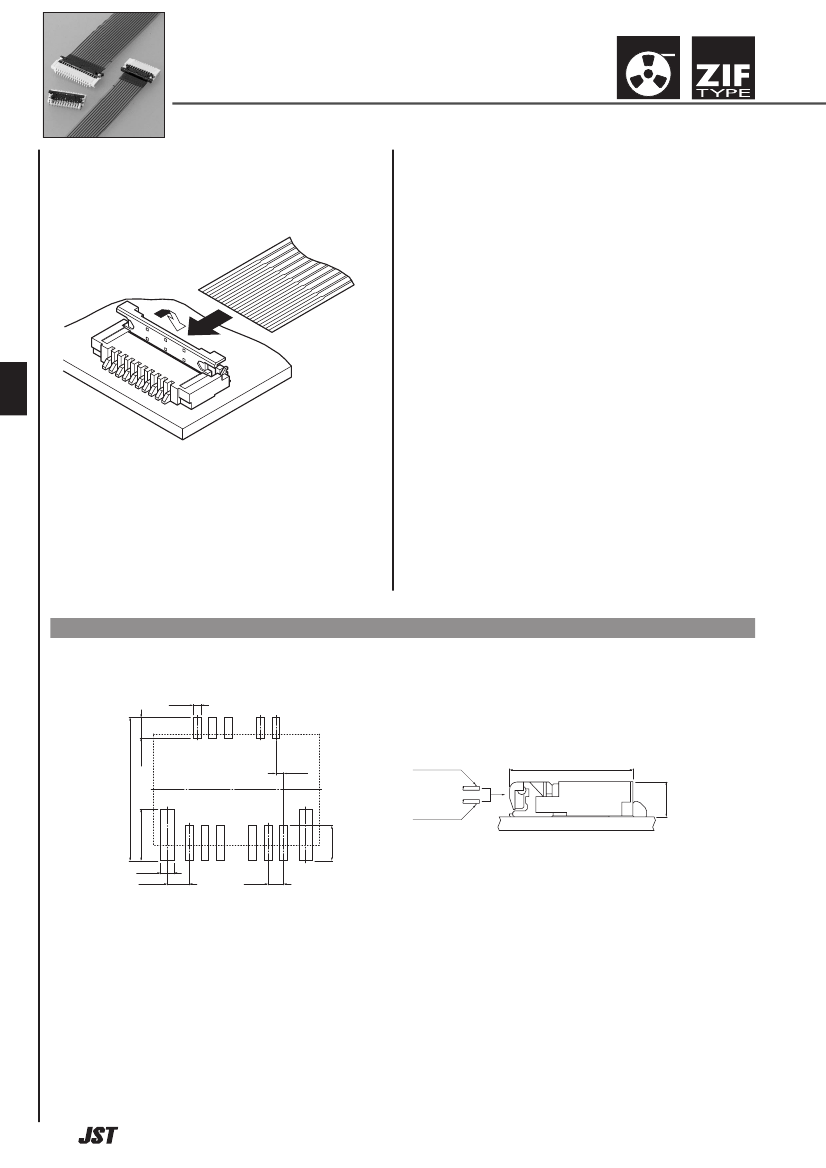

0.3mm pitch non-ZIF flip lock type
connector with 1.3mm low profile.
• 1.3mm height, low profile
• Optimum heat resistant material for
surface mount
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389

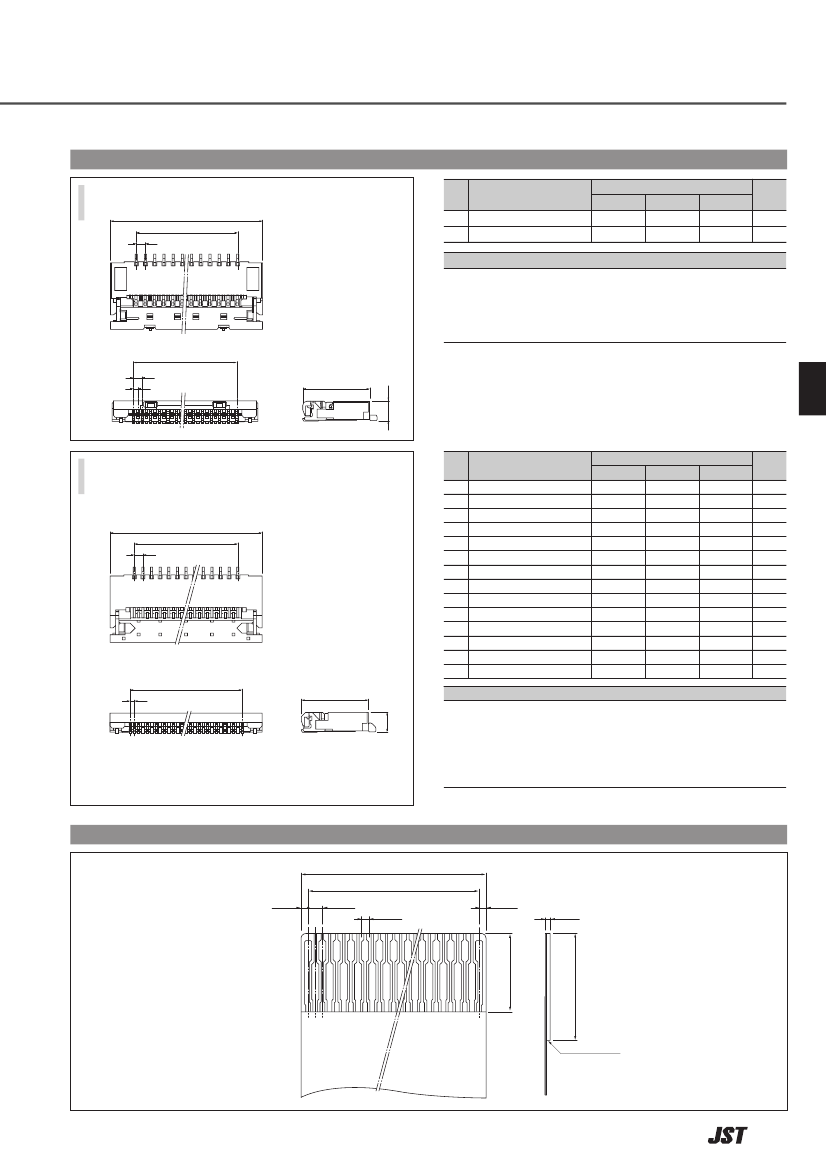

PC board layout (viewed from component side) and Assembly layout
0.3
±0.05
0.75
±0.05
Line b
0.3
±0.05
Contact point
Normal type
4.7
5.4
±0.1
Line a
1.95
±0.1
1.35
±0.05
Reverse type
Contact point
0.5
±0.05
0.85
±0.05
0.6
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
182
1.3
