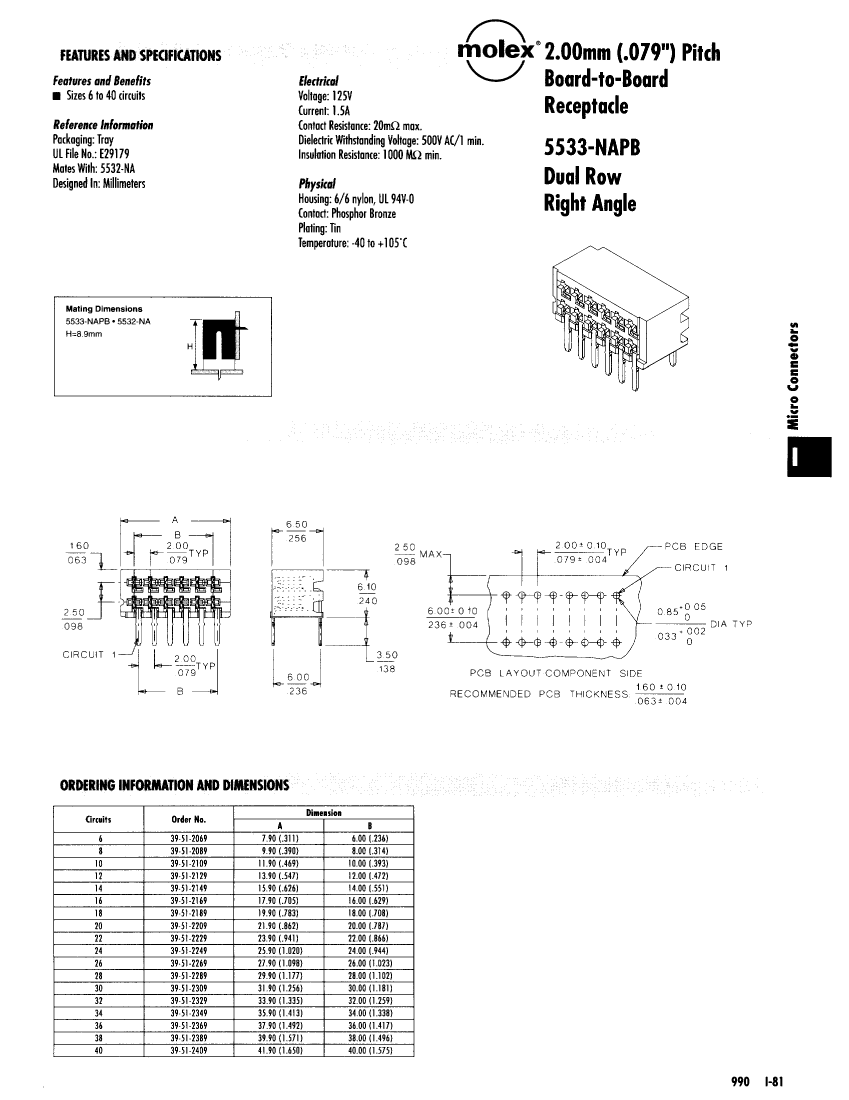

Board Connector, 34 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | NONE |
| body width | 0.24 inch |
| subject depth | 0.256 inch |
| body length | 1.413 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| insulator material | NYLON |
| MIL compliance | NO |
| Manufacturer's serial number | 5533 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.098 inch |
| Plug information | 39-26-9347 |
| Mixed contacts | NO |
| Installation option 1 | GUIDE SLOT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.9944 mm |
| polarization key | ENDS |
| Rated current (signal) | 1.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.138 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 34 |
| UL Flammability Code | 94V-0 |
| 39-51-2349 | 39-51-2409 | 39-51-2389 | 39-51-2329 | 39-51-2369 | |
|---|---|---|---|---|---|
| Description | Board Connector, 34 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle | Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle | Board Connector, 38 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle | Board Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle | Board Connector, 36 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | NONE | NONE | NONE | NONE | NONE |
| body width | 0.24 inch | 0.24 inch | 0.24 inch | 0.24 inch | 0.24 inch |
| subject depth | 0.256 inch | 0.256 inch | 0.256 inch | 0.256 inch | 0.256 inch |
| body length | 1.413 inch | 1.65 inch | 1.571 inch | 1.335 inch | 1.492 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | TIN | TIN |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON |
| MIL compliance | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 5533 | 5533 | 5533 | 5533 | 5533 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch |
| Plug information | 39-26-9347 | 39-26-9407 | 39-26-9387 | 39-26-9327 | 39-26-9367 |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation option 1 | GUIDE SLOT | GUIDE SLOT | GUIDE SLOT | GUIDE SLOT | GUIDE SLOT |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.9944 mm | 5.9944 mm | 5.9944 mm | 5.9944 mm | 5.9944 mm |
| polarization key | ENDS | ENDS | ENDS | ENDS | ENDS |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Guideline | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 34 | 40 | 38 | 32 | 36 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | - | - |
| Base Number Matches | - | 1 | 1 | 1 | - |
