DCR390J85
Phase Control Thyristor
Preliminary Information
DS5833-2 January 2010 (LN26981)
FEATURES
Double Side Cooling
High Surge Capability
KEY PARAMETERS
V
DRM
I
T(AV)
I
TSM
dV/dt*
dI/dt
8500V
387A
5250A
1500V/µs
200A/us
APPLICATIONS
High Power Drives
High Voltage Power Supplies
Static Switches
*
Higher dV/dt selections available
VOLTAGE RATINGS
Part and
Ordering
Number
Repetitive Peak
Voltages
V
DRM
and V
RRM
V
8500
8000
7000
Conditions
DCR390J85*
DCR390J80
DCR390J70
T
vj
= -40°C to 125°C,
I
DRM
= I
RRM
= 100mA,
V
DRM
, V
RRM
t
p
= 10ms,
V
DSM
& V
RSM
=
V
DRM
& V
RRM
+ 100V
respectively
Outline type code: J
(See Package Details for further information)

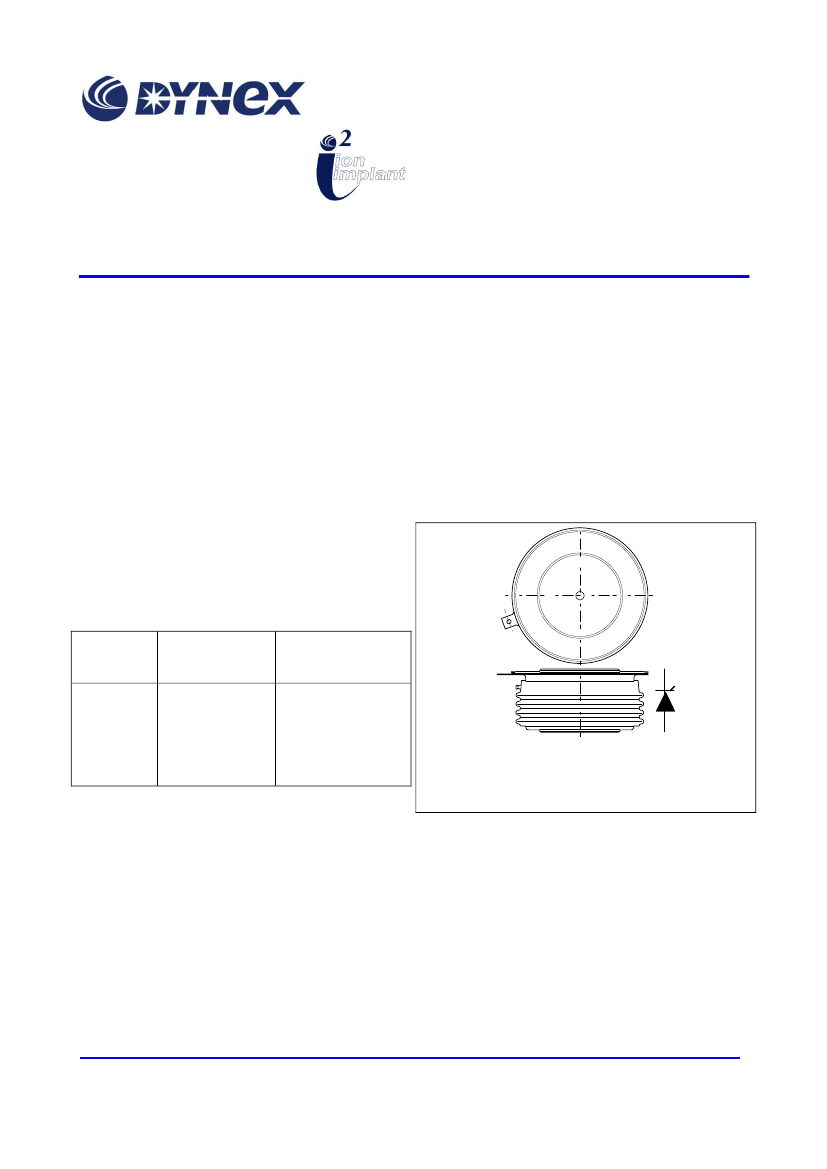

Fig. 1 Package outline
Lower voltage grades available.
0
0
*8200V @ -40 C, 8500V @ 0 C
ORDERING INFORMATION
When ordering, select the required part number
shown in the Voltage Ratings selection table.
For example:
DCR390J85
Note: Please use the complete part number when ordering
and quote this number in any future correspondence
relating to your order.
1/10
www.dynexsemi.com
DCR390J85
SEMICONDUCTOR
CURRENT RATINGS
T
case
= 60°C unless stated otherwise
Symbol
Double Side Cooled
I
T(AV)
I
T(RMS)
I
T
Parameter
Test Conditions
Max.
Units
Mean on-state current
RMS value
Continuous (direct) on-state current
Half wave resistive load
-
-
387
608
583
A
A
A
SURGE RATINGS
Symbol
I
TSM
It
2
Parameter
Surge (non-repetitive) on-state current
I t for fusing
2
Test Conditions
10ms half sine, T
case
= 125°C
V
R
= 0
Max.
5.25
0.138
Units
kA
MA s
2
THERMAL AND MECHANICAL RATINGS
Symbol
R
th(j-c)
Parameter
Thermal resistance – junction to case
Test Conditions
Double side cooled
Single side cooled
DC
Anode DC
Cathode DC
R
th(c-h)
Thermal resistance – case to heatsink
Clamping force 11.5kN
(with mounting compound)
T
vj
T
stg
F
m
Virtual junction temperature
Storage temperature range
Clamping force
Blocking V
DRM
/
VRRM
Double side
Single side
Min.
-
-
-
-
-
-
-55
10
Max.
0.0379
0.0745
0.0797
0.0072
.0144
125
125
13
Units
°C/W
°C/W
°C/W
°C/W
°C/W
°C
°C
kN
2/10
www.dynexsemi.com
DCR390J85
SEMICONDUCTOR
DYNAMIC CHARACTERISTICS
Symbol
I
RRM
/I
DRM
dV/dt
dI/dt
Parameter
Peak reverse and off-state current
Max. linear rate of rise of off-state voltage
Rate of rise of on-state current
Test Conditions
At V
RRM
/V
DRM
, T
case
= 125°C
To 67% V
DRM
, T
j
= 125°C, gate open
From 67% V
DRM
to 2x I
T(AV)
Gate source 30V, 10,
t
r
< 0.5µs, T
j
= 125°C
Repetitive 50Hz
Non-repetitive
Min.
-
-
-
-
Max.
100
1500
100
200
Units
mA
V/µs
A/µs
A/µs
V
T(TO)
Threshold voltage – Low level
Threshold voltage – High level
50A to 400A at T
case
= 125°C
400A to 1600A at T
case
= 125°C
50A to 400A at T
case
= 125°C
400A to 1600A at T
case
= 125°C
V
D
= 67% V
DRM
, gate source 30V, 10
t
r
= 0.5µs, T
j
= 25°C
-
-
-
-
-
1.162
1.3063
3.153
2.763
3
V
V
m
m
µs
r
T
On-state slope resistance – Low level
On-state slope resistance – High level
t
gd
Delay time
t
q
Turn-off time
T
j
= 125°C, V
R
= 100V, dI/dt = 5A/µs,
dV
DR
/dt = 20V/µs linear
-
1200
µs
Q
S
I
L
I
H
Stored charge
Latching current
Holding current
I
T
= 500A, T
j
= 125°C, dI/dt = 5A/µs,
T
j
= 25°C, V
D
= 5V
T
j
= 25°C, R
G-K
=
,
I
TM
= 500A, I
T
= 5A
2000
-
-
3000
3
300
µC
A
mA
3/10
www.dynexsemi.com
DCR390J85
SEMICONDUCTOR
GATE TRIGGER CHARACTERISTICS AND RATINGS
Symbol
V
GT
V
GD
I
GT
I
GD
Parameter
Gate trigger voltage
Gate non-trigger voltage
Gate trigger current
Gate non-trigger current
Test Conditions
V
DRM
= 5V, T
case
= 25°C
At 50% V
DRM,
T
case
= 125°C
V
DRM
= 5V, T
case
= 25°C
At 50% V
DRM,
T
case
= 125°C
Max.
1.5
0.4
250
15
Units
V
V
mA
mA
CURVES
1600
Instantaneous on-state current I
T
- (A)
25°C min
25°C max
1200
125°C min
125°C max
800
400
0
1.0
2.0
3.0
4.0
5.0
Instantaneous on-state voltage V
T
- (V)

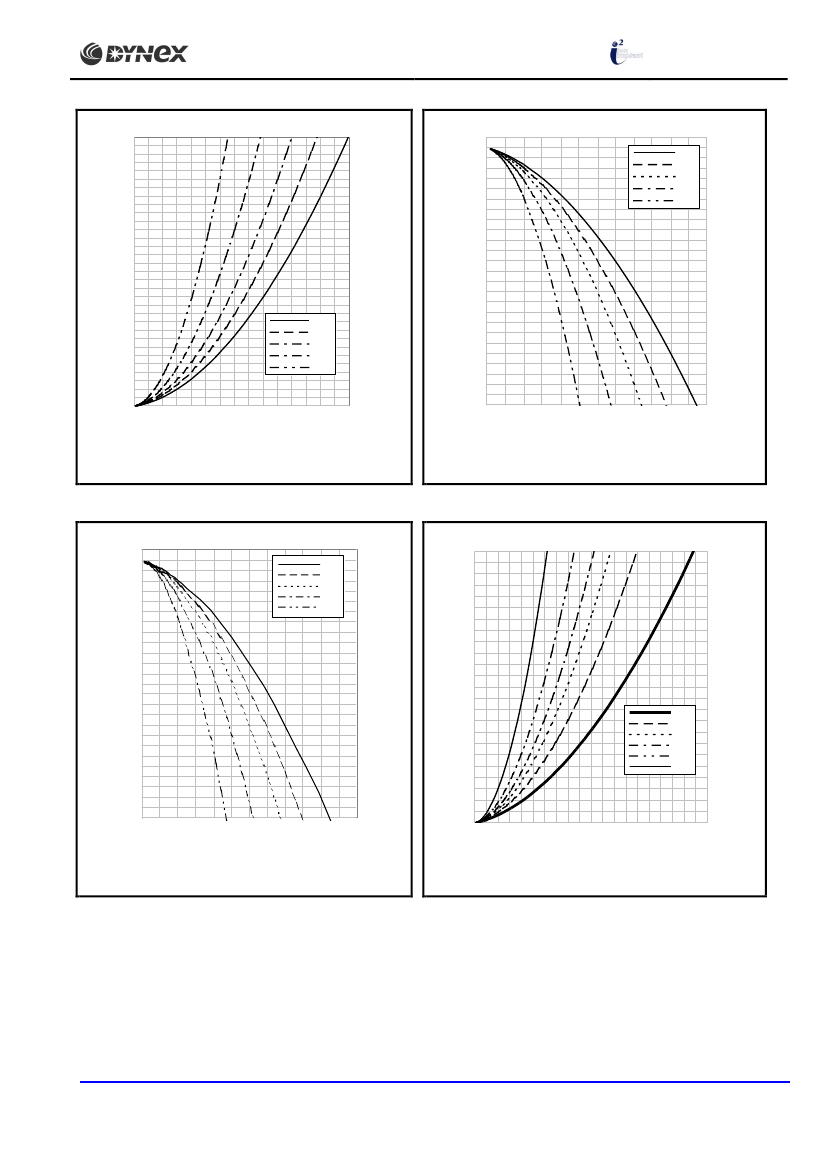

Fig.2 Maximum & minimum on-state characteristics
V
TM
EQUATION
V
TM
= A + Bln (I
T
) + C.I
T
+D.I
T
Where
A = 1.545561
B = -0.202735
C = 0.001865
D = 0.066158
these values are valid for T
j
= 125°C for I
T
50A to 1600A
4/10
www.dynexsemi.com
DCR390J85
SEMICONDUCTOR
16
130
Maximum case temperature, T ( C )
case
Mean power dissipation - (kW)
13
12
11
10
9
8
7
6
5
4
3
2
1
0
0
500
1000
1500
180
120
90
60
30
o
15
14
120
110
100
90
80
70
60
50
40
30
20
10
0
0
100
200
300
400
180
120
90
60
30
500
600
Mean on-state current, I
T(AV)
- (A)
Fig.3 On-state power dissipation – sine wave
Mean on-state current, I
T(AV)
- (A)
Fig.4 Maximum permissible case temperature,
double side cooled – sine wave
Maximum heatsink temperature, T
Heatsink
- ( C )
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0
100
200
300
400
500
600
180
120
90
60
30
12
11
o
Mean power dissipation - (kW)
10
9
8
7
6
5
4
3
2
1
0
0
500
1000
1500
2000
d.c.
180
120
90
60
30
Mean on-state current, I
T(AV)
- (A)
Mean on-state current, I
T(AV)
- (A)
Fig.5 Maximum permissible heatsink temperature,
double side cooled – sine wave
Fig.6 On-state power dissipation – rectangular wave
5/10
www.dynexsemi.com
