DNAG20TTEB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > DNAG20TTEB

Preview

DNAG20TTEB: Descriptiondiode terminator network; File Size211KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet View All

DNAG20TTEB Overview

diode terminator network

Preview

Download Datasheet

View All

diode terminator network

features

•

Fast reverse recovery time

Fast turn on time

Low capacitance

SMD packages

16 kV IEC61000-4-2 capable

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

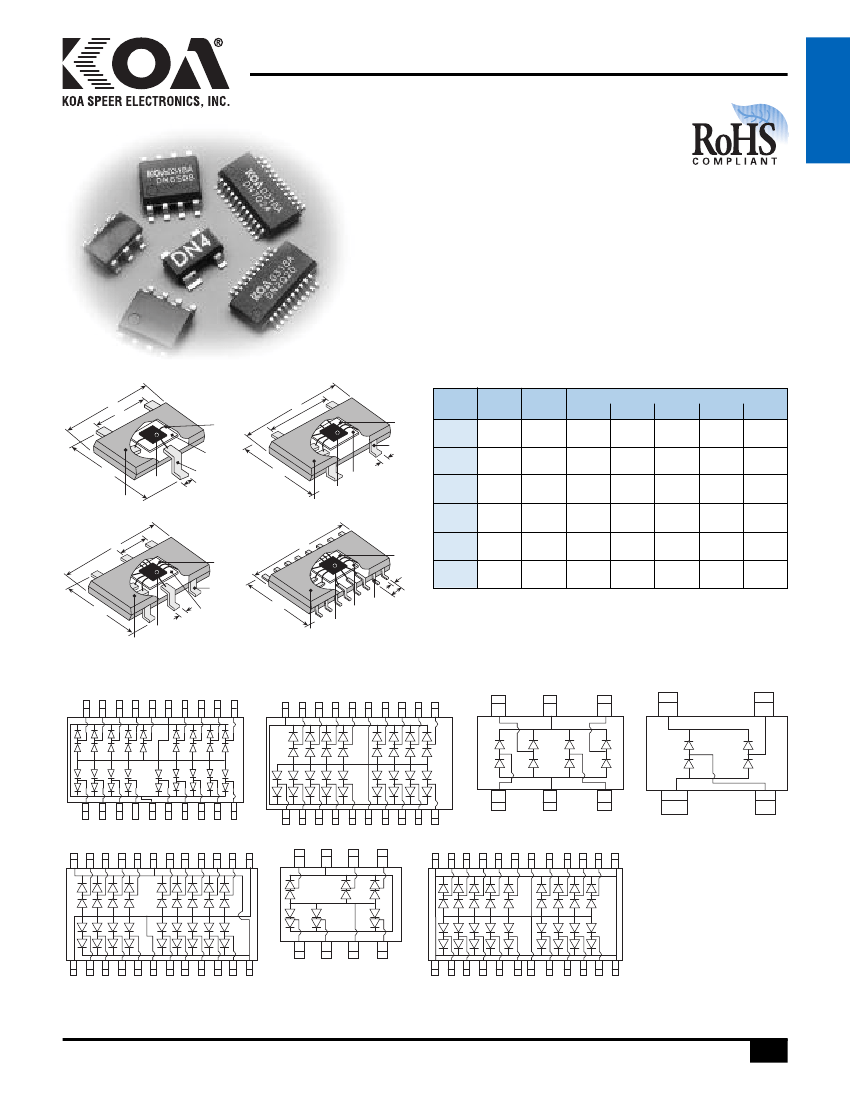

dimensions and construction

S03

Bonding

Wire

Die

Pad

Molded

Resin

Wafer

Lead

Molded

Resin

Die

Si Pad

Wafer

S04

Bonding

Wire

Lead

Package Total

Code Power

S03

S04

S06

N08

225mw

400mw

1000mw

Pins

Dimensions

inches

(mm)

L ±0.2 W ±0.2 p ±0.1

Pkg Ht

d ±0.05

±0.2

.115

(2.92)

.115

(2.92)

.115

(2.92)

.190

(4.83)

.341

(8.66)

.341

(8.66)

.091

(2.30)

.091

(2.30)

.110

(2.80)

.236

(5.99)

.236

(5.99)

.236

(5.99)

.075

(1.91)

.075

(1.91)

.037

(0.95)

.050

(1.27)

.025

(0.635)

.025

(0.635)

.037

(0.95)

.037

(0.95)

.037

(0.95)

.063

(1.60)

.063

(1.60)

.063

(1.60)

.017

(0.43)

.017

(0.43)

.017

(0.43)

.016

(0.41)

.010

(0.25)

.010

(0.25)

S06

N08, Q20,

Q24

Bonding

Wire

Lead

Bonding

Wire

Lead

Q20

Q24

Wafer

Molded

Resin

Die

Pad

Die

Pad

Wafer

Molded

Resin

circuit schematic

DNA:

20 pins

DN2:

20 pins

DN3:

6 pins

DN4:

4 pins

DN5:

24 pins

DN6:

8 pins

DN7:

24 pins

For further information on packaging, please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

12/28/10

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
