ZZW-AO-1524-57P07T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> ZZW-AO-1524-57P07T

Preview

ZZW-AO-1524-57P07T: DescriptionMIL Series Connector, 57 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size161KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

ZZW-AO-1524-57P07T Overview

MIL Series Connector, 57 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle

ZZW-AO-1524-57P07T Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26500, COMPATIBLE CONTACT: ZZL-4012-36LD; ZZL-4020-36LD
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	ZZW
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	ALUMINUM ALLOY
Housing size	24
Termination type	CRIMP
Total number of contacts	57

Preview

Download Datasheet

View All

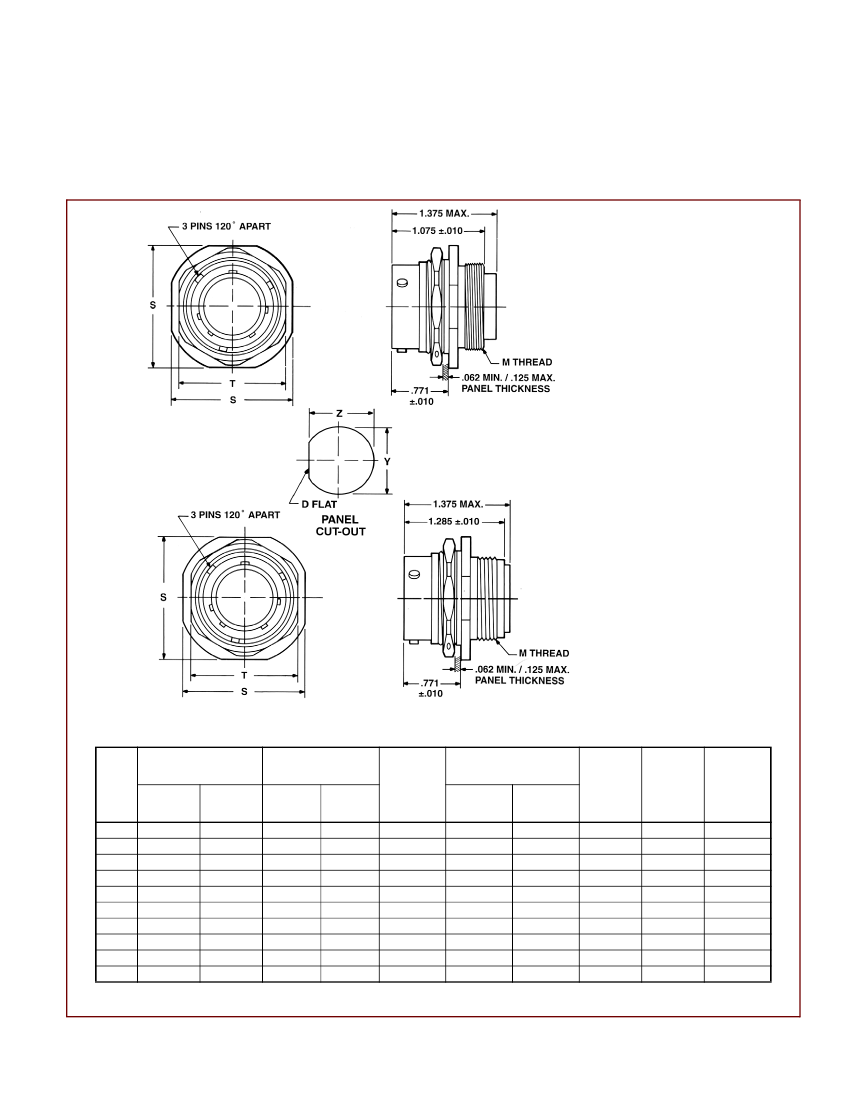

D-Hole Mounted Receptacle

aluminum/stainless steel

bayonet coupling

STAINLESS STEEL

Pyle ZZW-RC-15XX* Series

MS24265EXXBXX*

Military Class E

ALUMINUM

Pyle ZZW-AC-15XX* Series

MS24265RXXBXX*

Military Class R

* To complete order number,

see how to order, page 7.

Cable Support

Thread M

Shell

Size

Steel

NS-2A

Alum.

UNEF-2A

Modified

Aluminum Connector

Weight (lbs.) max

including Contacts

Insert

Socket

Insert

Flange

Width

S ±.005

Lock Nut Flats

T

Mounting

Hole

Dia. Y

Mounting

Hole

Flat Z

Steel

Alum.

Recom. min.

Torque

Jam Nut

Lb. - inches

08**

10

12**

14

16

18

20

22

24

28

NA

.563-36

NA

.803-36

.930-36

1.036-36

1.161-36

1.286-36

1.411-36

NA

.437-28

.562-24

.750-20

.812-20

.937-20

1.062-18

1.187-18

1.312-18

1.437-18

NA

.029

.049

.069

.087

.104

.131

.152

.181

.208

NA

.030

.050

.070

.089

.106

.133

.157

.187

.212

NA

.979

1.104

1.291

1.391

1.561

1.641

1.766

1.954

2.079

NA

.937

1.125

1.062

1.187

1.312

1.562

1.585

1.687

NA

.812

.937

1.125

1.187

1.312

1.437

NA

1.687

1.812

NA

.635

.760

.947

1.010

1.135

1.260

1.385

1.510

1.635

NA

.605

.730

.917

.980

1.105

1.225

1.350

1.475

1.600

NA

33

36

56

65

69

81

100

123

133

NA

NA designates not available. ** Not available in Stainless Steel.

All dimensions for reference only.
