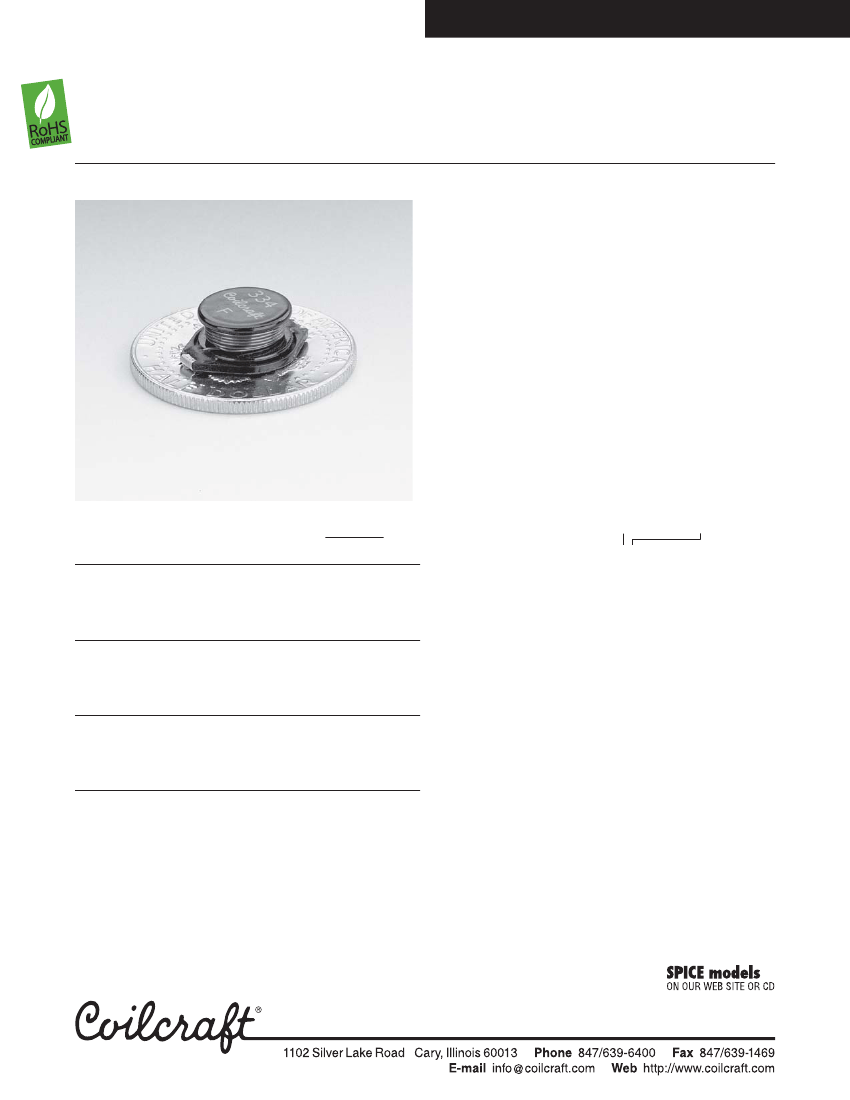

SMT Power Inductors – DO5022P Series
• Excellent current handling – up to 28.8 A
sat
.
• Low dc resistance keeps power losses to a minimum
Designer’s Kit C311
contains 3 of each part
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant gold over nickel over phos bronze.
Other terminations available at additional cost.
Weight
2.8 – 3.9 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250 per 13″ reel Plastic tape: 32 mm wide,
0.38 mm thick, 24 mm pocket spacing, 7.8 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part
number
1
L
±20%
2
(µH)
Isat
(A)
4
DCR
SRF
max
typ
3
10% 20%
Irms
5
(Ohms) (MHz) drop drop (A)
0.009
0.014
0.018
0.020
0.029
0.031
0.036
0.047
0.066
0.086
0.13
0.19
0.25
0.38
0.56
0.85
1.1
1.8
80
80
60
40
30
30
22
20
15
9
8
7
6
5
4
3
2.5
2.0
27.6
18.5
14.5
12.5
10.3
9.4
7.5
6.5
5.2
4.2
3.7
3.0
2.5
2.0
1.7
1.5
1.2
0.95
28.8
19.8
15.5
13.8
11.5
10.5
8.2
7.2
6.1
4.7
4.1
3.4
2.8
2.3
1.9
1.7
1.3
1.1
8.6
7.1
6.2
5.3
4.8
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
1. When ordering, please specify
termination
and
packaging
codes:
DO5022P-105MLD
DO5022P-102ML_
1.0
DO5022P-222ML_
2.2
DO5022P-332ML_
3.3
DO5022P-562ML_
5.6
DO5022P-822ML_
8.2
DO5022P-103ML_
10
DO5022P-153ML_
15
DO5022P-223ML_
22
DO5022P-333ML_
33
DO5022P-473ML_
47
DO5022P-683ML_
68
DO5022P-104ML_
100
DO5022P-154ML_
150
DO5022P-224ML_
220
DO5022P-334ML_
330
DO5022P-474ML_
470
DO5022P-684ML_
680
DO5022P-105ML_ 1000
Termination: L
= RoHS compliant gold over nickel over phos bronze.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (250 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP
4263B LCR meter or equivalent.
3. SRF >13 MHz measured using Agilent/HP 8753D network analyzer;
<13 MHz using Agilent/HP 4192A.
4. DC current at which inductance drops the specified amount from its
value without current.
5. Current that causes a 40°C temperature rise from 25°C ambient.
6.Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 172-1
Revised 10/14/08
© Coilcraft, Inc. 2009
Document 172-2
SMT Power Inductors – DO5022P Series

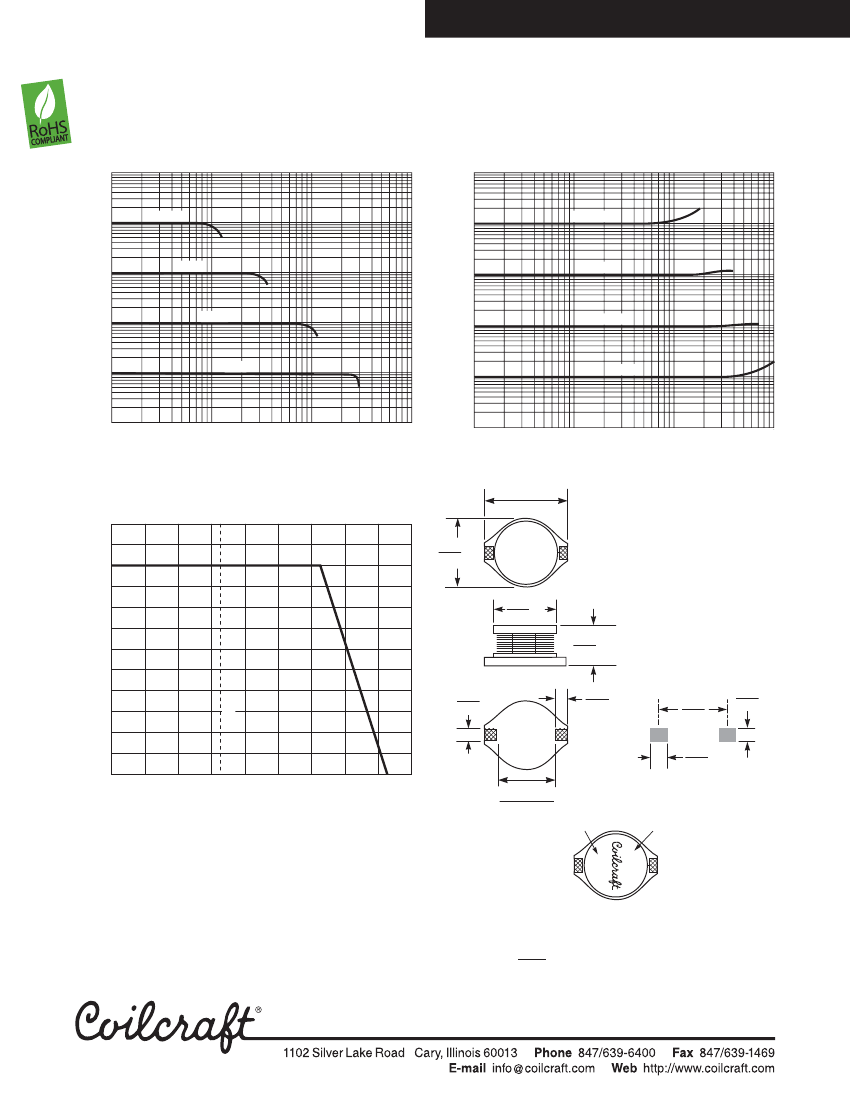

Typical L vs Current
10000
1000 µH
Typical L vs Frequency
10000
1000 µH
1000
1000
Inductance (µH)
100
100 µH
Inductance (µH)
100
100 µH
10
10 µH
10
10 µH
1
1 µH
1
1 µH
0.1
0.1
1
10
100
0.1
0.01
0.1
1
10
Current (A)
Frequency (MHz)
additional 0.02/0,508
*
Allow anand 0.01/0,254 in
in width
height for optional tin-lead and
tin-silver-copper application.
Current Derating
120
110
100
0.710 ±0.020
*
18,03 ±0,508
0.600
max
15,24
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
0.500
dia
12,70
0.280
max
*
7,11
25°C
0.100
2,54
0.100
2,54
0.605
15,37
0.110
2,79
0.115
2,92
Ambient temperature (°C)
0.510 ±0.010
12,95 ±0,25
Internal code
Recommended
Land Pattern
Dash number
XXX
Part Marking
Start
Finish
Part marking since Feb. 2005. Parts manufactured
prior to that date may have color dots.
Visit www.coilcraft.com/colrpowr.cfm for details.
X
Dimensions are in
inches
mm
Specifications subject to change without notice.
Please check our website for latest information.
Document 172-2
Revised 10/14/08
© Coilcraft, Inc. 2009
