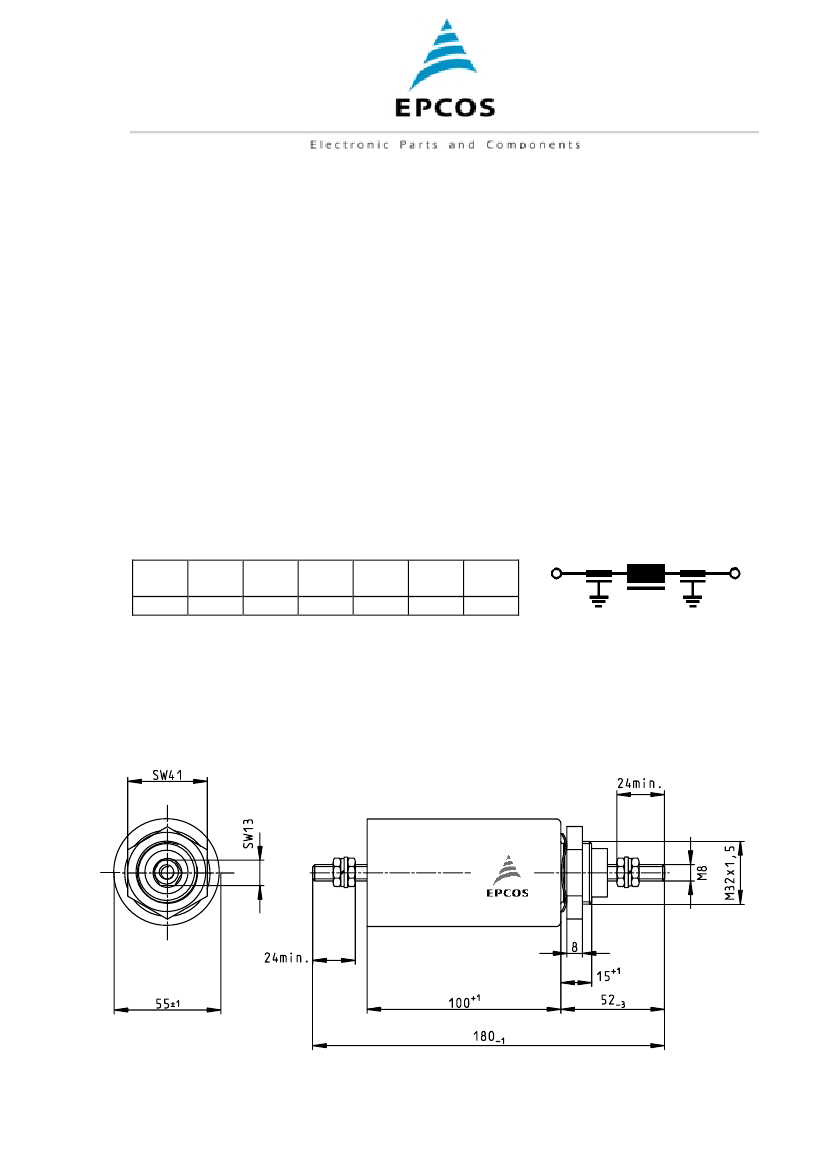

Feedthrough Filter
B85321A4205B101
FEATURES:
Metallized (selfhealing) film capacitors. High insertion loss up to the GHz range.
Metal case, resin sealed, plastic insulating bush.
RATINGS AND CHARACTERISTICS:
Rated Capacitance
Capacitance Tolerance
Rated Voltage
Subclass (EN133200)
Rated Current (T
amb
.60°C)
Test Voltage (Terminal-Case)
Climatic Category
Approx.Weight
Mounting Thread
Terminal Thread
TYPICAL INSERTION LOSS (50Ω):
Ω
f
10
100
1
10
KHz
KHz
MHz
MHz
dB
12
30
60
>100
2 x 1µF
±20%
440VAC / 600VDC
X2
100A
2500VDC / 2s
40/085/56
600g
M32 x 1,5
M8
Circuit Diagram:
100
MHz
>100
1
GHz
>100
MATERIAL:
Metal case, nickel plated. UL-listed material for resin and plastic insulating bush.
Terminals, nuts and washers are nickel- or tin plated.
