CDRH8D58/LDNP-470NB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH8D58/LDNP-470NB

CDRH8D58/LDNP-470NB: DescriptionGeneral Purpose Inductor, 47uH, 30%, 1 Element, Ferrite-Core, SMD, 3232, ROHS COMPLIANT; CategoryPassive components inductor; File Size98KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH8D58/LDNP-470NB Overview

General Purpose Inductor, 47uH, 30%, 1 Element, Ferrite-Core, SMD, 3232, ROHS COMPLIANT

CDRH8D58/LDNP-470NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	3232
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	3232
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.0905 Ω
Nominal inductance(L)	47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH8D58/LD
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	5.8 mm
Package length	8 mm
Package form	SMT
Package width	8 mm
method of packing	Box
Maximum rated current	2.2 A
series	CDRH8D58/LD
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

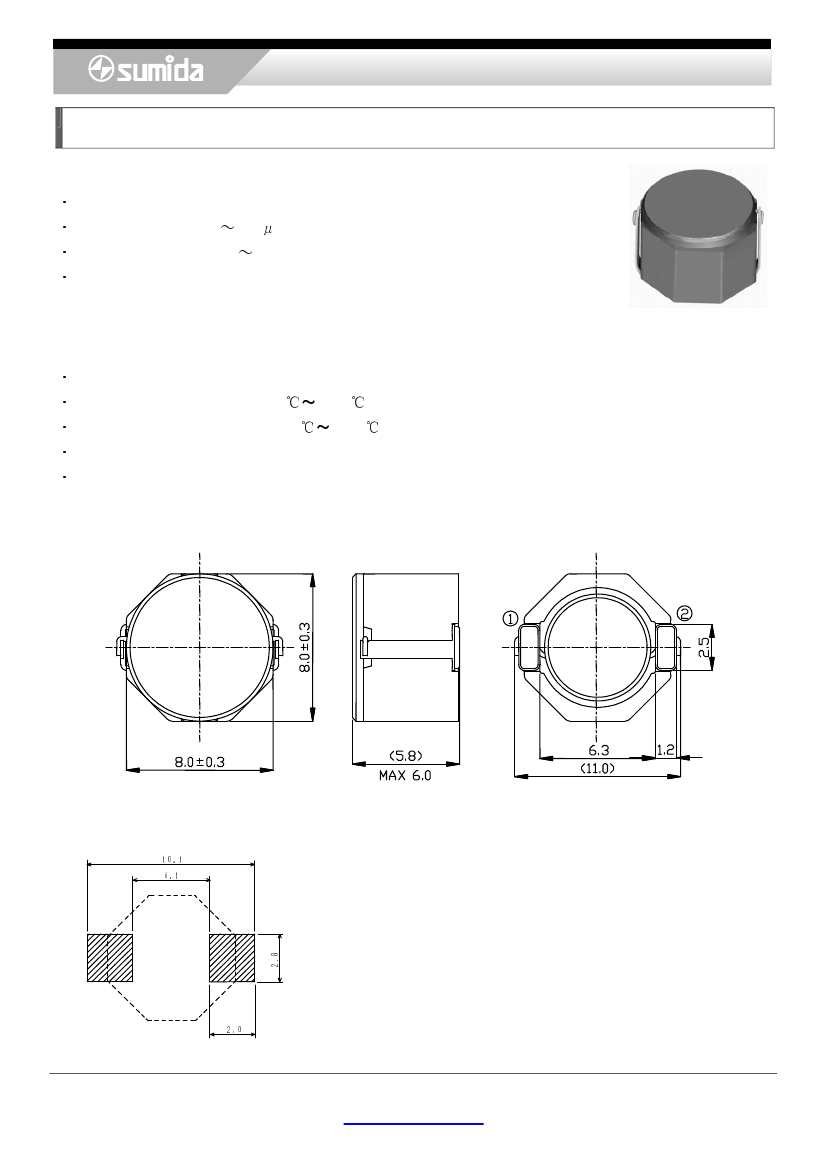

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH8D58/LD

◆

Product Description

8.3×8.3mm Max.(L×W), 6.0mm Max. Height.

Inductance range: 2.8 100 H.

Rated current range: 0.8 4.7A.

In addition to the standards versions shown here,

custom inductors are also available to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

Ideally used in Notebook PC, Game machine, DVD, LCD TV ,STB etc as DC-DC converter inductors.

RoHS Compliance and Halogen Free.

◆

Dimensions (mm)

◆

Land Pattern (mm)

1 .0 1

1 .6

Please refer to the sales offices on our website for a representative near you

℃ ½℃

Storage temperature range: -40

μ ½

0.2

・

+105 .

+105

(Including coil’s self temperature rise).

www.sumida.com

1/2
