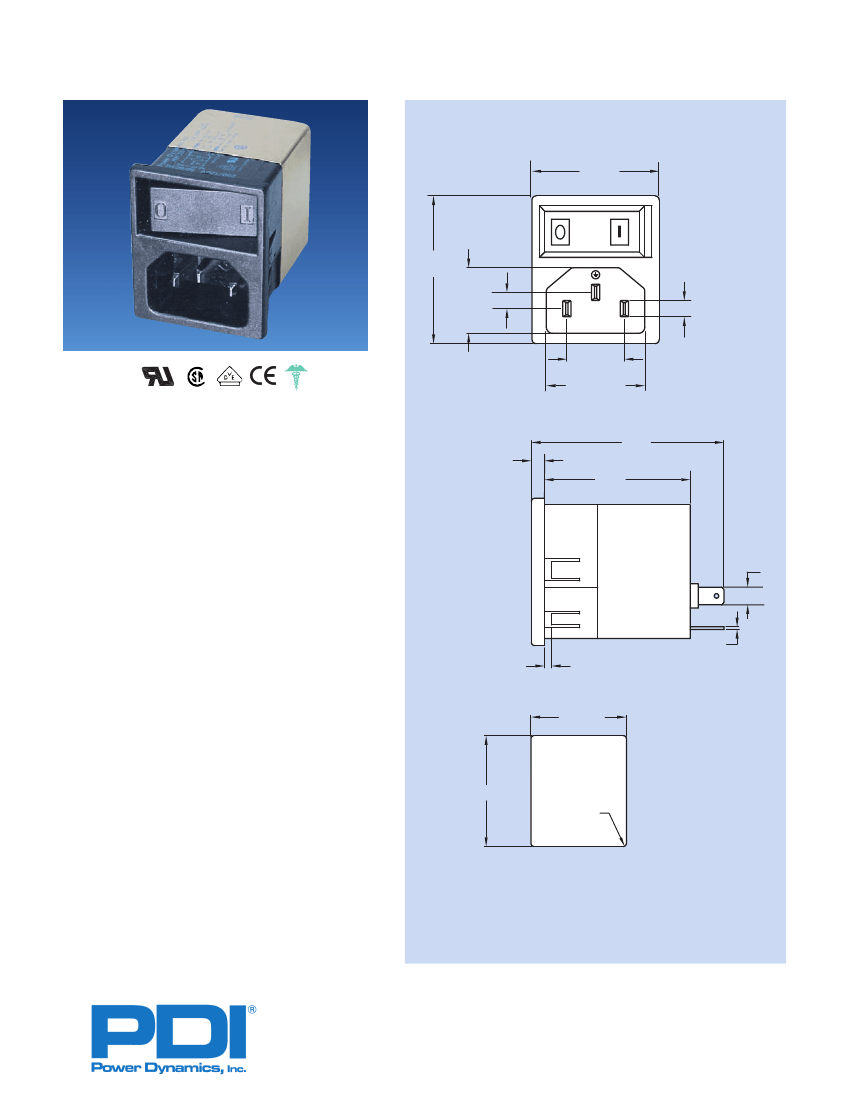

HGN-336
IEC 60320 INLET SOCKET WITH SWITCH, SNAP-IN
MECHANICAL DIMENSIONS
(Unit: mm)
33.0
40.0
16.0
+0.5
4.0 +0.2
10A 250V
4.0 +0.2
14.0+0.2
24.0+0.5
FEATURES
The HGN-336 power entry module features an IEC
Connector and a two-pole switch. The unit protects electronic
equipment against malfunction due to fast common-mode and
differential mode interferences. Designed for labor saving
snap-in mounting. These filters are also available for Medical
equipment with low leakage current.
57.0
3.0
41.5
APPLICATIONS
Computer & networking equipment, Measuring & control
equipment, Data processing equipment, laboratory instruments,
Switching power supplies, other electronic equipment.
6.30
TECHNICAL DATA
0.8
A +0.2
•
Rated Voltage: 115/250VAC
•
Rated Current: 1A, 2A, 3A, 4A, 6A,
•
Power Line Frequency: 50/60Hz
•
Max. Leakage Current each
Line to Ground:
@ 250VAC 50Hz: 0.5mA, max
@ 250VAC 50Hz: 2
µ
A*, max
•
Hipot Rating (one minute)
Line to Ground: 2250VDC
Line to Line: 1450VDC
•
Temperature Range: -25C to +85C
* Medical application
30+0.2
36.5 +0.2
R1.5 TYP.
RECOMMENDED
PANEL CUTOUT
Specifications subject to change without notice. Dimensions (mm). See Appendix A for
recommended power cord. See PDI full line catalog for detailed specifications on power cords.
60
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
HGN-336 Series Example & Ordering Code
HGN-336
- 1
CURRENT RATING (A):
M -
F
- 150
=
=
=
=
=
STANDARD TYPE
WITHOUT C(Y); C(X) ONLY
1
2
3
4
6
=
BLANK
SCHEMATIC:
=M
TERMINAL:
QUICK CONNECT (6.3 x 0.8)
=F
PANEL THICKNESS*:
0.06 (1.5MM)
0.062 (1.6MM)
0.08 (2.0MM)
= 150
= 160
= 200
* More panel thickness options are available upon request
Attenuation Tables & Schematics
Non-Medical Applications
Insertion loss in dB (50 Ohm circuit)
Current
Rating
1A
2A
3A
4A
6A
L
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
Value .01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10 30
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
18
12
5
5
3
30
25
20
14
10
40
35
30
21
20
58
49
41
35
30
50
49
48
40
34
50
50
54
50
45
65
65
60
70
55
28
30
34
30
35
9
10
10
9
9
13
14
14
14
14
13
16
19
19
19
45
40
31
20
19
65
60
54
45
40
70
70
70
70
70
60
60
64
60
60
30
30
35
30
35
LINE
N
0.033 F
L(mH)
0.033 F
Fuse
2200pF
N'
E'
LOAD
1M
E
P
2200pF
Fuse
P'
L(mH)
Insertion loss in dB (50 Ohm circuit)
Medical Applications
Current
Rating
1A
2A
3A
4A
6A
L
Value
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
.01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10 30
22
18
18
10
8
32
30
28
18
13
41
38
33
23
19
51
40
38
30
27
48
42
38
32
29
37
36
30
32
29
31
30
23
30
29
22
21
18
22
25
9
9
9
9
9
11
11
15
13
18
15
11
14
19
21
50
42
38
19
19
67
67
55
44
47
82
82
82
82
84
71
75
76
79
82
37
38
35
40
50
LINE
N
0.033 F
L(mH)
0.033 F
N'
E'
P'
LOAD
P
L(mH)
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
1M
E
61
