HGN-337
IEC 60320 INLET SOCKET WITH SWITCH AND A FUSE HOLDER,
SNAP-IN MOUNT

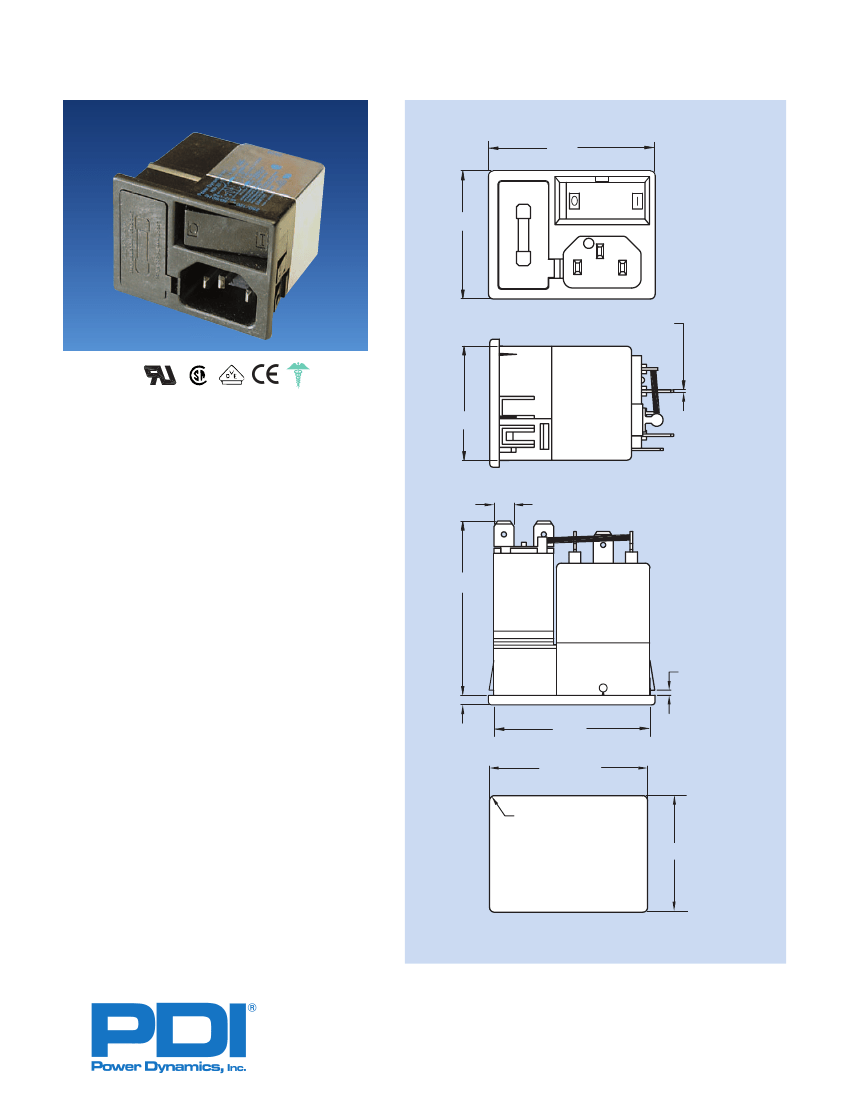

MECHANICAL DIMENSIONS
(Unit: mm)
52.0
Use only with a 250V fuse
40.0
0.80 TYP.
FEATURES
36.0
The HGN-337 power entry module feature a combination
IEC Connector, two pole on/off switch and fuse holder that
accepts both European 5 x 20mm or N. American
1/4” x 1 1/4” (3AG) fuse. The HGN-337 protects electronic
equipment from common-mode and differential-mode
interferences.
These filters are also available for Medical equipment with
low leakage current to comply with UL 544 & UL2601.
6.3 TYP.
APPLICATIONS
55.0
Computer & networking equipment, Measuring & control
equipment, Data processing equipment, laboratory instruments,
Switching power supplies, other electronic equipment.
TECHNICAL DATA
A+0.2
•
Rated Voltage: 125/250VAC
•
Rated Current: 1A, 2A, 3A, 4A, 6A,
•
Power Line Frequency: 50/60Hz
•
Max. Leakage Current each
Line to Ground:
@ 250VAC 50Hz: 0.5mA, max
@ 250VAC 50Hz: 2
µ
A*, max
•
Hipot Rating (one minute)
Line to Ground: 2250VDC
Line to Line: 1450VDC
•
Temperature Range: -25C to +85C
* Medical application
3.00
49.0
49.5 +0.2
4X R1.5
36.5 +0.2
RECOMMENDED
PANEL CUTOUT
Specifications subject to change without notice. Dimensions (mm). See Appendix A for
recommended power cord. See PDI full line catalog for detailed specifications on power cords.
62
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
HGN-337 Series Example & Ordering Code
HGN-337
- 1
CURRENT RATING (A):
M -
F
- 150
=
=
=
=
=
STANDARD TYPE
WITHOUT C(Y); C(X) ONLY
1
2
3
4
6
=
BLANK
SCHEMATIC:
=M
TERMINAL:
QUICK CONNECT (6.3 x 0.8)
=F
PANEL THICKNESS*:
0.06 (1.5MM)
0.062 (1.6MM)
0.08 (2.0MM)
= 150
= 160
= 200
* More panel thickness options are available upon request
Attenuation Tables & Schematics
Non-Medical Applications
Insertion loss in dB (50 Ohm circuit)
Current
L
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
Rating Value .01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10
1A 10.3mA 18 30 40 57 50 50 64 29
9 13 13 45 65 70 60
2A
4.6mA 11 25 35 49 49 70 60 30 10 14 16 40 60 70 60
3A
2.5mA 5 20 30 41 48 54 60 34 10 14 18 30 55 70 61
4A
1.2mA 5 12 21 35 40 50 70 32
9 14 19 20 45 70 60
6A
0.8mA 2 10 20 30 34 45 55 35
9 14 19 19 40 70 60
0.033 F
0.033 F
30
30
34
32
35
LINE
1M
E
P
E'
2200pF
Fuse
P'
L(mH)
-
Medical Applications
Insertion loss in dB (50 Ohm circuit)
0.033 F
1A
2A
3A
4A
6A
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
22
18
18
10
8
32
30
28
18
13
41
38
33
23
19
51
40
38
30
27
48
42
38
32
29
37
36
30
32
29
31
30
23
30
29
22
21
18
22
25
9
9
9
9
9
11
11
15
13
18
15
11
14
19
21
50
42
38
19
19
67
67
55
44
47
82
82
82
82
84
71
75
76
79
82
37
38
35
40
50
P
1M
E
0.033 F
LINE
E'
P'
L(mH)
Fuse
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
LOAD
Current
Rating
L
Value
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
.01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10 30
N
L(mH)
Fuse
N'
LOAD
30
N
L(mH)
Fuse
2200pF
N'
63
