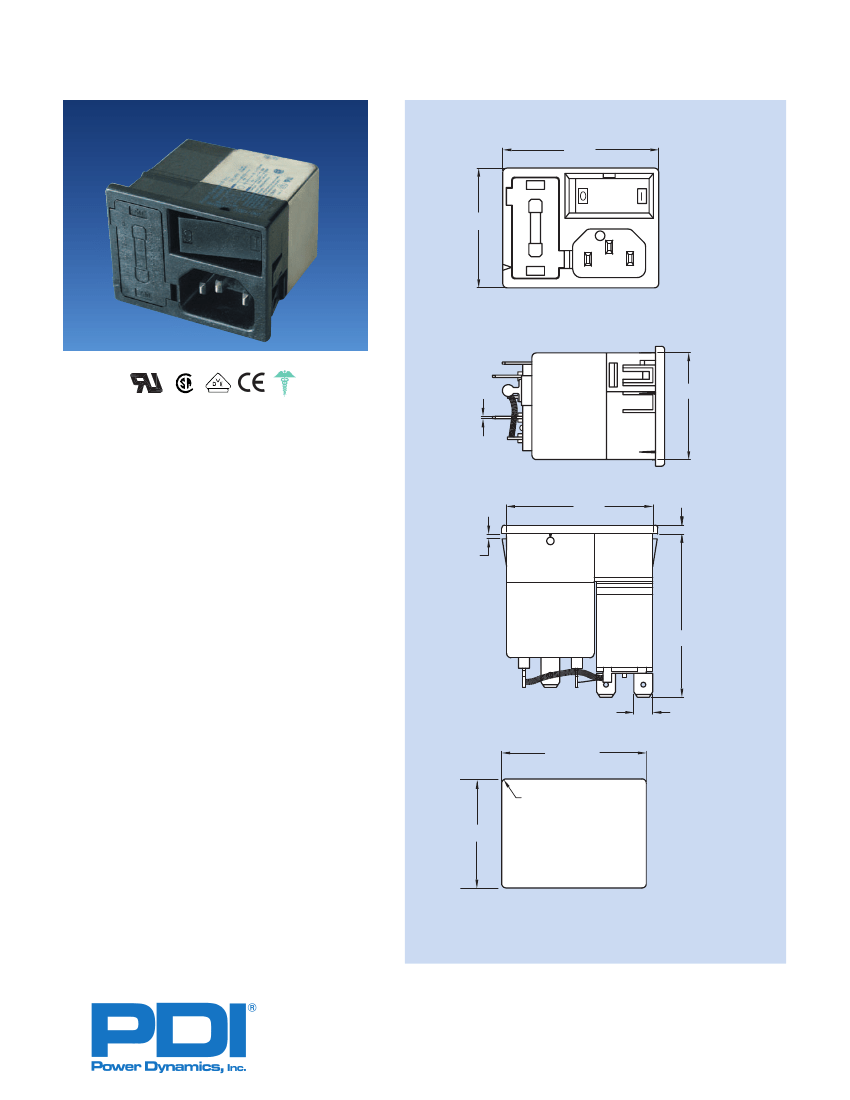

HGN-339
IEC 60320 INLET SOCKET WITH SWITCH, VOLTAGE SELECT AND A FUSE
HOLDER, SNAP-IN MOUNT
MECHANICAL DIMENSIONS
(Unit: mm)
52.0
110
40.0
220
36.0
FEATURES
The HGN-339 incorporates features such as 2-pole on/off
switch, IEC Connector, a fuse holder that accepts European
5 x 20mm or N. American 1/4” x 1 1/4” (3AG) fuse,
and a voltage selector (110V/220V). It is designed for use
in equipment intended for export enabling the fast change
to other voltages.
These filters are also available for Medical equipment with
low leakage current to comply with UL 544 & UL2601.
0.8 TYP.
49.0
3.0
**
A+0.2
APPLICATIONS
Computer & networking equipment, Measuring & control
equipment, Data processing equipment, laboratory instruments,
Switching power supplies, other electronic equipment.
55.0
TECHNICAL DATA
•
•
•
•
Rated Voltage: 125/250VAC
Rated Current: 1A, 2A, 3A, 4A, 6A
Power Line Frequency: 50/60Hz
Max. Leakage Current each
Line to Ground:
@ 250VAC 50Hz: 0.5mA, max
@ 250VAC 50Hz: 2
µ
A*, max
•
Hipot Rating (one minute)
Line to Ground: 2250VDC
Line to Line: 1450VDC
•
Temperature Range: -25C to +85C
6.3 TYP.
49.5 +0.2
4X R1.5
36.5+0.2
* Medical application
RECOMMENDED
PANEL CUTOUT
Specifications subject to change without notice. Dimensions (mm). See Appendix A for
recommended power cord. See PDI full line catalog for detailed specifications on power cords.
64
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
HGN-339 Series Example & Ordering Code
HGN-339
- 1
CURRENT RATING (A):
M -
F
- 150
=
=
=
=
=
STANDARD TYPE
WITHOUT C(Y); C(X) ONLY
1
2
3
4
6
=
BLANK
SCHEMATIC:
=M
TERMINAL:
QUICK CONNECT (6.3 x 0.8)
=F
PANEL THICKNESS*:
0.06 (1.5MM)
0.062 (1.6MM)
0.08 (2.0MM)
= 150
= 160
= 200
* More panel thickness options are available upon request
Attenuation Tables & Schematics
Non-Medical Applications
Insertion loss in dB (50 Ohm circuit)
Current
Rating
1A
2A
3A
4A
6A
L
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
Value .01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10
10.3mA 19 34 42 53 57 50 55 55 15 5 5 33 47 71 70
4.6mA 6 18 26 37 44 54 51 60 23 8 10 20 33 68 70
2.5mA 12 18 25 37 45 53 65 60 16 5 10 24 35 64 65
1.2mA 6 16 23 34 40 54 56 65 11 4 4 20 33 63 66
0.8mA 6 15 21 30 35 50 55 60 16 6 6 15 28 60 65
0.033 F
0.033 F
30
55
60
60
64
60
LINE
N
E
P
L(mH)
Fuse
2200pF
N'
E'
LOAD
LOAD
1M
2200pF
Fuse
220V
110V
P'
L(mH)
Medical Applications
Insertion loss in dB (50 Ohm circuit)
Current
Rating
1A
2A
3A
4A
6A
L
Value
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
.01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10 30
22
18
18
10
8
32
30
28
18
13
41
38
33
23
19
51
40
38
30
27
48
42
38
32
29
37
36
30
32
29
31
30
23
30
29
22
21
18
22
25
9
9
9
9
9
11
11
15
13
18
15
11
14
19
21
50
42
38
19
19
67
67
55
44
47
82
82
82
82
84
71
75
76
79
82
37
38
35
40
50
LINE
N
0.033 F
L(mH)
0.033 F
Fuse
N'
E'
1M
E
P
220V
Fuse
L(mH)
110V
P'
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
65
