HGN-341
IEC 60320 INLET SOCKET WITH SWITCH, VOLTAGE SELECT AND A
FUSE HOLDER, SNAP-IN MOUNT

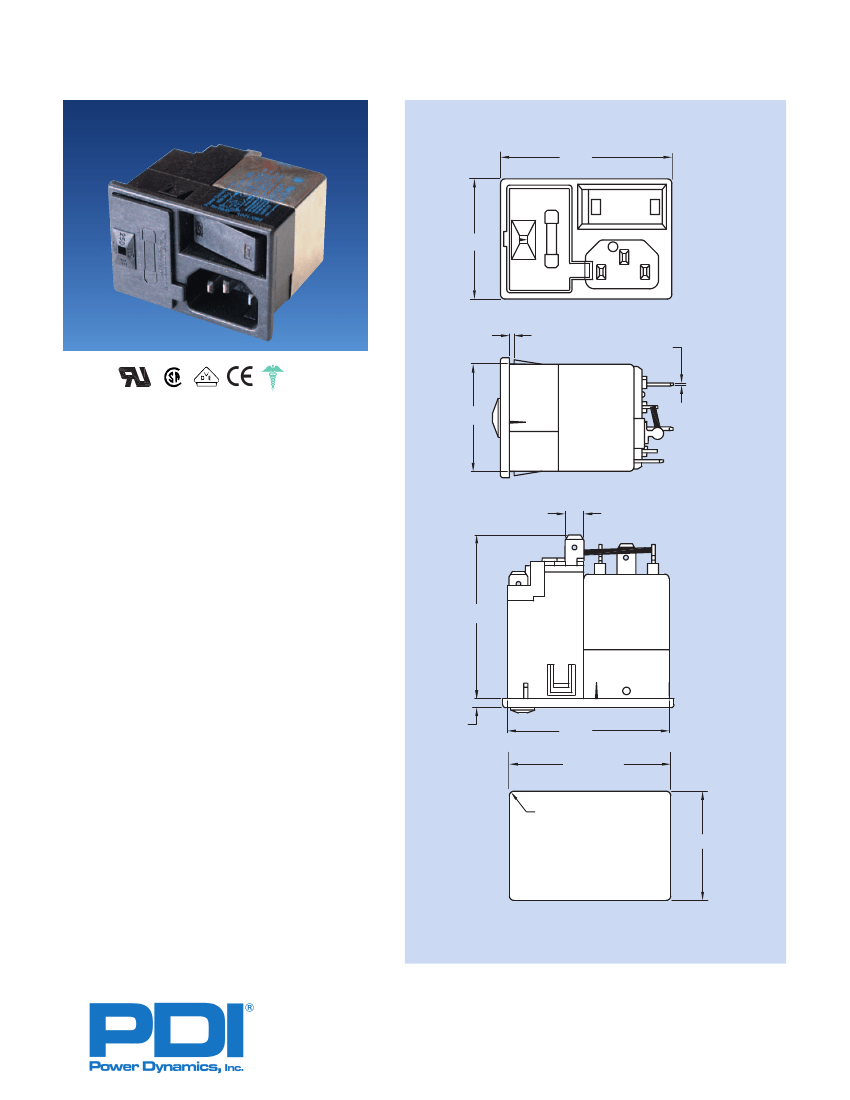

MECHANICAL DIMENSIONS
(Unit: mm)
57.0
240
40.0
110
120
220
A+0.2
0.8 TYP.
FEATURES
36.5
The HGN-341 power entry module features an IEC
Connector, 2-pole on/off switch, a fuse holder that accepts
both European 5 x 20mm or N. American 1/4” x 1 1/4”
(3AG) fuse, and a voltage selector with four different voltages
(110V, 120V, 220V, 240V). The voltage selector is
designed to provide a simple means to change transformer
primary connections.
These filters are also available for Medical equipment
with low leakage current to comply with UL 544 & UL2601.
6.3 TYP.
APPLICATIONS
55.0
Computer & networking equipment, Measuring & control
equipment, Data processing equipment, laboratory instruments,
Switching power supplies, other electronic equipment.
TECHNICAL DATA
•
Rated Voltage: 125/250VAC
•
Rated Current: 1A, 2A, 3A, 4A, 6A,
•
Power Line Frequency: 50/60Hz
•
Max. Leakage Current each
Line to Ground:
@ 250VAC 50Hz: 0.5mA, max
@ 250VAC 50Hz: 2
µ
A*, max
•
Hipot Rating (one minute)
Line to Ground: 2250VDC
Line to Line: 1450VDC
•
Temperature Range: -25C to +85C
* Medical application
3.00
54.0
54.5
+0.2
4x R1.5
37.0
+0.2
RECOMMENDED
PANEL CUTOUT
Specifications subject to change without notice. Dimensions (mm). See Appendix A for
recommended power cord. See PDI full line catalog for detailed specifications on power cords.
66
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
HGN-341 Series Example & Ordering Code
HGN-341
- 1
CURRENT RATING (A):
M - F1 - 150
=
=
=
=
=
STANDARD TYPE
1
2
3
4
6
=
BLANK
SCHEMATIC:
WITHOUT C(Y); C(X) ONLY
=M
TERMINAL:
QUICK CONNECT (6.3 x 0.8)
= F1
PANEL THICKNESS*:
0.06 (1.5MM)
0.062 (1.6MM)
0.08 (2.0MM)
= 150
= 160
= 200
* More panel thickness options are available upon request
Attenuation Tables & Schematics
Non-Medical Applications
Insertion loss in dB (50 Ohm circuit)
L
Value
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
Current
Rating .01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10 30
1A
2A
3A
4A
6A
19
11
5
2
2
30
25
20
14
10
40
35
30
21
19
57
49
41
35
30
50
49
49
40
34
50
50
54
50
45
64
65
60
65
55
29
30
34
32
35
9
10
9
9
9
14
15
14
14
12
14
16
19
20
19
45
40
33
20
19
65
60
54
45
40
70
70
70
70
70
60
60
60
60
60
29
30
33
32
35
LINE
N
0.033 F
1M
L mH
2200pF
F
FUSE
a
LOAD
b c
e
E
P
0.033
E'
2200pF
FUSE
d
1
2
3
4
5
6
110V
110V
18V
L mH
Medical Applications
Insertion loss in dB (50 Ohm circuit)
0.033 F
0.033 F
1A
2A
3A
4A
6A
10.3mA
4.6mA
2.5mA
1.2mA
0.8mA
22
18
18
10
8
32
30
28
18
13
41
38
33
23
19
51
40
38
30
27
48
42
38
32
29
37
36
30
32
29
31
30
23
30
29
22
21
18
22
25
9
9
9
9
9
11
11
15
13
18
15
11
14
19
21
50
42
38
19
19
67 82
67 82
55 82
44 82
47 84
71
75
76
79
82
37
38
35
40
50
1M
E
P
E'
110V
18V
d
e
L mH
5
6
FUSE
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
LOAD
Current
Rating
L
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
Value .01 .05 .15 .5 1 5 10 30 .01.05 .15 .5 1 5 10 30
LINE
N
L mH
FUSE
a
b c
1
2
3
4
110V
67
