HGN-368

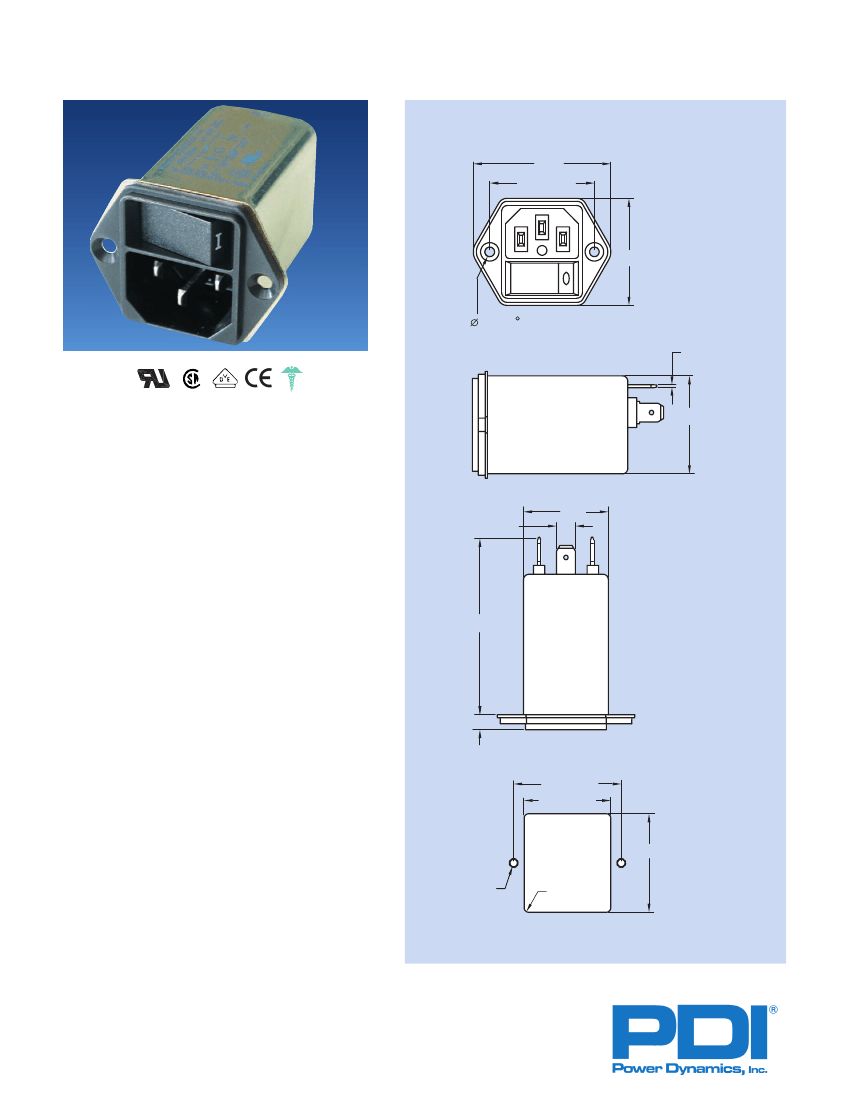

IEC 60320 INLET SOCKET WITH SWITCH, FLANGE MOUNT
MECHANICAL DIMENSIONS
(Unit: mm)
46.0
-
36.0+ 0.2
35.0
2x
3.3x90 CSK
0.8 TYP.
FEATURES
32.5
The HGN-368 series power entry module features an IEC
Connector with an integral switch. The filter is designed to for
applications where Common Mode and Differential Mode
noise must be controlled. Fully enclosed metal housing pre-
vents input of high frequency noise and protects ultra-sensitive
equipment.
These filters are also available for Medical equipment with
low leakage current to comply with UL544 & 2601.
28.0
6.3 TYP.
APPLICATIONS
Computer & networking equipment, Measuring & control
equipment, Data processing equipment, laboratory instruments,
Switching power supplies, other electronic equipment.
58.5
TECHNICAL DATA
•
Rated Voltage: 115/250VAC
•
Rated Current: 1A, 2A, 4A, 6A,
•
Power Line Frequency: 50/60Hz
•
Max. Leakage Current each
Line to Ground:
@ 250VAC 50Hz: 0.5mA, max
@ 250VAC 50Hz: 2
µ
A*, max
•
Hipot Rating (one minute)
Line to Ground: 2250VDC
Line to Line: 1450VDC
•
Temperature Range: -25C to +85C
* Medical application
6.0
-
36.0+ 0.2
-
29.0 + 0.3
-
33.0+ 0.3
2x M3
4x R1.5
Specifications subject to change without notice. Dimensions (mm). See Appendix A for
recommended power cord. See PDI full line catalog for detailed specifications on power cords.
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
75
HGN-368 Series Example & Ordering Code
HGN-368
- 1
CURRENT RATING (A):
M - F1
=
=
=
=
1
2
4
6
=
SCHEMATIC:
STANDARD TYPE
WITHOUT C(Y); C(X) ONLY
BLANK
=M
TERMINAL:
QUICK CONNECT (6.3 x 0.8)
SOLDER
= F1
= F2
Attenuation Tables & Schematics
Non-Medical Applications
Insertion loss in dB (50 Ohm circuit)
0.068 F
LOAD
Current
L
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
Rating Value .01 .05 .1 .15 .5 1 5 10 30 .01 .05 .1 .15 .5 1 5 10 30
1A
2A
4A
6A
10.3mA
4.6mA
1.2mA
0.8mA
11
12
3
4
21
24
10
10
29
30
19
18
32
35
21
20
49
50
32
30
60 58
58 58
40 60
35 49
70
70
50
60
30 2
40 3
38 2
33 10
5
8
5
12
6
10
9
15
5
10
11
13
43
35
9
9
67
60
40
40
82
83
81
75
70
78
73
75
39
38
39
60
LINE
L(mH)
N
1M
E
P
2200pF
2200pF
P'
L(mH)
N'
E'
Insertion loss in dB (50 Ohm circuit)
Medical Applications
Current
Rating
1A
2A
4A
6A
0.068 F
10.3mA
4.6mA
1.2mA
0.8mA
23
18
10
8
32
30
17
13
38
35
20
17
41
36
22
19
51
41
30
26
47 36
42 37
33 33
28 29
31
30
30
29
22
21
22
24
3 5
2 5
5 8
8 13
5
5
8
11
4 50 69 81 74
8 48 69 82 73
7 9 48 82 78
8 9 41 83 80
34
35
45
62
P
1M
E
E'
P'
L(mH)
76
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
LOAD
L
Value
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
.01 .05 .1 .15 .5 1 5 10 30 .01 .05 .1 .15 .5 1 5 10 30
LINE
L(mH)
N
N'
