CIC43P471AE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> CIC43P471AE

CIC43P471AE: DescriptionData Line Filter, 1 Function(s), 2A, EIA STD PACKAGE SIZE 1812, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size931KB，10 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CIC43P471AE Overview

Data Line Filter, 1 Function(s), 2A, EIA STD PACKAGE SIZE 1812, 2 PIN

CIC43P471AE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMSUNG
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	0.05 Ω
filter type	DATA LINE FILTER
high	1.5 mm
length	4.5 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	470 OHM Ω
method of packing	TAPE AND REEL
physical size	L4.5XB3.2XH1.5 (mm)/L0.177XB0.126XH0.059 (inch)
Rated current	2 A
width	3.2 mm

Preview

Download Datasheet

View All

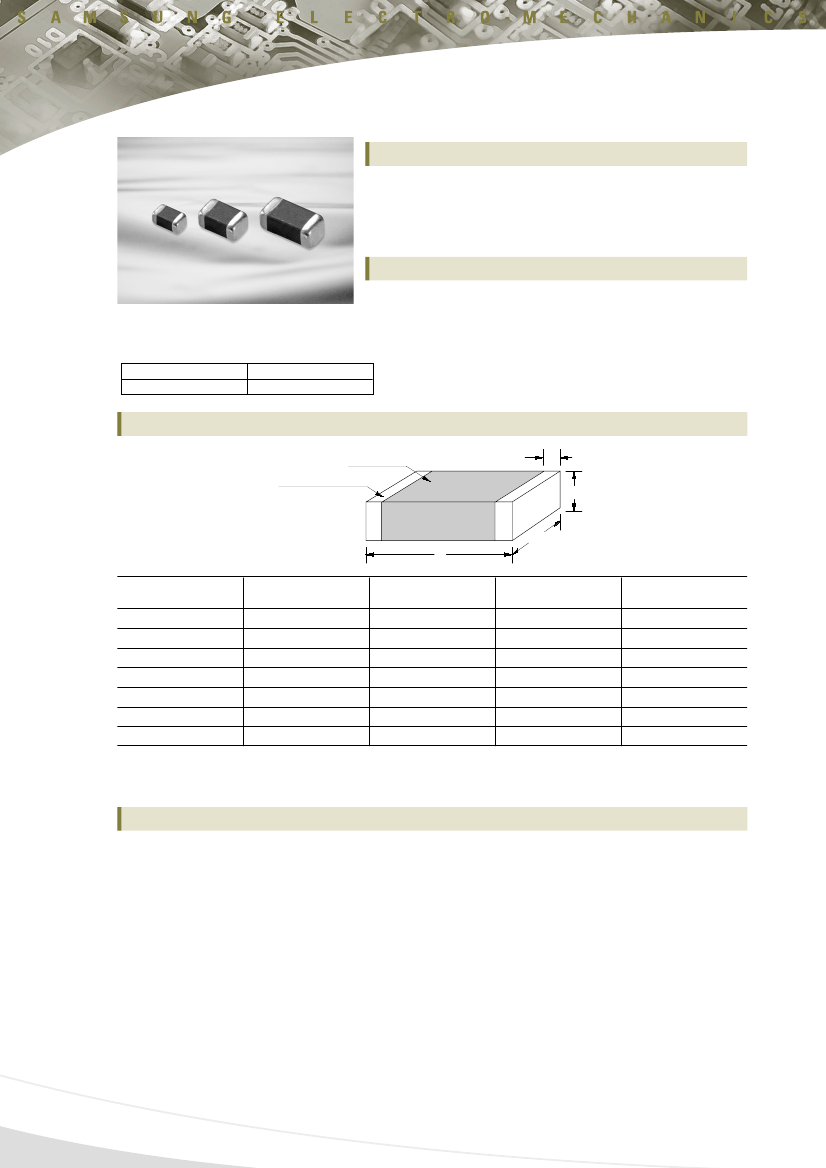

Chip Bead ; CIC/CIS Series

For High Current

Feature

•The

smallest beads used for high current.

(CIC: ~3A, CIS: ~6A)

Application

•Suppression

of noise in power line

The CIC/CIS Series can be used in high current owing to their low DC resistance.

They can match power lines to a maximum of 6A DC.

Operating Temp

Storage Temp

-55~+125

℃

-10~+40

℃

Dimensions

Ferrite Body

External Electrode

Unit : mm

SIZE CODE

1.0±0.05

1.6±0.15

2.0±0.2

3.2±0.2

4.5±0.2

0.5±0.05

0.8

±0.15

1.25±0.2

1.6±0.2

2.5±0.2

1.6±0.2

3.2±0.2

0.5±0.05

0.8±0.15

0.9±0.2

1.1±0.2

1.3±0.2

1.6±0.2 / 1.2±0.2

1.5±0.2

0.25±0.1

0.3±0.2

0.5+0.2,-0.3

0.5±0.3

Part Numbering

(1)

(2)

(3)

(4)

300

(5)

(6)

(7)

(1) Chip Beads

(2) C: For high current ~3A, S: Ultra high current ~6A

(3) Dimension

(4) Material Code(J, P)

(5) Nominal impedance(310: 31Ω, 121: 120Ω)

(6) Thickness option(N: Standard, A: Thinner than standard, B: Thicker than standard)

(7) Packaging(C: paper tape, E: embossed tape)
