DESCRIPTION
INITIAL RELEASE
ECN# 2641; REVISED FORMAT & TOLERANCE
2
REVISIONS
1
DATE
12/18/02
12/04/06
APPROVED
MCCORMICK
MCCORMICK
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
LENGTH
2X CABLE MARKER
MTRJ MULTIMODE
CONNECTOR (NO
ALIGNMENT PINS)
D
C
62.5/125 DUPLEX LOW SMOKE ZERO HALOGEN
COLOR: SLATE
C
2X LC STYLE
CONNECTOR
B
B
PART #
FODZMT-LC-01
FODZMT-LC-02
FODZMT-LC-03
FODZMT-LC-04
FODZMT-LC-05
A
LENGTH
FEET [METERS]
3.28 [1.0]
6.56 [2.0]
9.84 [3.0]
13.12 [4.0]
16.40 [5.0]
DIMENSIONS ARE IN INCHES [mm]
UNLESS OTHERWISE SPECIFIED,
TOLERANCES TO BE:
.X .1 [2.5]
ANGLES 2
.XX .05 [1.3]
.XXX .005 [.13]
OVERALL CABLE LENGTH TOL:
≤
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
APPROVALS
DRAWN BY
C.MCCORMICK
CHECKED BY
D.PARHAM
APPROVED BY
R.CARRICK
12/03/2002
SIZE
12/03/2002
DATE
CATEGORY
12/03/2002

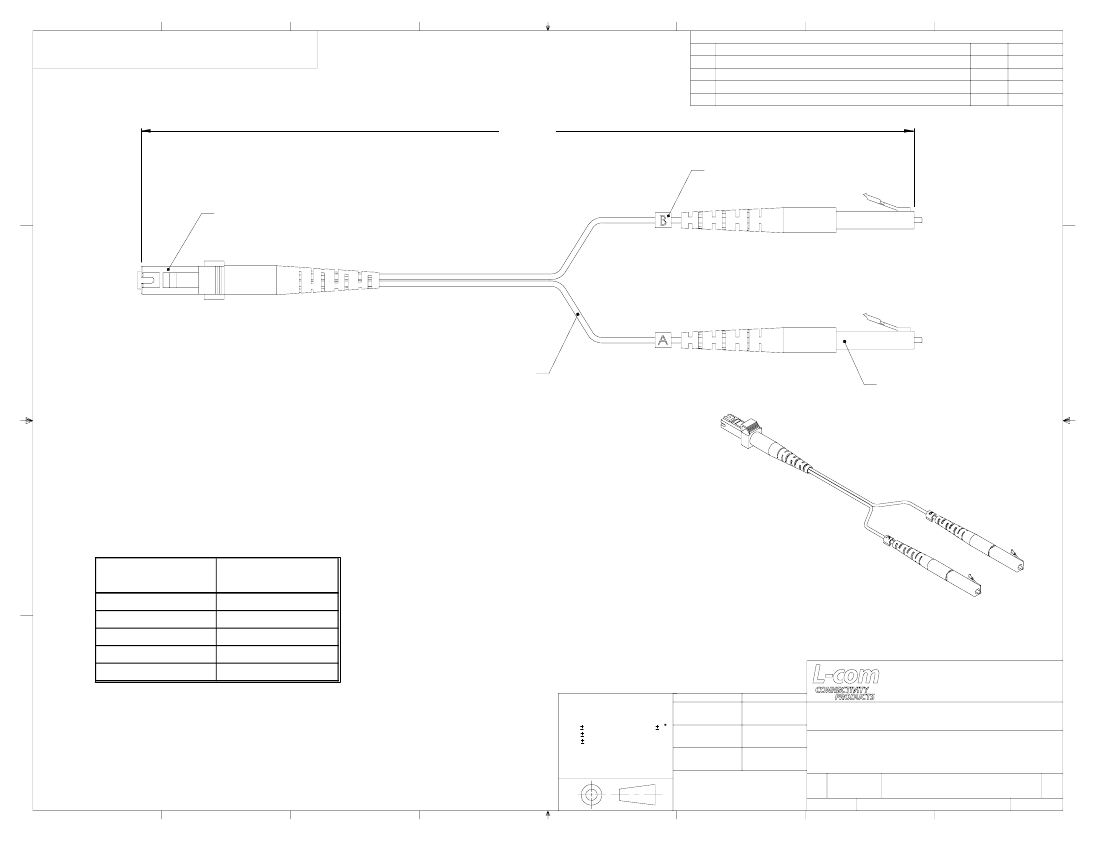

OUTLINE DRAWING
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
NOTES:
1. CONNECTOR ASSEMBLY USES A PC POLISH.
2. ALL CONNECTORS ACCOMPANIED WITH A DUST
CAP (NOT SHOWN).
FIBER OPTIC
A
PRODUCT DESCRIPTION
62.5/125 MTRJ LC LSZH CABLE ASSY
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
A
43321
2
FSCM NO.
DWG. NO.
FODZMT-LC-01-OD1
1
REV.
SCALE: NONE CAD FILE:
FODZMT-LC-01-OD1.SLDDRW
B
SHEET 1 OF 1
