42R07-3121-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 42R07-3121-200

42R07-3121-200: Description16/20A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

42R07-3121-200 Overview

16/20A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER

42R07-3121-200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	1 GROUND CONTACT ALSO AVAILABLE, STANDARDS: IEC 60320, UL 94V-0, CSA, VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	Nickel (Ni)
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	16/20A, 250VAC
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

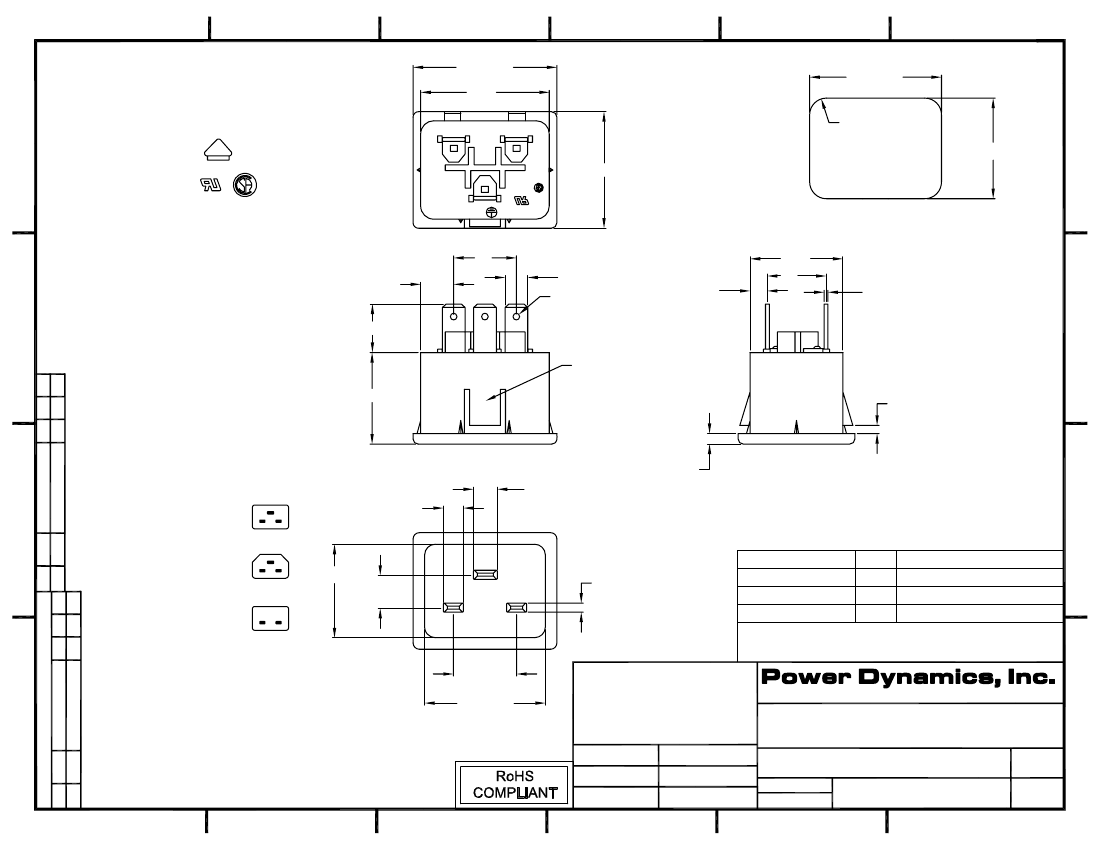

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

36.0±0.2

32.4

33.0+0.2

R4.5+0.2 TYP.

25.0+0.2

28.0±0.2

6.3

Ø1.65

ORDERING CODE:

42R07-3 __ 2 __ - __ __ __

10.0±0.5

REPLACE WITH

CORRESPONDING

PANEL THICKNESS

2 POLE ORDERING CODE WAS 4

CHG REF DIM TO DIM

2) ELECTRICAL CIRCUIT

CONFIGURATION

6.0±0.1

1 = 20A 250V 70°C

2+GROUND

2 = 20A 250V 155°C

2+GROUND

5.0±0.1

12/2/04

8/3/07

CHNG CHCK APPR

21.0+0.5

8.0±0.2

3 = 20A 250V 70°C

2 POLE

3) PANEL THICKNESS

13.0±0.2

29.0+0.5

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

11/24/04 ADD 13.0, 9.7, 13.6, 5.0 DIM

REVISIONS

CHANGE

DATE

REV

X.X

1) COLOR

1 = BLACK

2 = GRAY

42R07

ELECTRICAL SPECIFICATIONS:

Current rating: 16 A

D E

Voltage rating: 250 VAC

Current rating: 20 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

RECOMMENDED

PANEL CUTOUT

24.4

0.80

A+0.2

3.0

3X 2.00±0.05

P/N

MAX. PANEL THICKNESS

1.5

42R07-3X2X-150 1.5

2.0

42R07-3X2X-200 2.0

2.5

42R07-3X2X-250 2.5

ADDITIONAL PANEL THICKNESS

AVAILABLE ON REQUEST

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: 16/20A IEC 60320 APPL. INLET; QC

TERMINALS; SNAP-IN, PANEL MOUNT

PART #:

DRAWN

CHECK

APPR

DATE:

08/24/01

08/29/01

SIZE:

SCALE:

42R07-3X2X-XXX

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:
