Part Number

Search

42R31-3211-200

Description
10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW
CategoryThe connector    The connector
File Size38KB,1 Pages
ManufacturerPower Dynamics, Inc.
Websitehttp://www.powerdynamics.com/
Environmental Compliance
Download Datasheet Parametric View All

42R31-3211-200 Overview

10A, 250VAC, MALE, MAINS POWER CONNECTOR, SCREW

42R31-3211-200 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPower Dynamics, Inc.
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Other featuresSTANDARDS: IEC 60320, CSA, UL 94V-0, VDE
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNICKEL
Contact completed and terminatedNickel (Ni)
Contact point genderMALE
Contact materialBRASS
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
MIL complianceNO
Power Connector Ratings10A, 250VAC
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialPOLYCARBONATE
Termination typeSCREW
Total number of contacts3
Base Number Matches1
6
5
4
3
2
1
MATERIAL AND FINISH:
Insulator: Polycarbonate, UL-94V-0 rated
Contacts: Brass, Nickel plated
D
30.5±0.2
27.0
L
C
ORDERING CODE:
42R31-3 __ 1 __ - __ __ __
1
2
3
10.0±0.5
1) COLOR
1 = BLACK
2 = GRAY
2) ELECTRICAL CIRCUIT
CONFIGURATION
1 = 10A 250V 70°C
2+GROUND
19
3X 2 2.00±0.05
B
2 = 10A 250V 120°C
2+GROUND
4 = 10A 250V 70°C
2 POLE
CHNG CHCK APPR
3X 4.0±0.1
3) PANEL THICKNESS
14.0±0.2
24.0+0.5
REVISIONS
CHANGE
A
DATE
REV
RoHS
COMPLIANT
6
5
4
N
E
42R31
ELECTRICAL SPECIFICATIONS:
Current rating: 10 A
Voltage rating: 250 VAC
Insulation resistance: 100 Mohm min. at
500 VDC
Dielectric withstanding voltage: 2000 VAC
for one minute
V
D E
31.5+0.2
D
34.0±0.2
27.5+0.2
RECOMMENDED
PANEL CUTOUT
M3x6.0mm
SCREW TERMINALS
31.0
C
3.00
A+0.2
+0.5
4.00 16.0
P/N
A
42R31-3X1X-150 1.5
1.5
42R31-3X1X-200 2.0
2.0
2.5
42R31-3X1X-250 2.5
ADDITIONAL PANEL THICKNESS
AVAILABLE ON REQUEST
TOLERANCE
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
B
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076

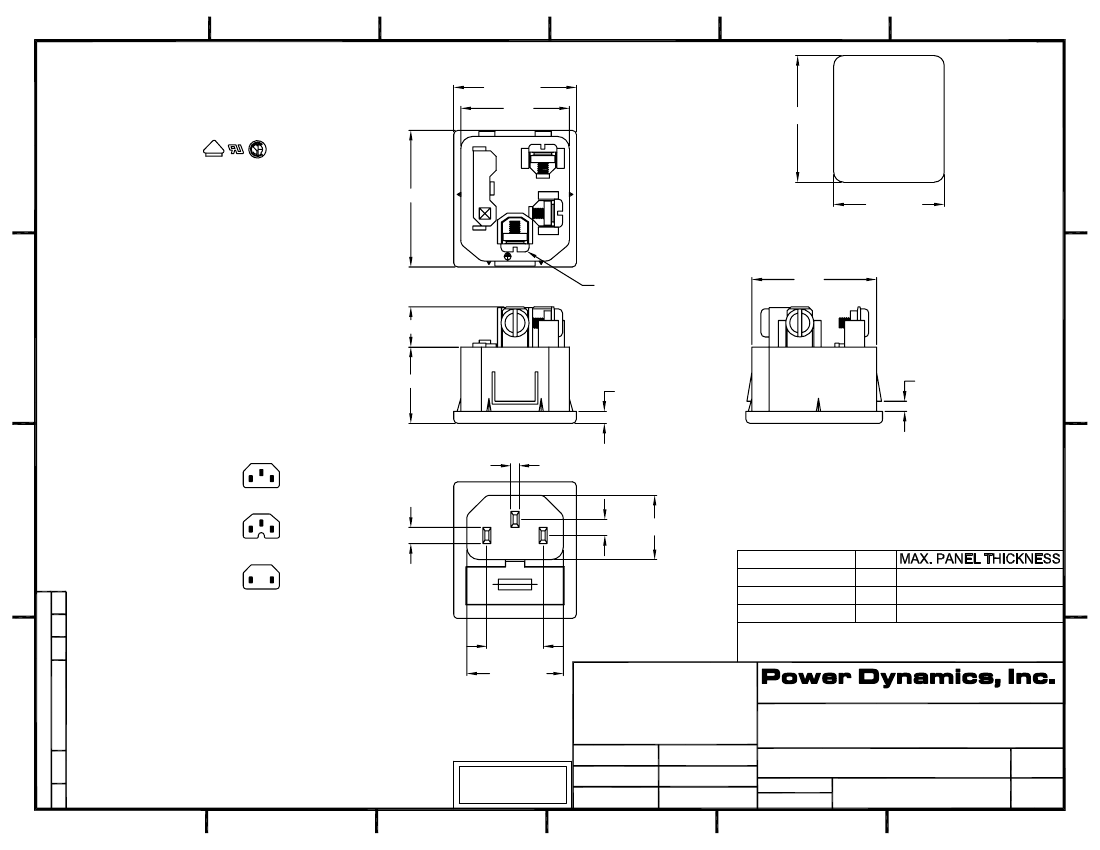

PART: IEC 60320 SINGLE FUSE HOLDER APPL. INLET;
SCREW TERMINALS; SNAP-IN
A
DRAWN
BY
CHECK
BY
APPR
BY
GQ
TD
PB
DATE:
DATE:
DATE:
08/30/01
09/06/01
09/06/01
PART #:
42R31-3X1X-XXX
A
NTS
ALL DIMENSIONS FOR REFERENCE ONLY
DIMENSIONS ARE IN MILLIMETERS
SHEET
1 of 1
REV:
SIZE:
SCALE:
3
2
1
