42R32-3121-200: Description10A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size33KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

42R32-3121-200 Overview

10A, 250VAC, MALE, MAINS POWER CONNECTOR, SOLDER

42R32-3121-200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC 60320, CSA, UL 94V-0, VDE; QUICK CONNECT
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	42R32-3
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

6

5

4

3

2

1

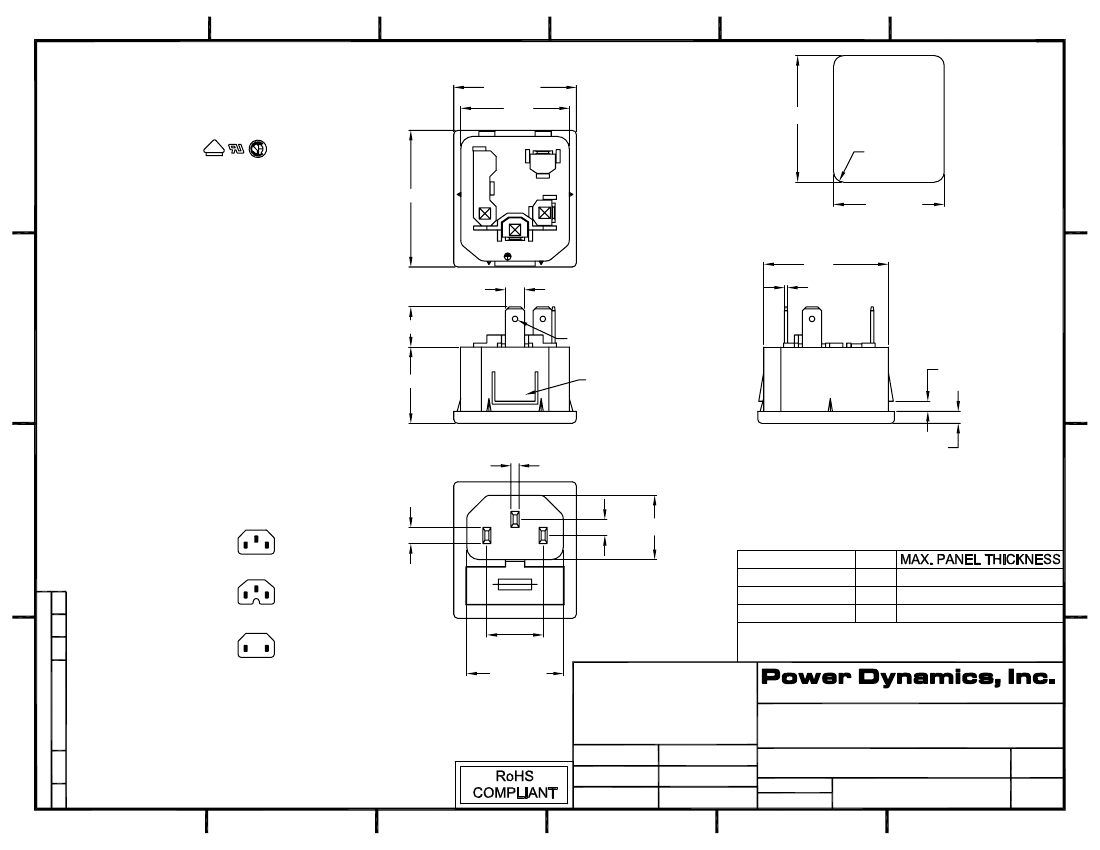

MATERIAL AND FINISH:

Insulator: Polycarbonate, UL-94V-0 rated

Contacts: Brass, Nickel plated

D

30.5±0.2

27.0

L

C

ORDERING CODE:

42R32-3 __ __ __ - __ __ __

1 2 3

4

10.0±0.5

1) COLOR

1 = BLACK

2 = GRAY

2) TERMINAL OPTIONS

1 = .187(4.8)

2 = .250(6.3)

3) ELECTRICAL CIRCUIT

CONFIGURATION

SEE OPTION 2

B

1 = 10A 250V 70°C

2+GROUND

2 = 10A 250V 120°C

2+GROUND

4 = 10A 250V 70°C

2 POLE

4) PANEL THICKNESS

3X 4.0±0.1

CHNG CHCK APPR

REVISIONS

14.0±0.2

24.0+0.5

CHANGE

A

DATE

REV

6

5

4

X.X

19

3X 2 2.00±0.05

N

E

42R32

ELECTRICAL SPECIFICATIONS:

Current rating: 10 A

Voltage rating: 250 VAC

Insulation resistance: 100 Mohm min. at

500 VDC

Dielectric withstanding voltage: 2000 VAC

for one minute

V

D E

31.5+0.2

D

4X R2.5

34.0±0.2

27.5+0.2

RECOMMENDED

PANEL CUTOUT

31.0

0.80 TYP.

C

Ø1.65 TYP.

REPLACE WITH

CORRESPONDING

PANEL THICKNESS

A+0.2

3.00

+0.5

4.00 16.0

P/N

A

42R32-3XXX-150 1.5

1.5

42R32-3XXX-200 2.0

2.0

2.5

42R32-3XXX-250 2.5

ADDITIONAL PANEL THICKNESS

AVAILABLE ON REQUEST

TOLERANCE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.20

B

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: IEC 60320 SINGLE FUSE HOLDER APPL. INLET;

QUICK CONNECT TERMINALS; SNAP-IN

A

DRAWN

BY

CHECK

BY

APPR

BY

GQ

TD

PB

DATE:

09/09/01

PART #:

42R32-3XXX-XXX

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

SIZE:

SCALE:

3

2

1
